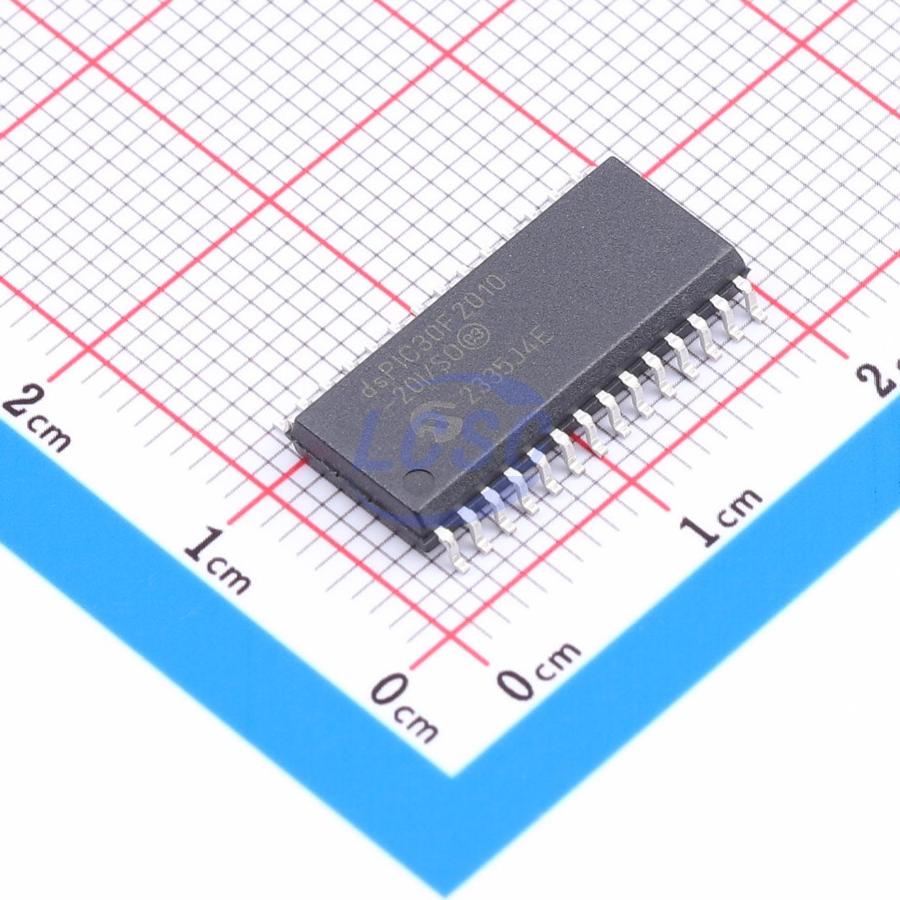

dsPIC30F2010-20I/SO

Key features

• Modified Harvard architecture
• C compiler optimized instruction set architecture
• 83 base instructions with flexible addressing modes
• 24-bit wide instructions, 16-bit wide data path
• 12 Kbytes on-chip Flash program space
• 512 bytes on-chip data RAM
• 1 Kbyte nonvolatile data EEPROM
• 16 x 16-bit working register array
• Up to 30 MIPs operation: DC to 40 MHz external clock input; 4 MHz - 10 MHz oscillator input with PLL active (4x, 8x, 16x)
• 27 interrupt sources
• Three external interrupt sources
• Eight user-selectable priority levels for each interrupt
• Four processor exceptions and software traps
• Modulo and Bit-Reversed modes
• Two 40-bit wide accumulators with optional saturation logic
• 17-bit x 17-bit single-cycle hardware fractional/integer multiplier
• Single-cycle Multiply-Accumulate (MAC) operation
• 40-stage Barrel Shifter
• Dual data fetch
• High current sink/source I/O pins: 25 mA/25 mA
• Three 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules
• Four 16-bit capture input functions
• Two 16-bit compare/PWM output functions - Dual Compare mode available
• 3-wire SPI modules (support
