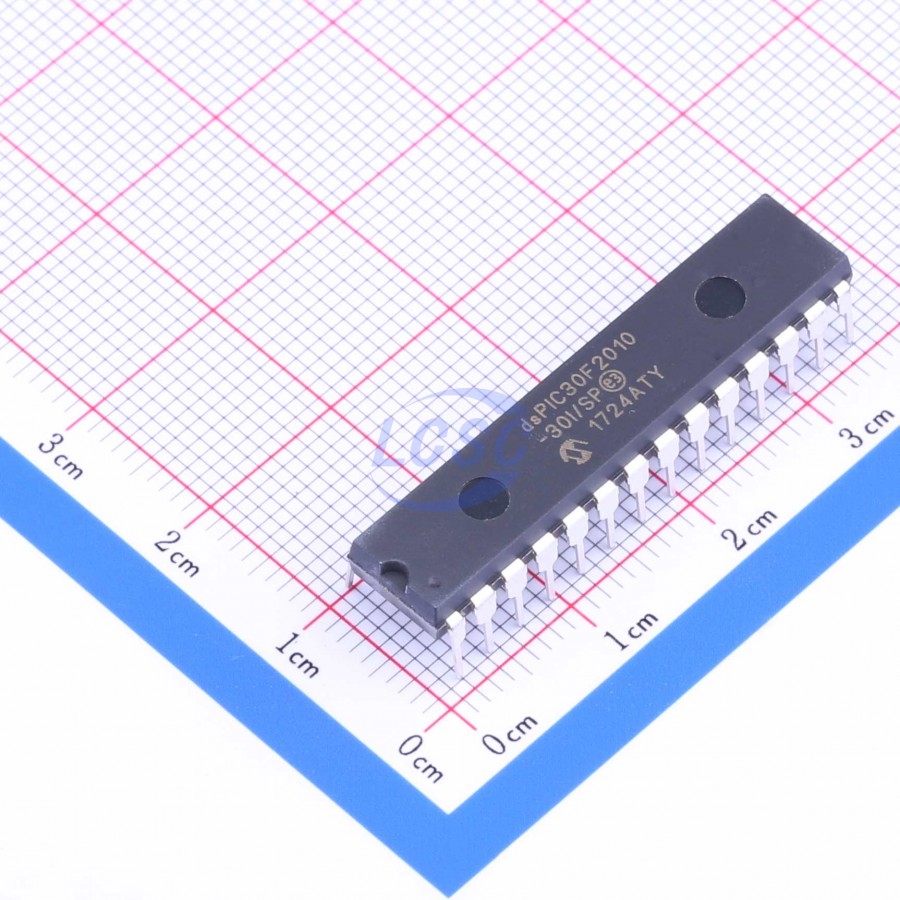

DSPIC30F2010-30I/SP

Key features

• Modified Harvard architecture
• C compiler optimized instruction set architecture
• 83 base instructions with flexible addressing modes
• 24-bit wide instructions, 16-bit wide data path
• 12 Kbytes on-chip Flash program space
• 512 bytes on-chip data RAM
• 1 Kbyte nonvolatile data EEPROM
• 16 x 16-bit working register array
• Up to 30 MIPs operation: - DC to 40 MHz external clock input - 4 MHz - 10 MHz oscillator input with PLL active (4x, 8x, 16x)
• 27 interrupt sources
• Three external interrupt sources
• 8 user-selectable priority levels for each interrupt
• 4 processor exceptions and software traps
• Modulo and Bit-Reversed modes
• Two 40-bit wide accumulators with optional saturation logic
• 17-bit x 17-bit single-cycle hardware fractional/integer multiplier
• Single-cycle Multiply-Accumulate (MAC) operation
• 40-stage Barrel Shifter
• Dual data fetch
• High current sink/source I/O pins: 25 mA/25 mA
• Three 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules
• Four 16-bit capture input functions
• Two 16-bit compare/PWM output functions - Dual Compare mode available
• 3-wire SPI modules (supports 4 Frame modes)
• I²C module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
• Addressable UART modules with FIFO buffers
• 6 PWM output channels - Complementary or Independent Output modes - Edge and Center-Aligned modes
• 4 duty cycle generators
• Dedicated time base with 4 modes
• Programmable output polarity
• Dead-time control for Complementary mode
• Manual output control
• Trigger for synchronized A/D conversions
• Phase A, Phase B and Index Pulse input
• 16-bit up/down position counter
• Count direction status
• Position Measurement (x2 and x4) mode
• Programmable digital noise filters on inputs
• Alternate 16-bit Timer/Counter mode
• Interrupt on position counter rollover/underflow
• 10-bit Analog-to-Digital Converter (ADC) with: - 1 Msps (for 10-bit A/D) conversion rate - Six input channels - Conversion available during Sleep and Idle
• Programmable Brown-out Reset
• Enhanced Flash program memory: - 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)
• Data EEPROM memory: - 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical)
• Self-reprogrammable under software control
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Flexible Watchdog Timer (WDT) with on-chip lowpower RC oscillator for reliable operation
• Fail-Safe clock monitor operation
• Detects clock failure and switches to on-chip lowpower RC oscillator
• Programmable code protection
• In-Circuit Serial Programming (ICSP) programming capability
• Selectable Power Management modes - Sleep, Idle and Alternate Clock modes
