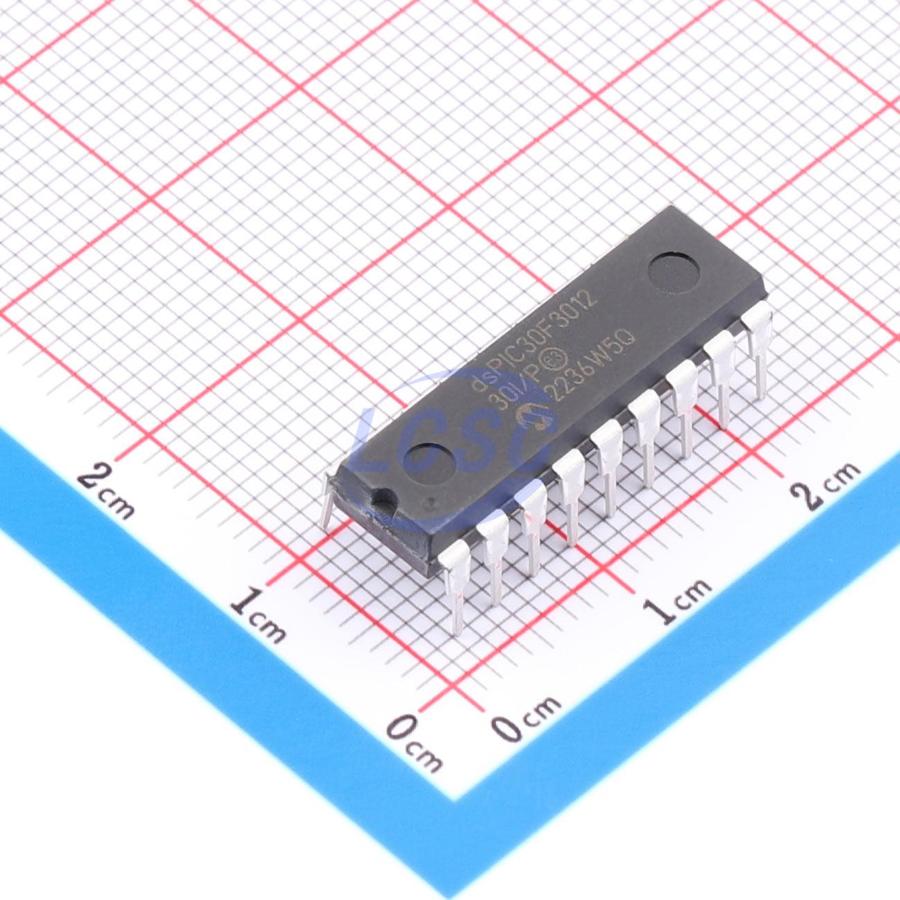

dsPIC30F3012-30I/P

120MHz PDIP-18-300mil Microcontrollers RoHS

PDIP-18-300milROHS3 CompliantActive

16-bit Digital Signal Controllers

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C613479

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,411.68	₹1,411.68
10+	₹1,365.51	₹13,655.10

Quantity (min 1)

1 × ₹1,411.68

₹1,411.68

excl. GST

₹1,665.78 incl. 18% GST

dsPIC30F3012-30I/P

₹1,411.68 for 1 + GST

Specifications

Modified Harvard architecture
C compiler optimized instruction set architecture
Flexible addressing modes
83 base instructions
24-bit wide instructions, 16-bit wide data path
Up to 24 Kbytes on-chip Flash program space
Up to 2 Kbytes of on-chip data RAM
Up to 1 Kbyte of nonvolatile data EEPROM
16 x 16-bit working register array
Up to 30 MIPS operation: DC to 40 MHz external clock input; 4 MHz - 10 MHz oscillator input with PLL active (4x, 8x, 16x)
Up to 21 interrupt sources: 8 user-selectable priority levels; 3 external interrupt sources; 4 processor trap sources
Dual data fetch
Modulo and Bit-Reversed modes
Two 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single-cycle hardware fractional/ integer multiplier
All DSP instructions are single cycle - Multiply-Accumulate (MAC) operation
Single-cycle ±16 shift
High-current sink/source I/O pins: 25 mA/25 mA
Three 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules
16-bit Capture input functions
16-bit Compare/PWM output functions
3-wire SPI modules
