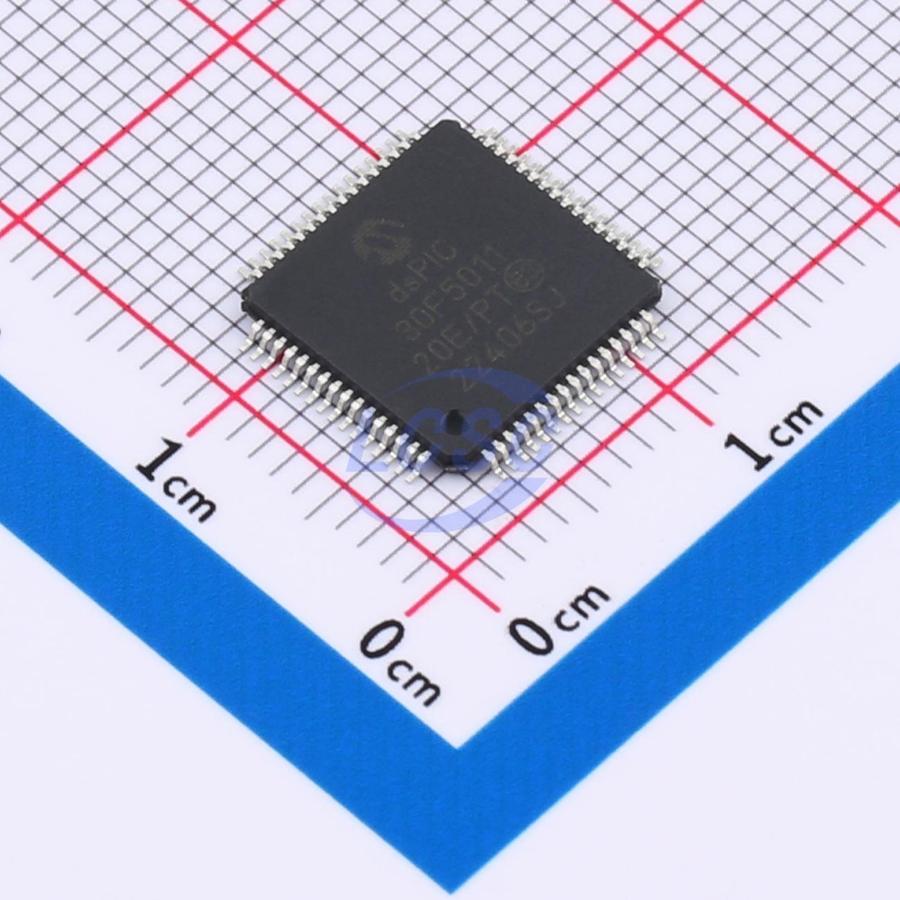

DSPIC30F5011-20E/PT

40MHz TQFP-64(10x10) Microcontrollers RoHS

TQFP-64(10x10)ROHS3 CompliantActive

16-bit Digital Signal Controllers

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C1339890

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹2,110.17	₹2,110.17

Quantity (min 1)

1 × ₹2,110.17

₹2,110.17

excl. GST

₹2,490.00 incl. 18% GST

DSPIC30F5011-20E/PT

₹2,110.17 for 1 + GST

Specifications

Modified Harvard architecture
C compiler optimized instruction set architecture
Flexible addressing modes
83 base instructions
24-bit wide instructions, 16-bit wide data path
66 Kbytes on-chip Flash program space
4 Kbytes of on-chip data RAM
1 Kbyte of nonvolatile data EEPROM
16 x 16-bit working register array
Up to 30 MIPS operation: DC to 40 MHz external clock input; 4 MHz - 10 MHz oscillator input with PLL active (4x, 8x, 16x)
Up to 41 interrupt sources: Eight user selectable priority levels; Five external interrupt sources; Four processor traps
Dual data fetch
Modulo and Bit-Reversed modes
Two 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single cycle hardware fractional/integer multiplier
All DSP instructions are single cycle - Multiply-Accumulate (MAC) operation
Single cycle ±16 shift
High-current sink/source I/O pins: 25 mA/25 mA
Five 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules
16-bit Capture input functions
16-bit Compare/PWM output function
