MICROCHIP

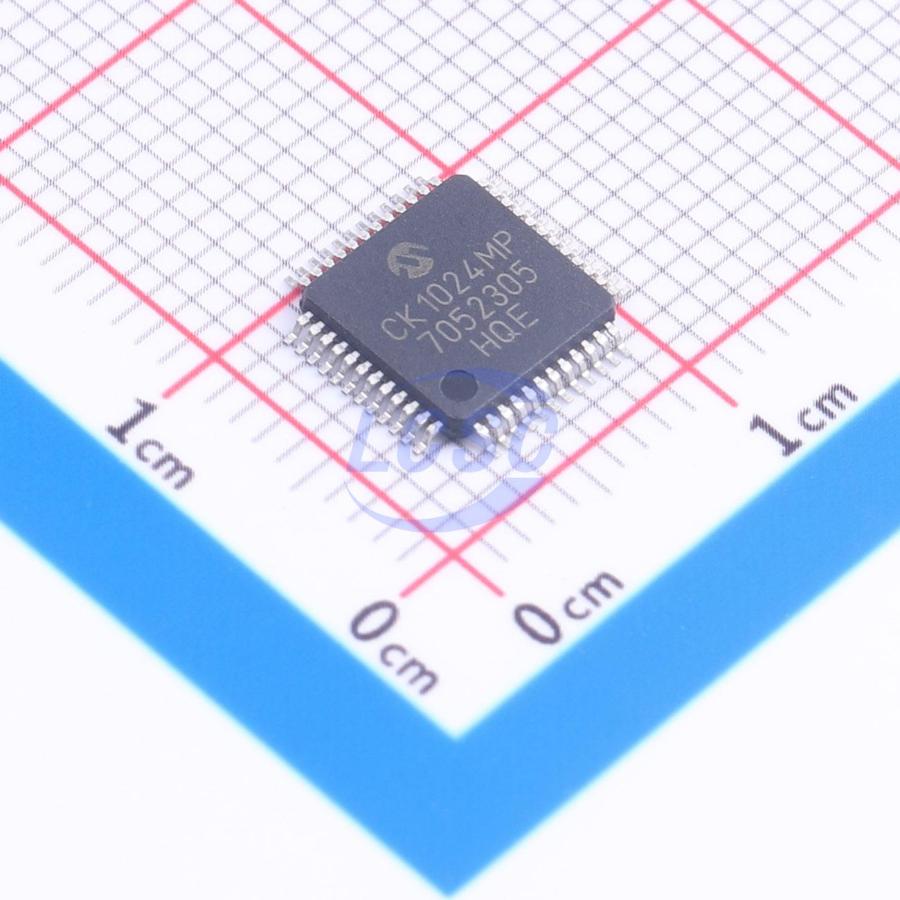

DSPIC33CK1024MP705-E/PT

TQFP-48(7x7) Microcontrollers RoHS

TQFP-48(7x7)ROHS3 CompliantActive

High-Performance Digital Signal Controllers with High-Resolution PWM and CAN Flexible Data-Rate (CAN FD)

Manufacturer: MICROCHIP
Manufacturer part #: DSPIC33CK1024MP705-E/PT
Store part #: C20291174
Package / case: TQFP-48(7x7)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C20291174

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,187.27	₹1,187.27
10+	₹1,160.27	₹11,602.70
30+	₹1,141.99	₹34,259.70
100+	₹1,123.93	₹1,12,393.00

Quantity (min 1)

1 × ₹1,187.27

₹1,187.27

excl. GST

₹1,400.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per tray

DSPIC33CK1024MP705-E/PT

₹1,187.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.857 g

Overview

Applications

DC/DC converters
AC/DC power supplies
Uninterruptable Power Supply (UPS)
Motor Control: BLDC, PMSM, SR, ACIM

Key features

256 - 1024 Kbytes of Program Flash with ECC and 128 Kbytes of Data RAM
Fast Six - Cycle Divide
Flash with Dual Partition for LiveUpdate Capabilities
LiveUpdate
Code Efficient (C and Assembly) Architecture
40 - Bit Wide Accumulators Single - Cycle (MAC/MPY) with Dual Data Fetch
Single - Cycle, Mixed - Sign MUL Plus Hardware Divide
32 - Bit Multiply Support
Five Sets of Interrupt Context Selected Registers for Fast Interrupt Response
Zero Overhead Looping
RAM Memory Built - In Self - Test (MBIST)
Fast RC (FRC)
Internal Oscillator
Programmable PLLs and Oscillator Clock Sources
Reference Clock Output
Fail - Safe Clock Monitor (FSCM)
Fast Wake - up and Start - up
8 MHz Backup FRC (BFRC) with a Divider (244 decimal) to provide a Nominal 32.768 kHz Output with a 50% Duty Cycle
Low - Power Management Modes (Sleep, Idle, Doze)
Integrated Power - on Reset and Brown - out Reset
Up to Twelve PWM Channels
250 ps PWM Resolution
One General Purpose 16 - Bit Timer
Peripheral Trigger Generator (PTG) Module
Eight SCCP Modules: Timer, Capture/Compare and PWM modes
16 or 32 - bit time base
16 or 32 - bit capture
Four - deep capture buffer
Fully asynchronous operation, available in Sleep modes
Nine MCCP/SCCP modules which include Timer, Capture/Compare and PWM: One MCCP Eight SCCPs
16 or 32 - bit time base
16 or 32 - bit capture
Four - deep capture buffer
Five ADC Modules: 12 - bit, 3.5 Msps ADC
Up to 27 conversion channels
250 ns conversion latency
Six DAC/Analog Comparator Modules: 12 - bit DACs with hardware slope compensation
15 ns analog comparators
Shared DAC/Analog Output: DAC/analog comparator outputs
Three Op Amp Modules
20 MHz GBW
40 V/s Slew Rate
±1 mV offset
Three UART Modules: Support for DMX, LIN/J2602 protocols
Three 4 - Wire SPI/I²S Modules
Two CAN Flexible Data - Rate (FD) Modules
Three I²C Modules: Support for SMBus
PPS to Allow Function Remap
Two SENT Modules
Eight DMA Channels
Three Quadrature Encoder Interfaces (QEIs): Four inputs: Phase A, Phase B, Home, Index
Eight Configurable Logic Cells (CLCs) with Internal Connections to Select Peripherals and PPS
Two Current Bias Generators (CBGs)
In - Circuit and In - Application Programming
Three Complex, Five Simple Breakpoints
IEEE 1149.2 Compatible (JTAG)
Boundary Scan
Trace Buffer and Run - Time Watch
DMT (Deadman Timer)
ECC (Error Correcting Code) for Flash Memory
WDT (Watchdog Timer)
CodeGuard Security
CRC (Cyclic Redundancy Check)
Flash OTP by ICSP Write Inhibit
RAM Memory Built - In Self Test (MBIST)
Two - Speed Start - up
Fail - Safe Clock Monitoring (FSCM)
Backup FRC (BFRC)
Capless Internal Voltage Regulator
Virtual Pins for Redundancy and Monitoring
AEC - Q100 REV - H (Grade 1: - 40°C to + 125°C) Compliant
AEC - Q100 REV - H (Grade 0: - 40°C to + 150°C) Compliant
