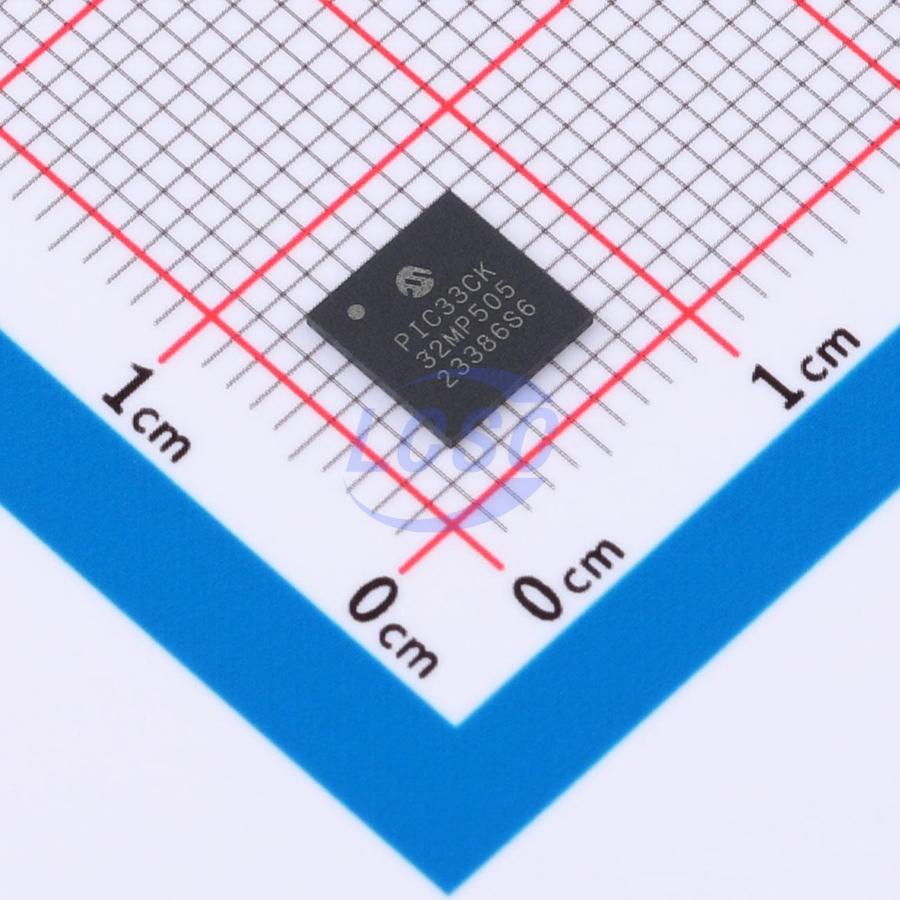

dsPIC33CK32MP505-I/M4

Key features

• 32 - 256 Kbytes of Program Flash with ECC and 8 - 24K RAM
• Fast 6 - Cycle Divide
• LiveUpdate
• Code Efficient (C and Assembly) Architecture
• 40 - Bit Wide Accumulators
• Single - Cycle (MAC/MPY) with Dual Data Fetch
• Single - Cycle, Mixed - Sign MUL Plus Hardware Divide
• 32 - Bit Multiply Support
• Four Sets of Interrupt Context Saving Registers which Include Accumulator and STATUS for Fast Interrupt Handling
• Zero Overhead Looping
• RAM Memory Built - In Self - Test (MBIST)
• Internal Oscillator
• Programmable PLLs and Oscillator Clock Sources
• Reference Clock Output
• Fail - Safe Clock Monitor (FSCM)
• Fast Wake - up and Start - up
• Backup Internal Oscillator
• Low - Power Management Modes (Sleep, Idle, Doze)
• Integrated Power - on Reset and Brown - out Re
• 8 PWM Pairs
• Up to 250 ps PWM Resolution
• Dead Time for Rising and Falling Edges
• Dead - Time Compensation
• Clock Chopping for High - Frequency Operation
• Fault and Current Limit Inputs
• Flexible Trigger Configuration for ADC Triggering
• One General Purpose Timer
• Peripheral Trigger Generator (PTG): Up to 15 trigger sources to other peripheral modules, CPU independent state machine - based instruction sequencer
• Nine MCCP/SCCP modules which Include Timer, Capture/Compare and PWM: 1 MCCP, 8 SCCPs, 16 or 32 - bit time base, 16 or 32 - bit capture, 4 - deep capture buffer
• Fully Asynchronous Operation, Available in Sleep Modes
• High - Speed ADC module: 12 - bit with two dedicated SAR ADC cores and one shared SAR ADC core, Configurable resolution (up to 12 - bit) for each ADC core, Up to 3.5 Msps conversion rate per channel at 12 - bit resolution, Up to 24 input channels, Dedicated result buffer for each analog channel, Flexible and independent ADC trigger sources, Four digital comparators, Four oversampling filters for increased resolution
• Up to Three Analog Comparators: 15 ns analog comparator
• Up to Three Op Amps
• Three 12 - Bit DACs: Hardware slope compensation
• Three Protocol UARTs with Automated Protocol Handling Support for: LIN 2.2, DMX, IrDA
• Three 4 - Wire SPI/I²S modules
• CAN Flexible Data (FD) module
• Three I²C modules with SMBus Support
• PPS to Allow Function Remap
• Programmable Cyclic Redundancy Check (CRC)
• Two SENT modules
• Parallel Master Port (PMP)
• Four DMA Channels
• In - Circuit and In - Application Programming and Debugging
• Three Complex, Five Simple Breakpoints
• IEEE 1149.2 Compatible (JTAG) Boundary Scan
• Trace Buffer and Run - Time Watch
• Clock Monitor System with Backup Oscillator
• DMT (Deadman Timer)
• ECC (Error Correcting Code)
• WDT (Watchdog Timer)
• CodeGuard Security
• CRC (Cyclic Redundancy Check)
• Flash OTP by ICSP Write Inhibit
• RAM Memory Built - In Self - Test (MBIST)
• Two - Speed Start - up
• Fail - Safe Clock Monitoring (FSCM)
• Backup FRC (BFRC)
• Capless Internal Voltage Regulator
• Virtual Pins for Redundancy and Monitoring
• Class B Safety Library – IEC 60730
• For ASIL B and Beyond Applications – ISO 26262
• FMEDA Computation Spreadsheet (Evaluation of Random Hardware Failures Metric)
• Functional Safety Manual
• Functional Safety Diagnostics Suite
• AEC - Q100 REV - H (Grade 1: - 40℃ to + 125℃) Compliant
• AEC - Q100 REV - H (Grade 0: - 40℃ to + 150℃) Compliant
