MICROCHIP

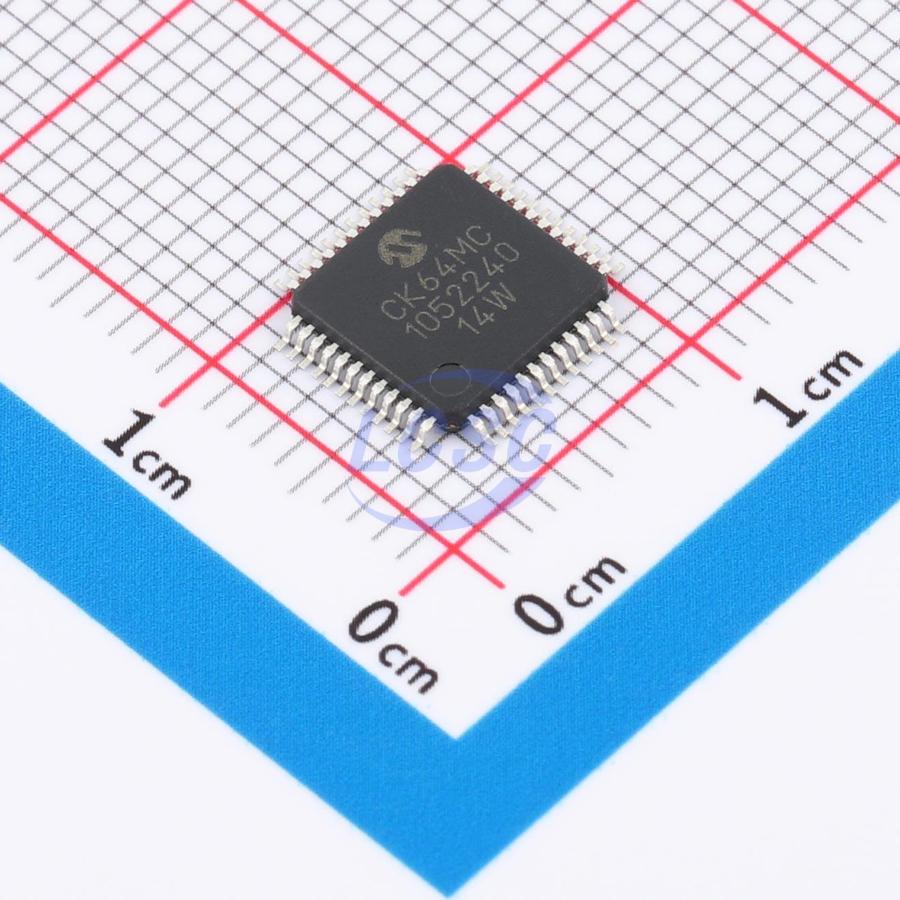

DSPIC33CK64MC105T-I/PT

TQFP-48(7x7) Microcontrollers RoHS

TQFP-48(7x7)ROHS3 CompliantActive

16-Bit Digital Signal Controllers with High-Speed PWM and CAN Flexible Data-Rate (CAN FD)

Manufacturer: MICROCHIP
Manufacturer part #: DSPIC33CK64MC105T-I/PT
Store part #: C5225949
Package / case: TQFP-48(7x7)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C5225949

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹296.55	₹296.55
10+	₹289.39	₹2,893.90
30+	₹284.68	₹8,540.40
100+	₹279.97	₹27,997.00

Quantity (min 1)

1 × ₹296.55

₹296.55

excl. GST

₹349.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,600 per reel

DSPIC33CK64MC105T-I/PT

₹296.55 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tape & Reel (TR)
Standard pack: 1,600 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.368 g

Overview

Applications

DC/DC, AC/DC, inverters, PFC, lighting
BLDC, PMSM, ACIM, Stepper motors, SRM motors

Key features

128 - 256 Kbytes of Program Flash with ECC and 16 - 32K Data RAM
Fast 6 - Cycle Divide
Code Efficient (C and Assembly) Architecture
40 - Bit Wide Accumulators Single - Cycle (MAC/MPY) with Dual Data Fetch
Single - Cycle, Mixed - Sign MUL Plus Hardware Divide
32 - Bit Multiply Support
Five Sets of Interrupt Context Selected Registers for Fast Interrupt Response
Zero Overhead Looping
RAM Memory Built - In Self - Test (MBIST)
384 Bytes of One - Time - Programmable (OTP) Memory
Selectable Oscillator Options Including: High - precision, 8 MHz internal Fast RC (FRC) Oscillator; Primary high - speed, crystal/resonator oscillator or external clock; Primary PLL, which can be clocked from FRC or crystal oscillator
Low - Power Management modes (Sleep and Idle)
Internal Oscillator
Programmable PLLs and Oscillator Clock Sources
Reference Clock Output (REFCLKO)
Fail - Safe Clock Monitor (FSCM)
Fast Wake - up and Start - up
Backup Internal Oscillator
Low - Power Management Modes (Sleep, Idle, Doze)
Integrated Power - on Reset and Brown - out Reset
Four PWM Pairs
Up to 2 ns PWM Resolution
Dead Time for Rising and Falling Edges
Dead - Time Compensation
Clock Chopping for High - Frequency Operation
PWM Support for: DC/DC, AC/DC, inverters, PFC, lighting BLDC, PMSM, ACIM, Stepper motors, SRM motors
Fault and Current Limit Inputs
Flexible Trigger Configuration for ADC Triggering
One General Purpose 16 - Bit Timer
Peripheral Trigger Generator (PTG): Up to 15 trigger sources to other peripheral modules; CPU independent state machine - based instruction sequencer; Two 16 - bit general purpose timers
Four SCCP modules which Include Timer, Capture/Compare and PWM: Two 16 - bit timers or one 32 - bit timer in each module; PWM resolution down to 2.5 ns (one output per SCCP module); 16 or 32 - bit capture; 4 - deep capture buffer
Fully Asynchronous Operation, Available in Sleep Modes
High - Speed ADC module: 12 - bit with one shared SAR ADC core; Configurable resolution (up to 12 - bit); Up to 3.5 Msps conversion rate per channel at 12 - bit resolution; Up to 20 input channels; Dedicated result buffer for each analog channel; Flexible and independent ADC trigger sources; Four digital comparators; Four oversampling filters for increased resolution
Two Analog Comparators: 15 ns analog comparator
Up to Three Op Amps: 20 MHz GBW; 40 v/μs slew rate; ±1 mV offset voltage (typical)
Two 12 - Bit DACs: Hardware slope compensation; One buffered DAC output
Three Protocol UARTs with Automated Protocol Handling Support for: LIN 2.2; DMX; IrDA
Two Four - Wire SPI/I2S modules: 16 - byte FIFO; Variable width – I2S mode
One CAN Flexible Data (FD) module
One I²C module with SMBus Support
PPS to Allow Function Remap
Programmable Cyclic Redundancy Check (CRC)
One SENT module
Four DMA Channels
One Quadrature Encoder Interface (QEI): Four inputs: Phase A, Phase B, Home, Index; One 32 - bit timer/counter (in QEI module, available if encoder is not used)
Small Pin Count Packages Ranging from 28 to 64 Pins, Including UQFN as Small as 4x4 mm
High - Current I/O Sink/Source
Edge or Level Change Notification Interrupt on I/O Pins
Peripheral Pin Select (PPS) Remappable Pins
Current Bias Generators
In - Circuit and In - Application Programming
Three Complex, Five Simple Breakpoints
IEEE 1149.2 Compatible (JTAG)
Boundary Scan
Trace Buffer and Run - Time Watch
Backup Fast RC Oscillator (BFRC)
Brown - out Reset (BOR)
Capless Internal Voltage Regulator
Clock Monitor System with Backup Oscillator
CodeGuard Security
Cyclic Redundancy Check (CRC)
Dual Watchdog Timer (WDT)
Fail - Safe Clock Monitoring (FSCM)
Flash Error Correcting Code (ECC)
Flash OTP by ICSP Write Inhibit
RAM Memory Built - In Self - Test (MBIST)
Two - Speed Start - up
Virtual Pins for Redundancy and Monitoring
Windowed Deadman Timer (DMT)
AEC - Q100 REV G (Grade 0: - 40°C to + 150°C)
