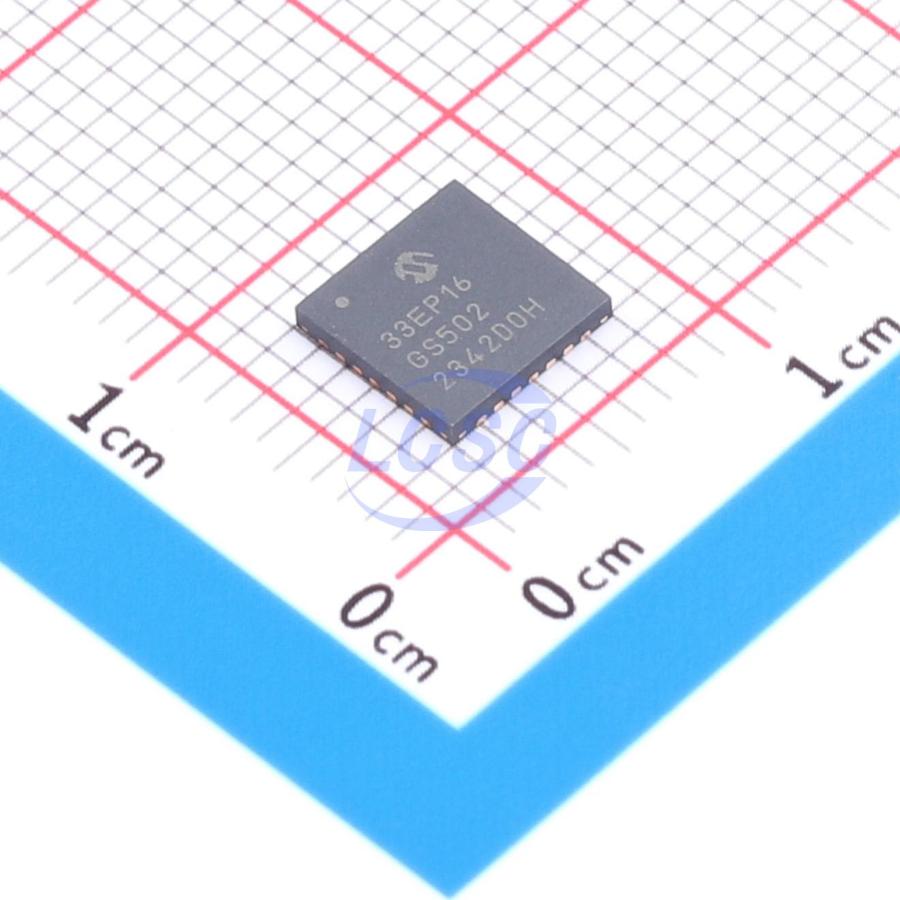

MICROCHIP

dsPIC33EP16GS502-I/MM

dsPIC 16 Bit QFN-28-EP(6x6) Microcontrollers RoHS

QFN-28-EP(6x6)ROHS3 CompliantActive

Manufacturer: MICROCHIP
Manufacturer part #: dsPIC33EP16GS502-I/MM
Store part #: C639614
Package / case: QFN-28-EP(6x6)
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C639614

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹817.23	₹817.23
10+	₹797.61	₹7,976.10
30+	₹784.59	₹23,537.70
100+	₹771.59	₹77,159.00

Quantity (min 1)

1 × ₹817.23

₹817.23

excl. GST

₹964.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 61 per tube

dsPIC33EP16GS502-I/MM

₹817.23 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of I/O: 21
Operating Temperature: -40℃~+85℃
Program Memory Type: FLASH
Voltage - Supply: 3V~3.6V
Program Storage Size: 16KB
CPU Core: dsPIC
Core Size: 16 Bit
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tube-packed
Standard pack: 61 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.346 g

Overview

Applications

AC/DC
DC/DC
Inverters
Power Factor Correction (PFC)
Lighting

Key features

3.0V to 3.6V, -40℃ to +85℃, DC to 70 MIPS; 3.0V to 3.6V, -40℃ to +125℃, DC to 60 MIPS
Dual Partition Flash Program Memory with Live Update (64-Kbyte devices): Supports programming while operating; Supports partition soft swap
Code-Efficient (C and Assembly) Architecture
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL Plus Hardware Divide
32-Bit Multiply Support
Two Additional Working Register Sets (reduces context switching)
±0.9% Internal Oscillator
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast Wake-up and Start-up
Low-Power Management modes (Sleep, Idle, Doze)
Integrated Power-on Reset and Brown-out Reset
0.5 mA/MHz Dynamic Current (typical)
10 μA IPD Current (typical)
Five PWM Generators (two outputs per generator)
Individual Time Base and Duty Cycle for each PWM
1.04 ns PWM Resolution (frequency, duty cycle, dead time and phase)
Supports Center-Aligned, Redundant, Complementary and True Independent Output modes
Independent Fault and Current-Limit Inputs
Output Override Control
PWM Support for AC/DC, DC/DC, Inverters, PFC and Lighting
High-Speed ADC module: 12-bit with 4 dedicated SAR ADC cores and one shared SAR ADC core; Configurable resolution (up to 12-bit) for each ADC core; Up to 3.25 Msps conversion rate per channel at 12-bit resolution; 12 to 22 single-ended inputs; Dedicated result buffer for each analog channel; Flexible and independent ADC trigger sources; Two digital comparators; Two oversampling filters for increased resolution
Four Rail-to-Rail Comparators with Hysteresis: Dedicated 12-bit Digital-to-Analog Converter (DAC) for each analog comparator; Up to two DAC reference outputs; Up to two external reference inputs
Two Programmable Gain Amplifiers: Single-ended or independent ground reference; Five selectable gains (4x, 8x, 16x, 32x and 64x); 40 MHz gain bandwidth
Reduces CPU Interaction to Improve Performance
Flexible PWM Trigger Options for ADC Conversions
High-Speed Comparator Truncates PWM (15 ns typical): Supports Cycle-by-Cycle Current mode control; Current Reset mode (variable frequency)
Five 16-Bit and up to Two 32-Bit Timers/Counters
Four Output Compare (OC) modules, Configurable as Timers/Counters
Four Input Capture (IC) modules
Two UART modules (15 Mbps): Supports LIN/J2602 protocols and IrDA
Two 4-Wire SPI modules (15 Mbps)
Two I²C modules (up to 1 Mbaud) with SMBus Support
Constant-Current Source (10 μA nominal)
Sink/Source up to 12mA/15mA, respectively; Pin-Specific for Standard VOH/VOL
5V Tolerant Pins
Selectable, Open-Drain Pull-ups and Pull-Downs
External Interrupts on All I/O Pins
Peripheral Pin Select (PPS) to allow Function Remap with Six Virtual I/Os
AEC-Q100 REVG (Grade 1, -40℃ to +125℃)
Class B Safety Library, IEC 60730
The 6×6×0.5 mm UQFN Package is Designed and Optimized to ease IPC9592B 2nd Level Temperature Cycle Qualification
In-Circuit and In-Application Programming
Five Program and Three Complex Data Breakpoints
IEEE 1149.2 Compatible (JTAG) Boundary Scan
Trace and Run-Time Watch
