MICROCHIP

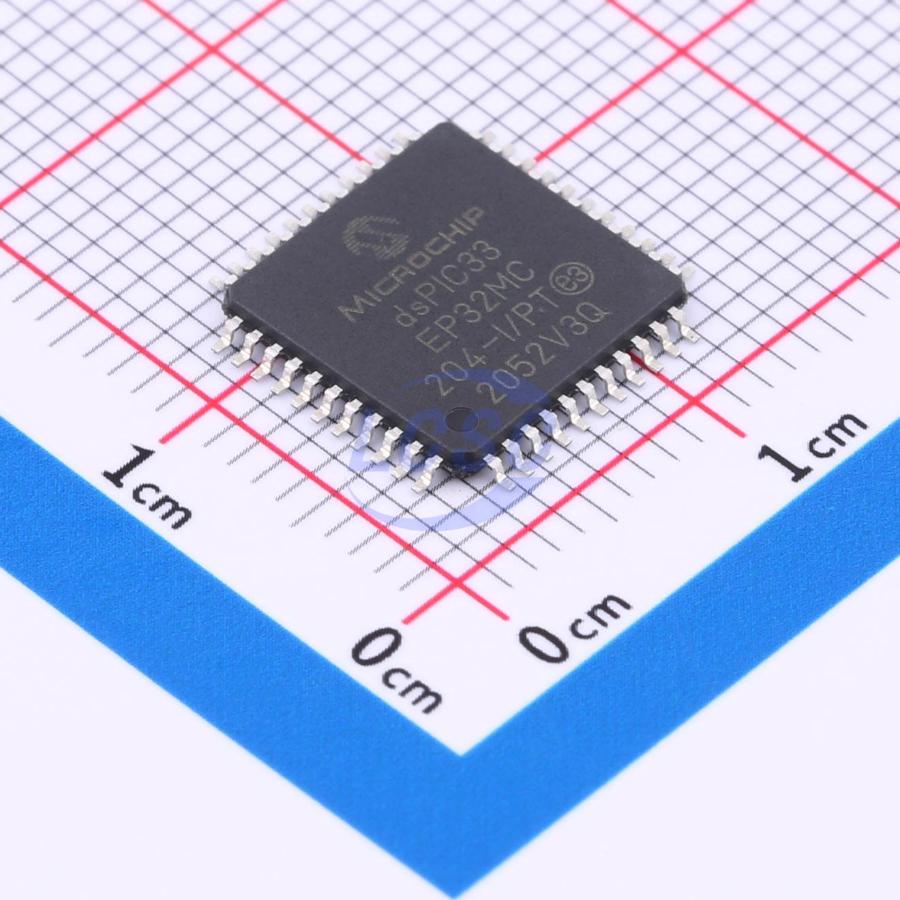

DSPIC33EP32MC204-I/PT

TQFP-44(10x10) Microcontrollers RoHS

TQFP-44(10x10)ROHS3 CompliantActive

16-Bit Microcontrollers and Digital Signal Controllers with High-Speed PWM, Op Amps and Advanced Analog

Manufacturer: MICROCHIP
Manufacturer part #: DSPIC33EP32MC204-I/PT
Store part #: C141373
Package / case: TQFP-44(10x10)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

87 in stock

#C141373

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹553.38	₹553.38
10+	₹477.47	₹4,774.70
30+	₹393.51	₹11,805.30
160+	₹348.04	₹55,686.40
480+	₹326.94	₹1,56,931.20
960+	₹317.59	₹3,04,886.40

Quantity (min 1)

1 × ₹553.38

₹553.38

excl. GST

₹652.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 160 per tray

DSPIC33EP32MC204-I/PT

₹553.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.4 g

Overview

Applications

DC/DC, AC/DC, Inverters, PFC, Lighting
BLDC, PMSM, ACIM, SRM

Key features

Code Efficient (C and Assembly) Architecture
Two 40-Bit Wide Accumulators
Single Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle, Mixed-Sign MUL plus Hardware Divide
32-Bit Multiply Support
1.0% Internal Oscillator
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast Wake-up and Start-up
Low-Power Management modes (Sleep, Idle, Doze)
Integrated Power-on Reset and Brown-out Reset
0.6 mA/MHz Dynamic Current (typical)
30 μA IPD Current (typical)
Up to Three PWM Pairs with Independent Timing
Dead Time for Rising and Falling Edges
7.14 ns PWM Resolution
PWM Support for: DC/DC, AC/DC, Inverters, PFC, Lighting, BLDC, PMSM, ACIM, SRM
Programmable Fault Inputs
Flexible Trigger Configurations for ADC Conversions
ADC module: Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H; Six analog inputs on 28-pin devices and up to 16 analog inputs on 64-pin devices
Flexible and Independent ADC Trigger Sources
Up to Three Op Amp/Comparators with Direct Connection to the ADC module: Additional dedicated comparator; Programmable references with 32 voltage points
Charge Time Measurement Unit (CTMU): Supports mTouch capacitive touch sensing; Provides high-resolution time measurement (1 ns); On-chip temperature measurement
12 General Purpose Timers: Five 16-bit and up to two 32-bit timers/counters; Four Output Compare (OC) modules, configurable as timers/counters; PTG module with two configurable timers/counters; 32-bit Quadrature Encoder Interface (QEI) module, configurable as a timer/counter
Four Input Capture (IC) modules
Peripheral Pin Select (PPS) to allow Function Remap
Peripheral Trigger Generator (PTG) for Scheduling Complex Sequences
Two UART modules (17.5 Mbps): With support for LIN/J2602 protocols and IrDA
Two Four-Wire SPI modules (15 Mbps)
ECAN module (1 Mbaud) CAN 2.0B Support
Two I²C modules (up to 1 Mbaud) with SMBus Support
PPS to allow Function Remap
Programmable Cyclic Redundancy Check (CRC)
4-Channel DMA with User-Selectable Priority Arbitration
UART, SPI, ADC, ECAN, IC, OC and Timers
Sink/Source 12 mA or 6 mA, Pin-Specific for Standard VOH/VOL, Up to 22 or 14 mA, respectively for Non-Standard VOH1
5V Tolerant Pins
Peripheral Pin Select (PPS) to allow Digital Function Remapping
Selectable Open-Drain, Pull-ups and Pull-Downs
Up to 5 mA Overvoltage Clamp Current
Change Notification Interrupts on All I/O Pins
AEC-Q100 REVG (Grade 1, -40°C to +125°C)
AEC-Q100 REVG (Grade 0, -40°C to +150°C)
Class B Safety Library, IEC 60730
In-Circuit and In-Application Programming
Two Program and Two Complex Data Breakpoints
IEEE 1149.2 Compatible (JTAG) Boundary Scan
Trace and Run-Time Watch
