MICROCHIP

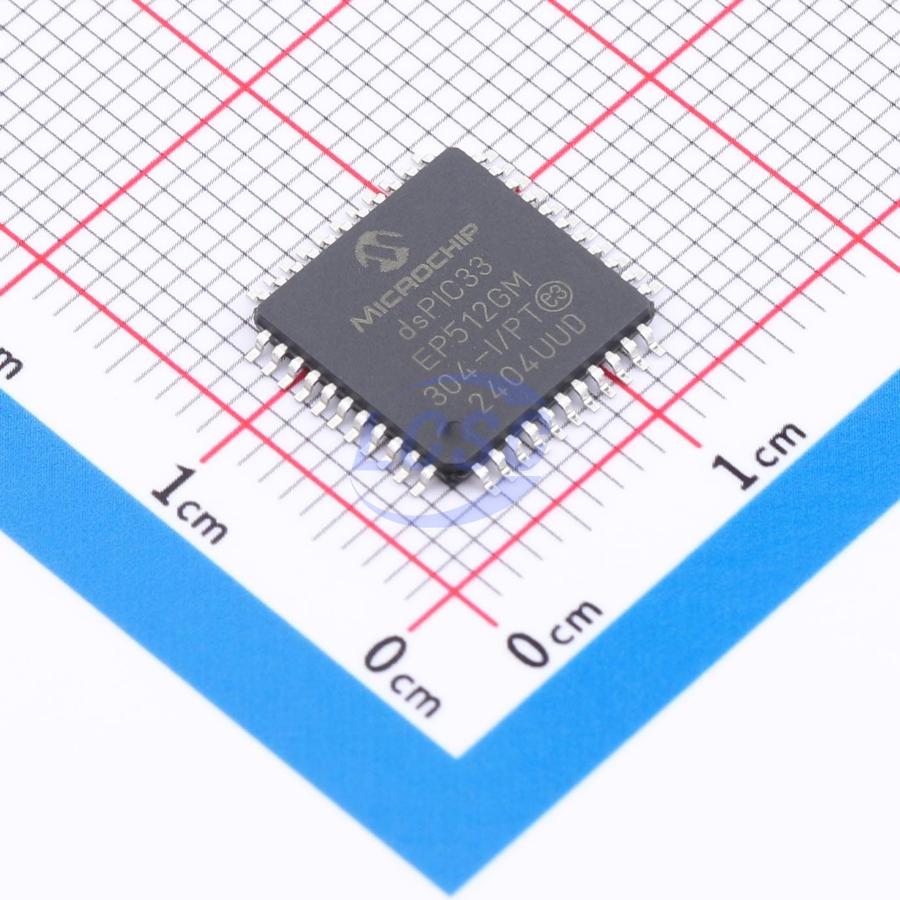

dsPIC33EP512GM304-I/PT

TQFP-44(10x10) Microcontrollers RoHS

TQFP-44(10x10)ROHS3 CompliantActive

16-Bit Digital Signal Controllers with High-Speed PWM, Op Amps and Advanced Analog Features

Manufacturer: MICROCHIP
Manufacturer part #: dsPIC33EP512GM304-I/PT
Store part #: C634067
Package / case: TQFP-44(10x10)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C634067

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹1,405.13	₹1,405.13
10+	₹1,359.62	₹13,596.20

Quantity (min 1)

1 × ₹1,405.13

₹1,405.13

excl. GST

₹1,658.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 160 per tray

dsPIC33EP512GM304-I/PT

₹1,405.13 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.414 g

Overview

Applications

DC/DC, AC/DC, Inverters, PFC, Lighting
BLDC, PMSM, ACIM, SRM

Key features

Code-Efficient (C and Assembly) Architecture
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL plus Hardware Divide
32-Bit Multiply Support
Internal Fast FRC Oscillator with 1% Accuracy
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast Wake-up and Start-up
Low-Power Management modes (Sleep, Idle, Doze)
Executing Optimized NOP String with Flash Fetch
Integrated Power-on Reset and Brown-out Reset
0.6 mA/MHz Dynamic Current (typical)
30 μA IPD Current (typical)
Up to 12 PWM Outputs (six generators)
Primary Master Time Base Inputs allow Time Base Synchronization from Internal/External Sources
Dead Time for Rising and Falling Edges
7.14 ns PWM Resolution
Programmable Fault Inputs
Flexible Trigger Configurations for ADC Conversions
Supports PWM Lock, PWM Output Chopping and Dynamic Phase Shifting
Two Independent ADC modules: Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H; 11, 13, 18, 30 or 49 analog inputs
Flexible and Independent ADC Trigger Sources
Up to Four Op Amp/Comparators with Direct Connection to the ADC module: Additional dedicated comparator; Programmable references with 32 voltage points; Programmable blanking and filtering
Charge Time Measurement Unit (CTMU): Supports mTouch capacitive touch sensing; Provides high-resolution time measurement (1 ns); On-chip temperature measurement
21 General Purpose Timers: Nine 16-bit and up to four 32-bit timers/counters; Eight output capture modules configurable as timers/counters; PTG module with two configurable timers/counters; Two 32-bit Quadrature Encoder Interface (QEI) modules configurable as a timer/counter
Eight Input Capture modules
Peripheral Pin Select (PPS) to allow Function Remap
Peripheral Trigger Generator (PTG) for Scheduling Complex Sequences
Four Enhanced Addressable UART modules (17.5 Mbps): With support for LIN/J2602 protocols and IrDA
Three 3-Wire/4-Wire SPI modules (15 Mbps)
25 Mbps Data Rate for Dedicated SPI module (with no PPS)
Two I²C modules (up to 1 Mbps) with SMBus Support
Two CAN modules (1 Mbps) with CAN 2.0B Support
Programmable Cyclic Redundancy Check (CRC)
Codec Interface module (DCI) with I²S Support
4-Channel DMA with User-Selectable Priority Arbitration
Sink/Source 15 mA or 10 mA, Pin-Specific for Standard VoH/VoL
5V Tolerant Pins
Selectable Open-Drain, Pull-ups and Pull-Downs
Up to 5 mA Overvoltage Clamp Current
Change Notice Interrupts on All I/O Pins
PPS to allow Function Remap
AEC-Q100 REVG (Grade 1, -40°C to +125°C) Planned
AEC-Q100 REVG (Grade 0, -40°C to +150°C) Planned
Class B Safety Library, IEC 60730
In-Circuit and In-Application Programming
Three Complex and Five Simple Breakpoints
IEEE 1149.2 Compatible (JTAG) Boundary Scan
Trace and Run-Time Watch
