MICROCHIP

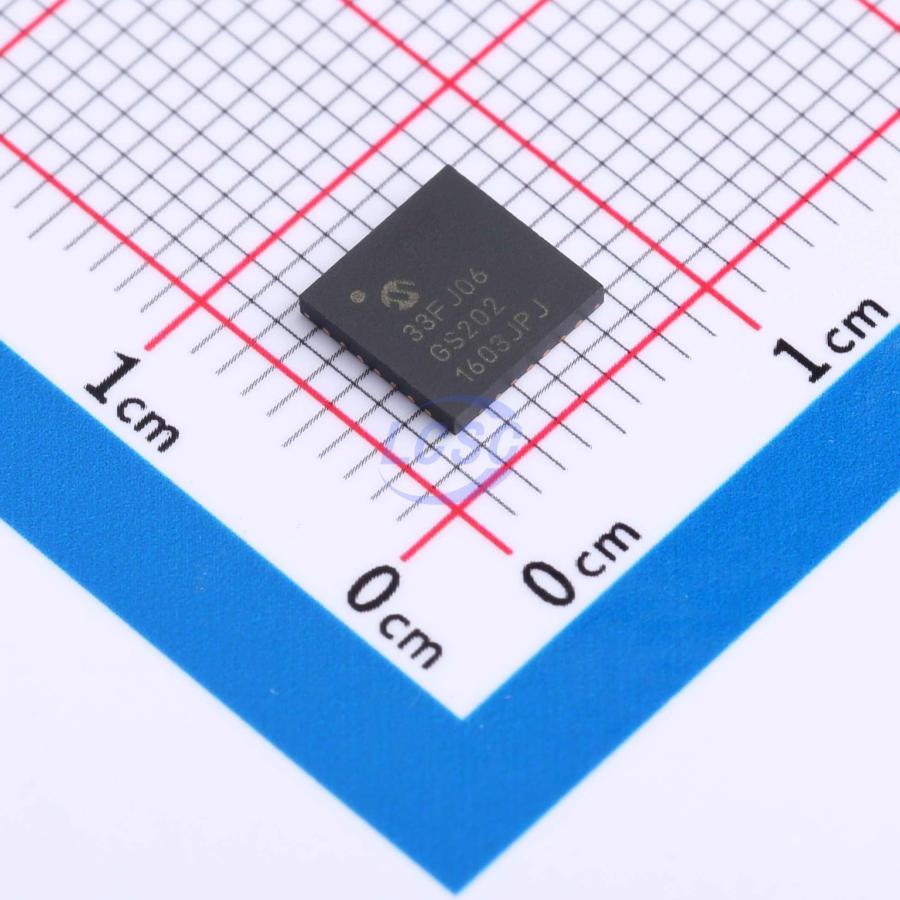

dsPIC33FJ06GS202A-I/MM

dsPIC 16 Bit QFN-28-EP(6x6) Microcontrollers RoHS

QFN-28-EP(6x6)ROHS3 CompliantActive

16-Bit Microcontrollers and Digital Signal Controllers with High-Speed PWM, ADC and Comparators

Manufacturer: MICROCHIP
Manufacturer part #: dsPIC33FJ06GS202A-I/MM
Store part #: C639710
Package / case: QFN-28-EP(6x6)
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C639710

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹863.13	₹863.13
10+	₹744.78	₹7,447.80
61+	₹672.75	₹41,037.75
122+	₹612.21	₹74,689.62

Quantity (min 1)

1 × ₹863.13

₹863.13

excl. GST

₹1,018.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 61 per tube

dsPIC33FJ06GS202A-I/MM

₹863.13 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of I/O: 21
Operating Temperature: -40℃~+85℃
Program Memory Type: FLASH
Voltage - Supply: 3V~3.6V
Program Storage Size: 6KB
CPU Core: dsPIC
Core Size: 16 Bit
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tube-packed
Standard pack: 61 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.32 g

Overview

Applications

DC/DC, AC/DC, Inverters, PFC and Lighting

Key features

Code Efficient (C and Assembly) Architecture
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL plus Hardware Divide
32-Bit Multiply Support
±2% Internal Oscillator
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast Wake-up and Start-up
Low-Power Management modes (Sleep, Idle, Doze)
Integrated Power-on Reset and Brown-out Reset
2.0 mA/MHz Dynamic Current (typical)
135 μA IPD Current (typical)
Up to Three PWM Pairs with Independent Timing
Dead Time for Rising and Falling Edges
1.04 ns PWM Resolution for Dead Time, Duty Cycle, Phase and Frequency
Programmable Fault Inputs
Flexible Trigger Configurations for ADC Conversions
Two High-Speed Comparators with Direct Connection to the PWM module: Buffered/amplified output drive, Independent 10-bit DAC for each comparator, Rail-to-rail comparator operation, DACOUT amplifier (1x, 1.8x), Selectable hysteresis, Programmable output polarity, Interrupt generation capability
10-bit resolution with Successive Approximation Register (SAR) converter (2 Msps) and three Sample-and-Hold (S&H) circuits
Up to 8 input channels grouped into four conversion pairs, plus two inputs for monitoring voltage references
Flexible and independent ADC trigger sources
Dedicated Result register for each analog channel
Two 16-Bit General Purpose Timers/Counters
Input Capture module
Output Compare module
Peripheral Pin Select (PPS) to allow Function Remap
UART module (10 Mbps): With support for LIN/J2602 protocols and IrDA
4-Wire SPI module
I2C module (up to 1 Mbaud) with SMBus Support
PPS to allow Function Remap
Constant Current Source: Constant current generator (10 μA nominal)
Sink/Source 18 mA on 8 Pins and 6 mA on 13 Pins
5V Tolerant Pins
Selectable Open-Drain and Pull-ups
External Interrupts on 16 I/O Pins
AEC-Q100 REVG (Grade 1, -40°C to +125°C) Planned
Class B Safety Library, IEC 60730
In-Circuit and In-Application Programming
Two Breakpoints
IEEE 1149.2 Compatible (JTAG) Boundary Scan
Trace and Run-Time Watch
