MICROCHIP

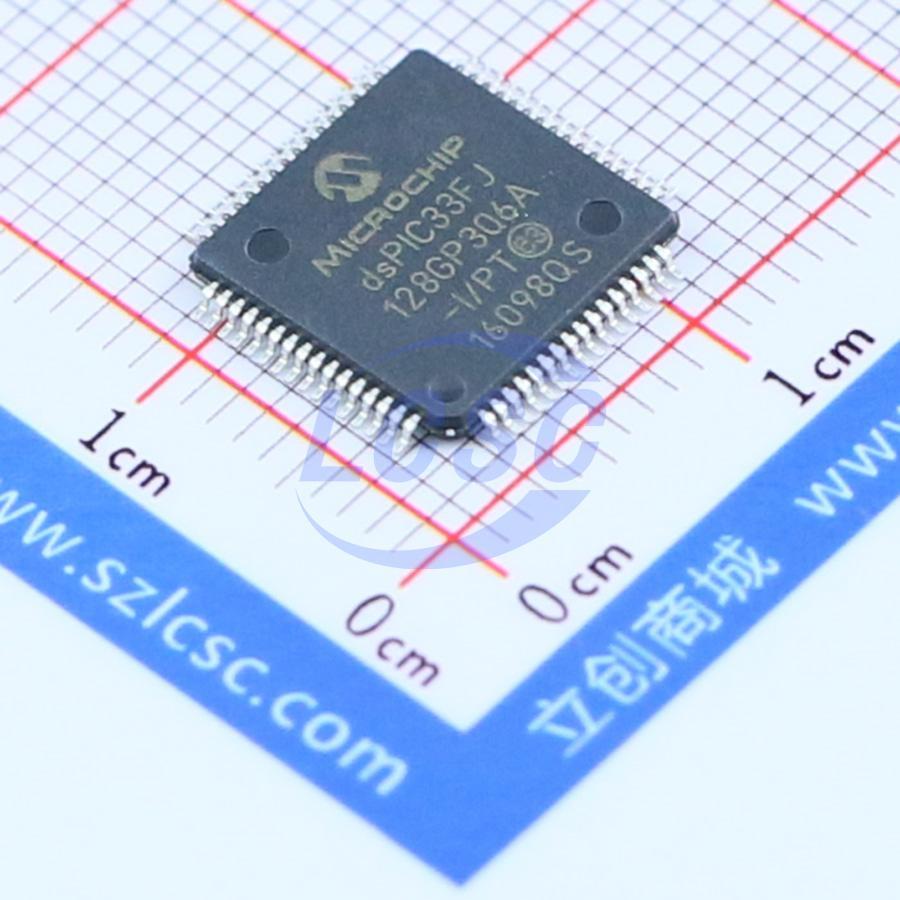

DSPIC33FJ128GP306AT-I/PT

TQFP-64(10x10) Microcontrollers RoHS

TQFP-64(10x10)ROHS3 CompliantActive

16-bit Digital Signal Controllers (up to 256 KB Flash and 30 KB SRAM) with Advanced Analog

Manufacturer: MICROCHIP
Manufacturer part #: DSPIC33FJ128GP306AT-I/PT
Store part #: C84511
Package / case: TQFP-64(10x10)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95 in stock

#C84511

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹966.39	₹966.39
10+	₹831.08	₹8,310.80
30+	₹748.55	₹22,456.50
100+	₹679.44	₹67,944.00

Quantity (min 1)

1 × ₹966.39

₹966.39

excl. GST

₹1,140.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,200 per reel

DSPIC33FJ128GP306AT-I/PT

₹966.39 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tape & Reel (TR)
Standard pack: 1,200 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.094 g

Overview

Applications

16-bit MCU embedded applications
speech and audio processing applications

Key features

Code-efficient (C and Assembly) architecture
Two 40-bit wide accumulators
Single-cycle (MAC/MPY) with dual data fetch Single-cycle mixed-sign MUL plus hardware divide
±2% internal oscillator
Programmable PLLs and oscillator clock sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast wake-up and start-up
Low-power management modes (Sleep, Idle, Doze)
Integrated Power-on Reset and Brown-out Reset
2.1 mA/MHz dynamic current (typical)
50 μA IPD current (typical)
Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices
Flexible and independent ADC trigger sources
Up to nine 16-bit timers/counters. Can pair up to make four 32-bit timers. Eight Output Compare modules configurable as timers/counters
Eight Input Capture modules
Two UART modules (10 Mbps) - With support for LIN 2.0 protocols and IrDA
Two 4-wire SPI modules (15 Mbps)
Up to two I²C modules (up to 1 Mbaud) with SMBus support
Up to two Enhanced CAN (ECAN) modules (1 Mbaud) with 2.0B support
Data Converter Interface (DCI) module with I²S codec support
Sink/Source up to 10 mA (pin specific) for standard VOH/VOL, up to 16 mA (pin specific) for non-standard VOH1
5V-tolerant pins
Selectable open drain, pull-ups, and pull-downs
Up to 5 mA overvoltage clamp current
External interrupts on all I/O pins
AEC-Q100 REVG (Grade 1 -40°C to +125°C)
AEC-Q100 REVG (Grade 0 -40°C to +150°C)
Class B Safety Library, IEC 60730
In-circuit and in-application programming
Two program and two complex data breakpoints
IEEE 1149.2-compatible (JTAG) boundary scan
Trace and run-time watch
