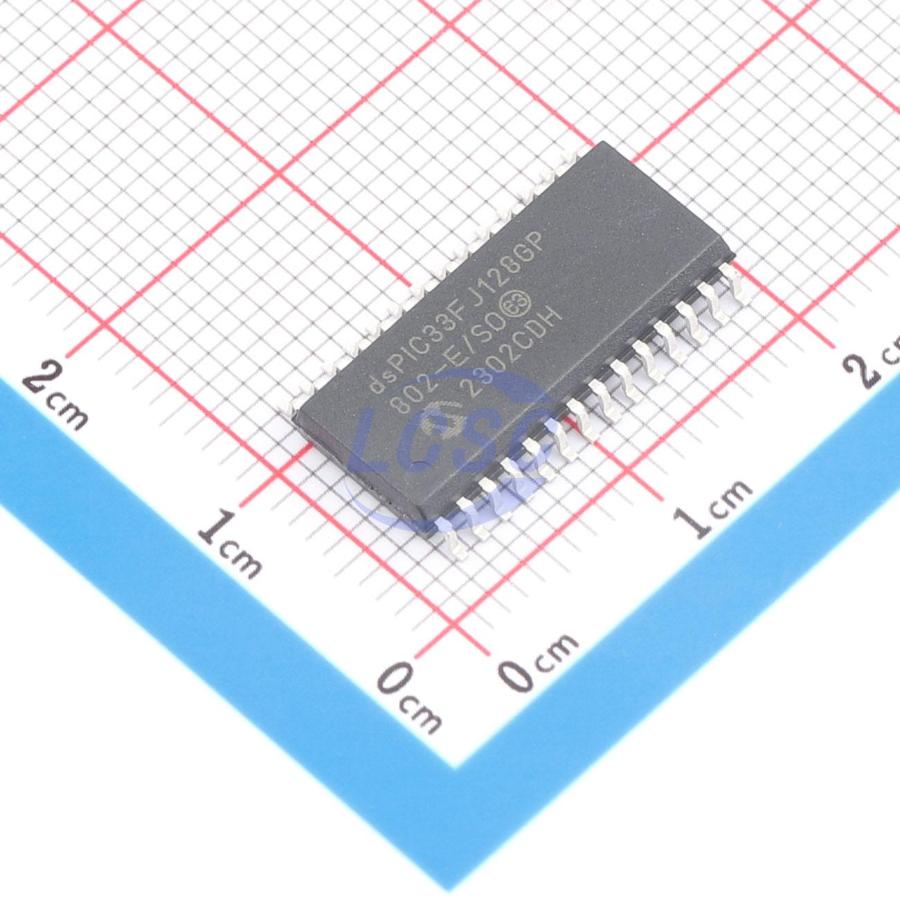

dsPIC33FJ128GP802-E/SO

Key features

• 3.0V to 3.6V, -40°C to +150°C, DC to 20 MIPS
• 3.0V to 3.6V, -40°C to +125°C, DC to 40 MIPS
• 2% internal oscillator
• Programmable PLL and oscillator clock sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer
• Low-power management modes
• Fast wake-up and start-up
• Up to 40 MIPS 16-bit dsPIC33F CPU
• Single-cycle MUL plus hardware divide
• 10/12-bit ADC with 1.1Msps/500 ksps rate
• Up to 13 ADC input channels and four S&H
• Flexible/Independent trigger sources
• 150 ns Comparators
• Up to two Analog Comparator modules
• 4-bit DAC with two ranges for Analog Comparators
• Software remappable pin functions
• 5V-tolerant pins
• Selectable open drain and internal pull-ups
• Up to 5 mA overvoltage clamp current/pin
• Multiple external interrupts
• 16-bit dual channel 100 ksps Audio DAC
• Cyclic Redundancy Check (CRC) module
• Up to five 16-bit and up to two 32-bit Timers/Counters
• Up to four Input Capture (IC) modules
• Up to four Output Compare (OC) modules
• Real-Time Clock and Calendar (RTCC) module
• Parallel Master Port (PMP)
• Two UART modules (10 Mbps)
• Supports LIN 2.0 protocols
• RS-232, RS-485, and IrDA support
• Two 4-wire SPI modules (15 Mbps)
• Enhanced CAN (ECAN) module (1 Mbaud) with 2.0B support
• I²C module (100K, 400K and 1Mbaud) with SMbus support
• Data Converter Interface (DCI) module with I²S codec support
• 8-channel DMA with no CPU stalls or overhead
• UART, SPI, ADC, ECAN, IC, OC, INT0
• AEC-Q100 REVG (Grade 0 [-40°C to +150°C])
• Class B Safety Library, IEC 60730, VDE certified
• In-circuit and in-application programming
• Two program breakpoints
• Trace and run-time watch
