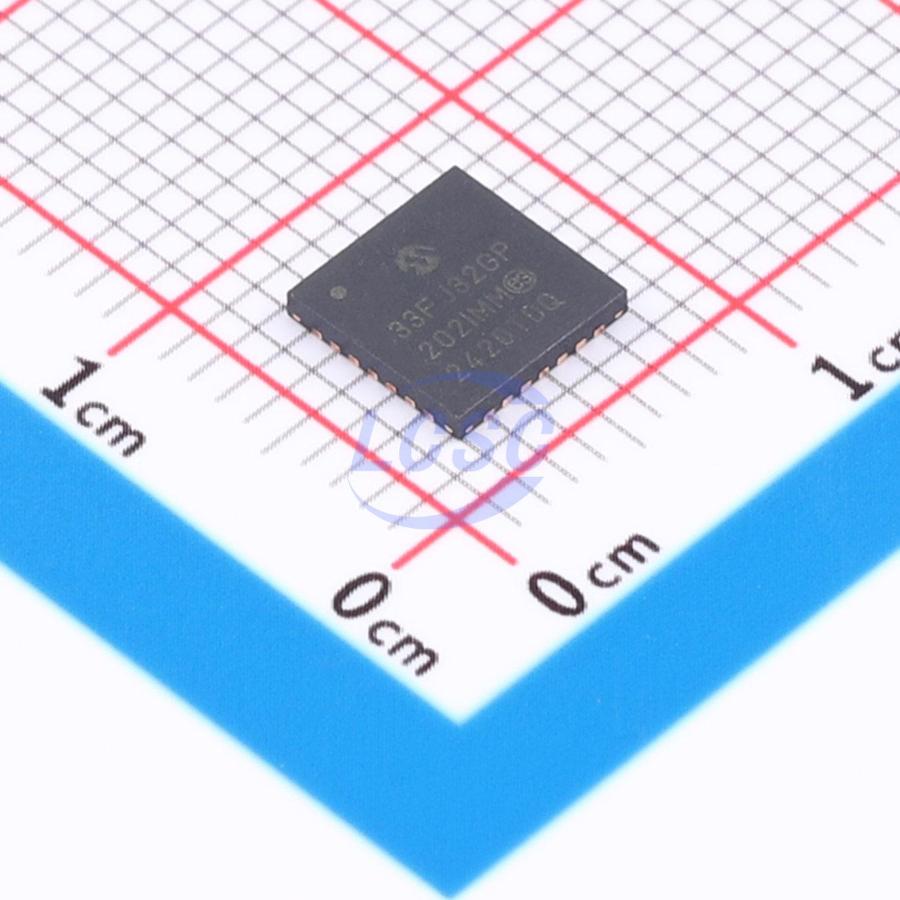

dsPIC33FJ32GP202-I/MM

Key features

• Code-efficient (C and Assembly) architecture
• Two 40-bit wide accumulators
• Single-cycle (MAC/MPY) with dual data fetch
• Single-cycle, mixed-sign MUL plus hardware divide
• ±2% internal oscillator
• Programmable PLLs and oscillator clock sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer (WDT)
• Fast wake-up and start-up
• Low-power management modes (Sleep, Idle, Doze)
• Integrated Power-on Reset and Brown-out Reset
• 1.35 mA/MHz dynamic current (typical)
• 55 μA IPD current (typical)
• ADC module:
• Configurable as 10-bit, 1.1 Msps with four S/H (Sample-and-Hold) or 12-bit, 500 ksps with one S/H
• Ten analog inputs on 28-pin devices and up to 13 analog inputs on 44-pin devices
• Flexible and independent ADC trigger sources
• Three 16-bit timers/counters; can pair up two to make one 32-bit
• Two OC modules, configurable as timers/counters
• Four IC modules
• Peripheral Pin Select (PPS) to allow function remap
• One UART module (10 Mbps) - With support for LIN/J2602 protocols and IrDA
• One 4-wire SPI module (15 Mbps)
• One I²C module (up to 1 Mbaud) with SMBus support
• Sink/Source up to 10 mA (pin-specific) for standard VOH/VOL, up to 16 mA (pin-specific) for non-standard VOH1
• 5V tolerant pins
• Selectable open-drain, pull-ups, and pull-downs
• Up to 5 mA overvoltage clamp current
• External interrupts on all I/O pins
• AEC-Q100 REVG (Grade 1 [-40°C to +125°C])
• AEC-Q100 REVG (Grade 0 [-40°C to +150°C])
• Class B Safety Library, IEC 60730
• In-circuit and in-application programming
• Two program and two complex data breakpoints
• IEEE 1149.2-compatible (JTAG) boundary scan
• Trace and run-time watch
