MICROCHIP

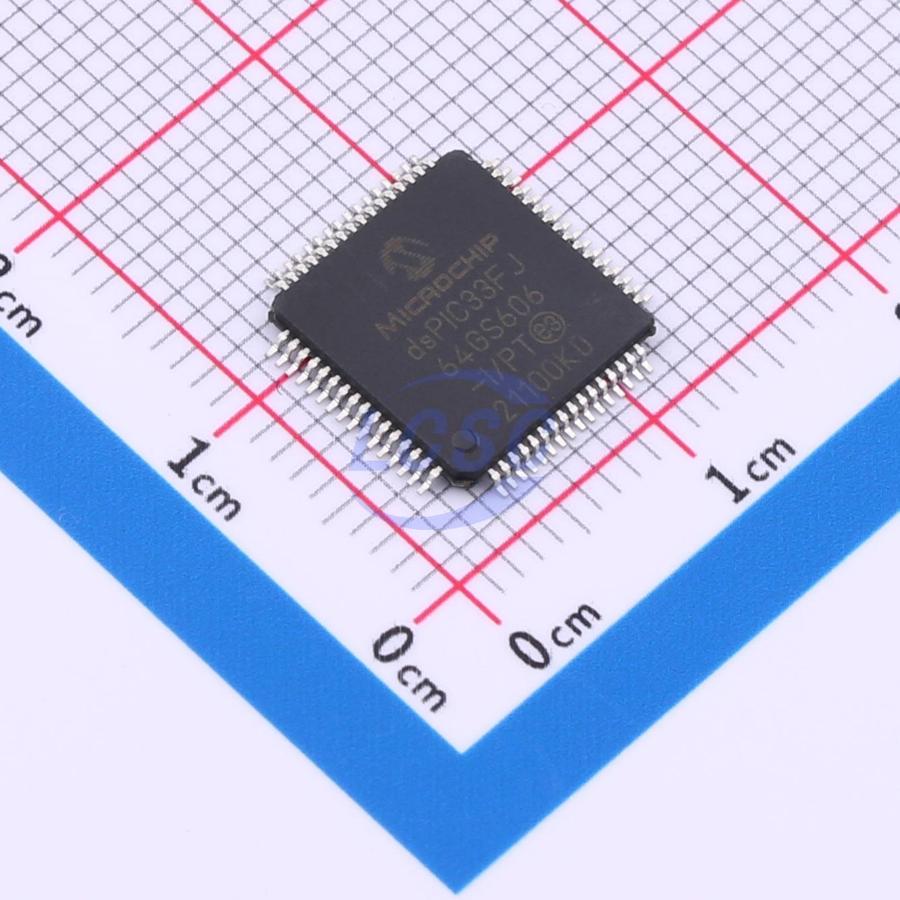

dsPIC33FJ64GS606T-I/PT

TQFP-64(10x10) Microcontrollers RoHS

TQFP-64(10x10)ROHS3 CompliantActive

16-Bit Digital Signal Controllers with High-Speed PWM, ADC and Comparators

Manufacturer: MICROCHIP
Manufacturer part #: dsPIC33FJ64GS606T-I/PT
Store part #: C630718
Package / case: TQFP-64(10x10)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

55 in stock

#C630718

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,134.09	₹1,134.09
10+	₹1,084.32	₹10,843.20
30+	₹1,053.93	₹31,617.90
100+	₹1,028.50	₹1,02,850.00

Quantity (min 1)

1 × ₹1,134.09

₹1,134.09

excl. GST

₹1,338.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,200 per reel

dsPIC33FJ64GS606T-I/PT

₹1,134.09 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tape & Reel (TR)
Standard pack: 1,200 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.415 g

Overview

Applications

DC/DC, AC/DC, Inverters, PFC, Lighting
BLDC, PMSM, ACIM, SRM

Key features

Code-Efficient (C and Assembly) Architecture
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL plus Hardware Divide
32-Bit Multiply Support
±1% Internal Oscillator
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast Wake-up and Start-up
Low-Power Management modes (Sleep, Idle, Doze)
Integrated Power-on Reset and Brown-out Reset
1.7 mA/MHz Dynamic Current (typical)
50 μA IPD Current (typical)
Up to 9 PWM Pairs with Independent Timing
Dead Time for Rising and Falling Edges
1.04 ns PWM Resolution
Programmable Fault Inputs
Flexible Trigger Configurations for ADC Conversions
High-Speed ADC module: 10-bit resolution with up to two Successive Approximation Register (SAR) converters (up to 4 Msps); Up to 24 input channels grouped into 12 conversion pairs plus two voltage reference monitoring inputs; Dedicated result buffer for each analog channel
Flexible and Independent ADC Trigger Sources
Up to 4 High-Speed Comparators with Direct Connection to the PWM module: 10-bit Digital-to-Analog Converter (DAC) for each comparator; DAC reference output; Programmable references with 1024 voltage points
Six General Purpose Timers: Five 16-bit and up to two 32-bit timers/counters
Four Output Compare (OC) modules Configurable as Timers/Counters
Quadrature Encoder Interface (QEI) module Configurable as Timer/Counter
Four Input Capture (IC) modules
Two UART modules (12.5 Mbps): With support for LIN/J2602 2.0 protocols and IrDA
Two 4-Wire SPI modules (15 Mbps)
ECAN module (1 Mbaud) with ECAN 2.0B Support
Two I²C modules (up to 1 Mbaud) with SMBus Support
4-Channel DMA with User-Selectable Priority Arbitration
Sink/Source 18 mA on 18 Pins, 10 mA on 1 Pin or 6 mA on 66 Pins
5V Tolerant Pins
Selectable Open-Drain and Pull-ups
29 External Interrupts
AEC-Q100 REVG (Grade 1, -40°C to +125°C)
Class B Safety Library, IEC 60730, VDE Certified
In-Circuit and In-Application Programming
Two Program and Two Complex Data Breakpoints
IEEE 1149.2 Compatible (JTAG) Boundary Scan
Trace and Run-Time Watch
