E-L9823013TR

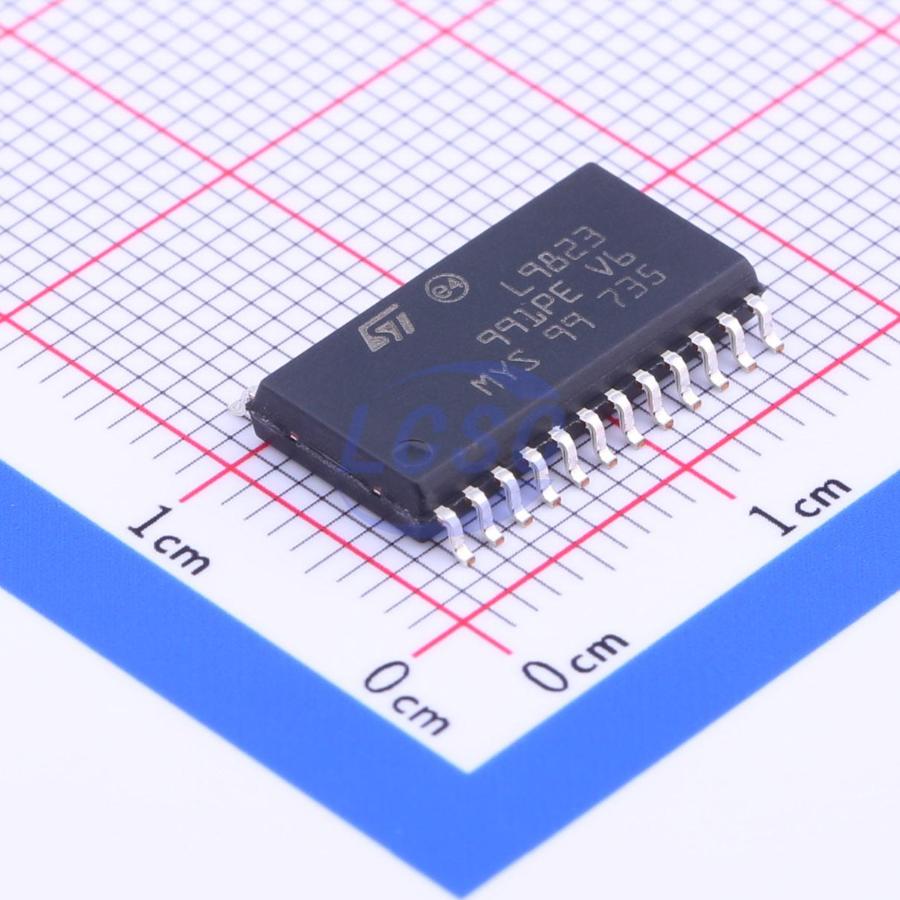

8 2A Active High Low Side Switch SO-24-300mil Power Distribution Switches, Load Drivers RoHS

SO-24-300milROHS3 CompliantActive

Octal low-side driver for bulb, resistive and inductive loads with serial input control, output protection and diagnostic

Manufacturer: ST
Manufacturer part #: E-L9823013TR
Store part #: C221461
Package / case: SO-24-300mil
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C221461

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹807.31	₹807.31
10+	₹701.94	₹7,019.40
30+	₹637.86	₹19,135.80
100+	₹583.97	₹58,397.00

Quantity (min 1)

1 × ₹807.31

₹807.31

excl. GST

₹952.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

E-L9823013TR

₹807.31 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Latch protection
number of channels: 8
Maximum Continuous Current: 2A
Control Input Logic: Active High
RDS(on): 800mΩ
Operating Voltage: 4.5V~5.5V
Type: Low Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.9 g

Overview

A octal low-side driver circuit, dedicated for automotive applications. Output voltage clamping is provided for flyback current recirculation, when inductive loads are driven. Chip select and cascadable serial 8-bit Interface for outputs control and diagnostic data transfer.

Key features

Outputs current capability up to 0.5 A
Cascadable SPl control for outputs
Reset function with reset signal or undervoltage at VDD
Programmable intrinsic output voltage clamping at typ. 50 V for inductive switching
Overcurrent shutdown with latch-off for every write cycle (SFP D = Iow)
Independent thermal shutdown of outputs (SOA Protection)
Output status data available on the SPl using 8-bit I/O protocol up to 3.0 MHz
Low standby current with reset = low (typ. 35μA @ VDD)
Open load detection (outputs off)
Single VDD logic supply
High EMS immunity and low EME (controlled output slopes)
Full functionality of the remaining device at negative voltage drop on outputs (-1.5 A or -3.0 A)
Output mode programmable for sustained current limit or shutdown
