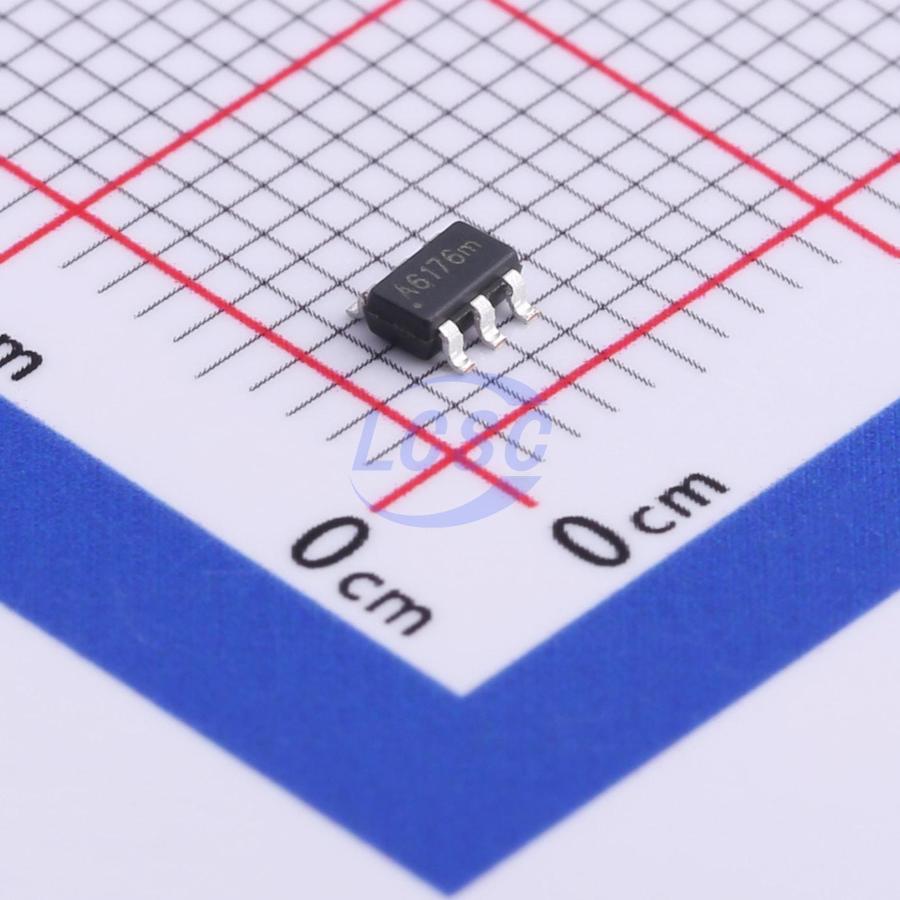

EA8212HT6R
1MHz Step-down type Adjustable 2A 600mV~12V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V Input, 2A Output, 1MHz Synchronous Buck Converter
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA8212HT6R
- Store part #
- C609568
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,406 in stock
#C609568
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹12.46 | ₹37.38 |
| 30+ | ₹9.94 | ₹298.20 |
| 90+ | ₹8.68 | ₹781.20 |
| 300+ | ₹7.74 | ₹2,322.00 |
| 1,500+ | ₹6.97 | ₹10,455.00 |
| 3,000+ | ₹6.19 | ₹18,570.00 |
3 × ₹12.46
₹37.38
excl. GST
₹44.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA8212HT6R
₹37.38 for 3 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 600mV~12V
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.053 g
Overview
The EA8212H is a 2A buck regulator, designed to operate from 4.5V to 18V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components and has up to 96% efficiency, ideal for 2A output current applications. The EA8212H is designed to take into account the light load mode operation. The EA8212H has complete protection functions, including cycle-by-cycle current limit, short circuit protection, OVP, and OTP protection. The internal compensation design not only allows users to more simplified application, and can reduce the cost of external components. The EA8212H is available in the SOT-23-6 package and easy to use.
Applications
- CCTV
- Security Camera
- IP Camera
- Distributed Power Systems
Key features
- Built-in Low RDS(ON) Power-MOSFETS
- Efficiency Up to 96%
- 4.5V to 18V Input Voltage Range
- Output Adjustable Down to 0.6V
- 2A Continuous Load Current
- Fixed 1MHz Switching Frequency
- Internal Compensation
- Cycle-by-Cycle Current Limit
- Internal Soft-Start
- Output Over Voltage Protection
- Auto Recovery Hiccup Mode Short Circuit Protectio
- Auto Recovery OTP Protection
- Available in SOT-23-6 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EA8212T6R#C2935470Everanalog IC design · SOT-23-6 | Everanalog IC design | SOT-23-6 | 4,320 | ₹7.79 · 4,320 in stock | View |
| EA8212AT6R#C575414Everanalog IC design · SOT-23-6 | Everanalog IC design | SOT-23-6 | On request | ₹22.03 · 0 in stock | View | |
