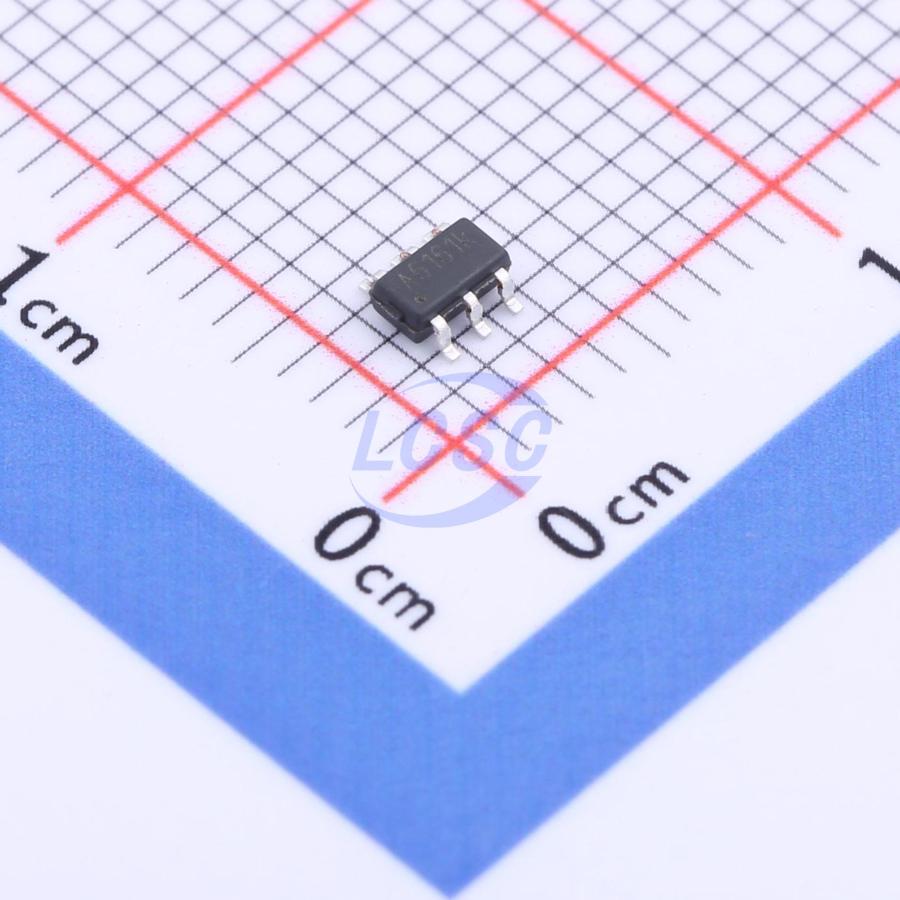

EA8212T6R
500kHz Step-down type Adjustable 600mV~12V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V, 2A, 500KHz Synchronous Buck Converter
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA8212T6R
- Store part #
- C2935470
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,320 in stock
#C2935470
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.79 | ₹77.90 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.52 | ₹1,656.00 |
| 3,000+ | ₹4.78 | ₹14,340.00 |
| 6,000+ | ₹4.33 | ₹25,980.00 |
| 9,000+ | ₹4.10 | ₹36,900.00 |
10 × ₹7.79
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA8212T6R
₹77.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~12V
- Output Current
- 2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The EA8212 is a 2A buck regulator, designed to operate from 4.5V to 18V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components and has up to 96% efficiency, ideal for 2A output current applications. The EA8212 is designed to take into account the light load mode operation. At output loading 20mA condition, the efficiency up to 80%. The EA8212 has complete protection functions, including cycle-by-cycle current limit, short circuit protection, OVP, OTP and UVLO protection. The internal compensation design not only allows users to more simplified application, and can reduce the cost of external components. The EA8212 is available in the SOT-23-6 package and easy to use.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EA8212HT6R#C609568Everanalog IC design · SOT-23-6 | Everanalog IC design | SOT-23-6 | 2,406 | ₹12.46 · 2,406 in stock | View |
| EA8212AT6R#C575414Everanalog IC design · SOT-23-6 | Everanalog IC design | SOT-23-6 | On request | ₹22.03 · 0 in stock | View | |
