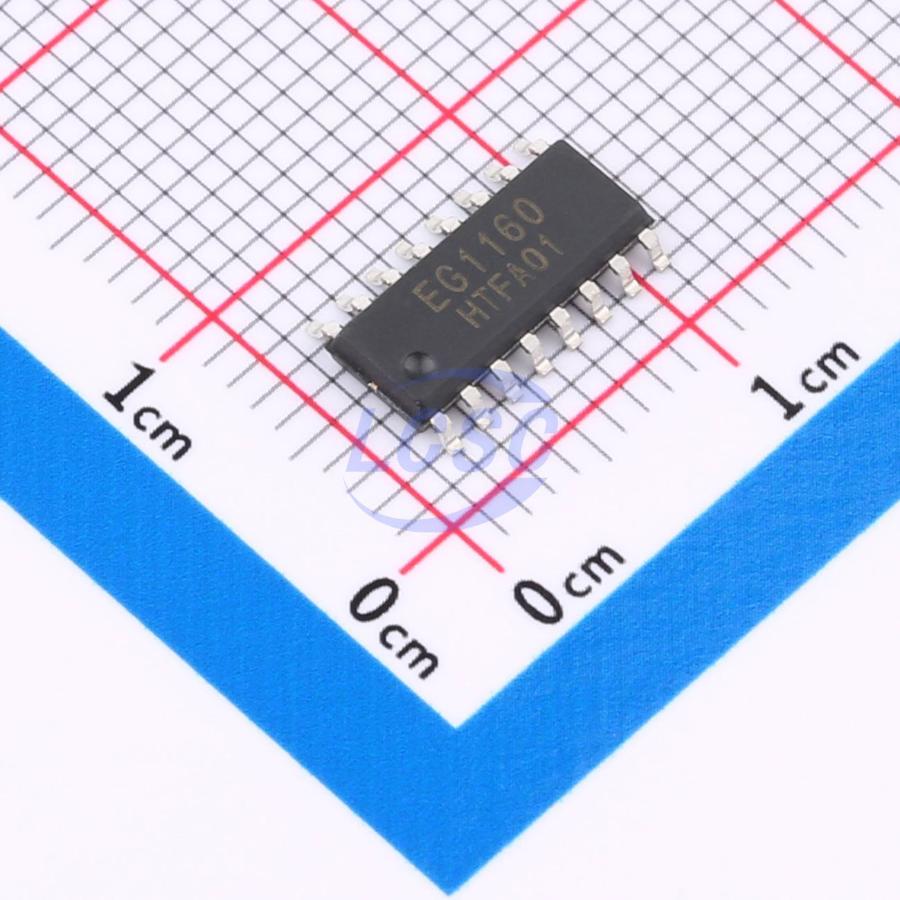

EG1160
Half-Bridge Gate Driver IC MOSFET SOP-16
High-voltage high-current half-bridge driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1160
- Store part #
- C2929081
- Package / case
- SOP-16
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,699 in stock
#C2929081
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.66 | ₹111.66 |
| 10+ | ₹89.55 | ₹895.50 |
| 30+ | ₹78.28 | ₹2,348.40 |
| 100+ | ₹67.43 | ₹6,743.00 |
| 500+ | ₹60.71 | ₹30,355.00 |
| 1,000+ | ₹57.25 | ₹57,250.00 |
1 × ₹111.66
₹111.66
excl. GST
₹131.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG1160
₹111.66 for 1 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 1mA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 120ns
- Fall Time
- 80ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 2.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
EG1160 is a cost-effective, multi-function half-bridge driver IC integrating a 5V linear power supply, op-amp, MOS peak current protection, VCC UVLO, VB UVLO, dead-time control circuit, lockout circuit, level-shift circuit, pulse filter circuit, and output driver circuit. It is well-suited for power supply and motor drive applications. The EG1160 supports a high-side operating voltage up to 600V, a wide low-side VCC supply voltage range of 10V–20V, and quiescent current consumption of less than 1.5mA. The IC features a lockout function to prevent simultaneous conduction of the output power transistors. The HIN and LIN input channels incorporate built-in 200K pull-down resistors to keep both the high-side and low-side power MOSFETs off when the inputs are floating. Output current capability is I0+/- 2A/2.5A. Packaged in SOP16.
Applications
- Sine wave inverter
- Solar controller
- Industrial control system
- Digital generator
- Brushless motor driver
- High-voltage Class-D amplifier
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- Low-side VCC voltage range: 10V - 20V
- Output current capability I0+/- 2A/2.5A
- High-side MOSFET cycle-by-cycle peak current protection
- Low-side MOSFET cycle-by-cycle peak current protection
- Built-in dead-time control circuit
- Integrated lockout function, fully prevents simultaneous conduction of high-side and low-side outputs
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Low-side supply VCC undervoltage lockout protection
- High-side supply VB undervoltage lockout protection
- Package: SOP16
