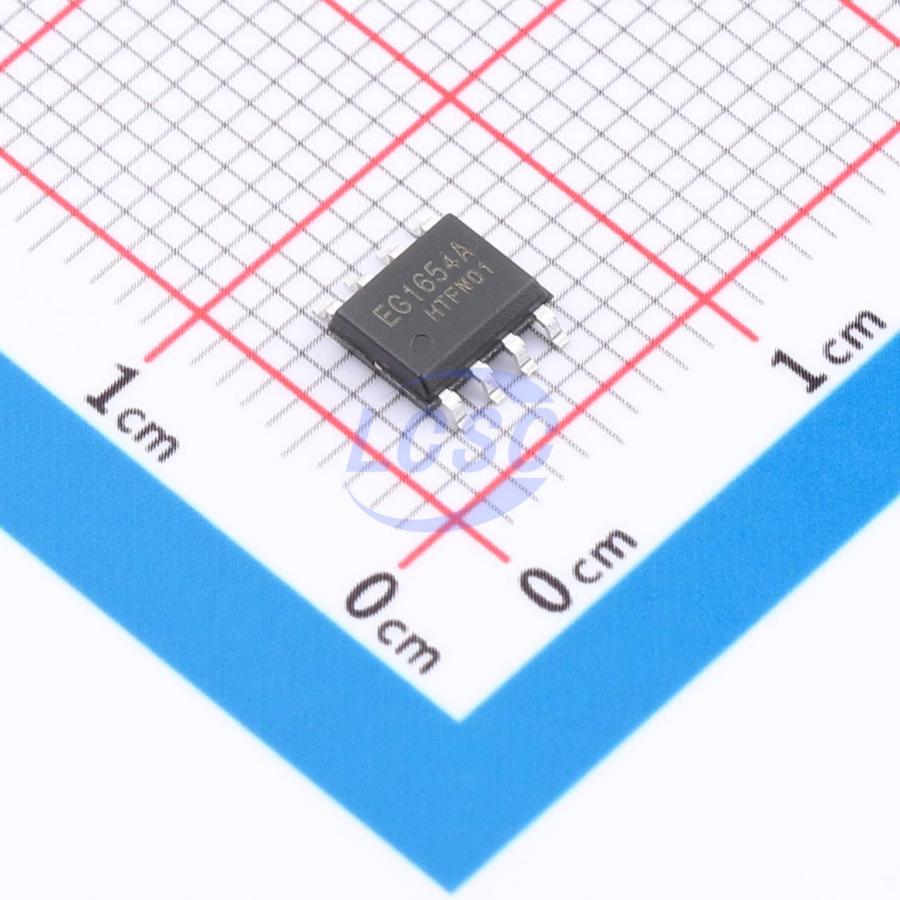

EG1654A
65kHz 10.5V~25V SOP-8 PFC (Power Factor Correction)
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1654A
- Store part #
- C54220815
- Package / case
- SOP-8
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,160 in stock
#C54220815
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.80 | ₹159.00 |
| 50+ | ₹25.12 | ₹1,256.00 |
| 150+ | ₹22.27 | ₹3,340.50 |
| 500+ | ₹18.69 | ₹9,345.00 |
| 2,500+ | ₹17.11 | ₹42,775.00 |
| 4,000+ | ₹16.15 | ₹64,600.00 |
5 × ₹31.80
₹159.00
excl. GST
₹187.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG1654A
₹159.00 for 5 + GST
Specifications
- Frequency - Switching
- 65kHz
- standby current
- 300uA
- Type
- PFCController
- Voltage - Supply
- 10.5V~25V
- Working Mode
- CCM
- Operating Temperature
- -45℃~125℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
EG1654 is a continuous conduction mode active power factor correction controller designed for medium-to-high power switching power supplies. It integrates a high-performance multiplier and divider, combined with an optimized THD circuit to enhance the overall system PF value. In addition, it features comprehensive protection functions, including VCC undervoltage lockout (UVLO), system output overvoltage protection (OVP), cycle-by-cycle current limiting, system output open-loop protection, and bus input undervoltage protection.
Applications
- Monitors, flat-panel TVs
- Telecom power supplies
- Server power supplies
- Desktop computers
- Other offline switching power supplies
Key features
- Average current continuous conduction mode
- Startup current < 75μA
- Shutdown current < 400μA
- Low operating current
- Fast transient response
- ±1.5A drive current capability
- Cycle-by-cycle current limiting
- Voltage reference accuracy ±1.5%
- Input undervoltage lockout (UVLO)
- Output overvoltage protection
- Soft-start function
- Open-loop protection
- Fixed switching frequency 65kHz (internal): EG1654A
- Fixed switching frequency 133kHz (internal): EG1654B
- Fixed switching frequency 200kHz (internal): EG1654C
- Minimal external components
- SOP8 package
