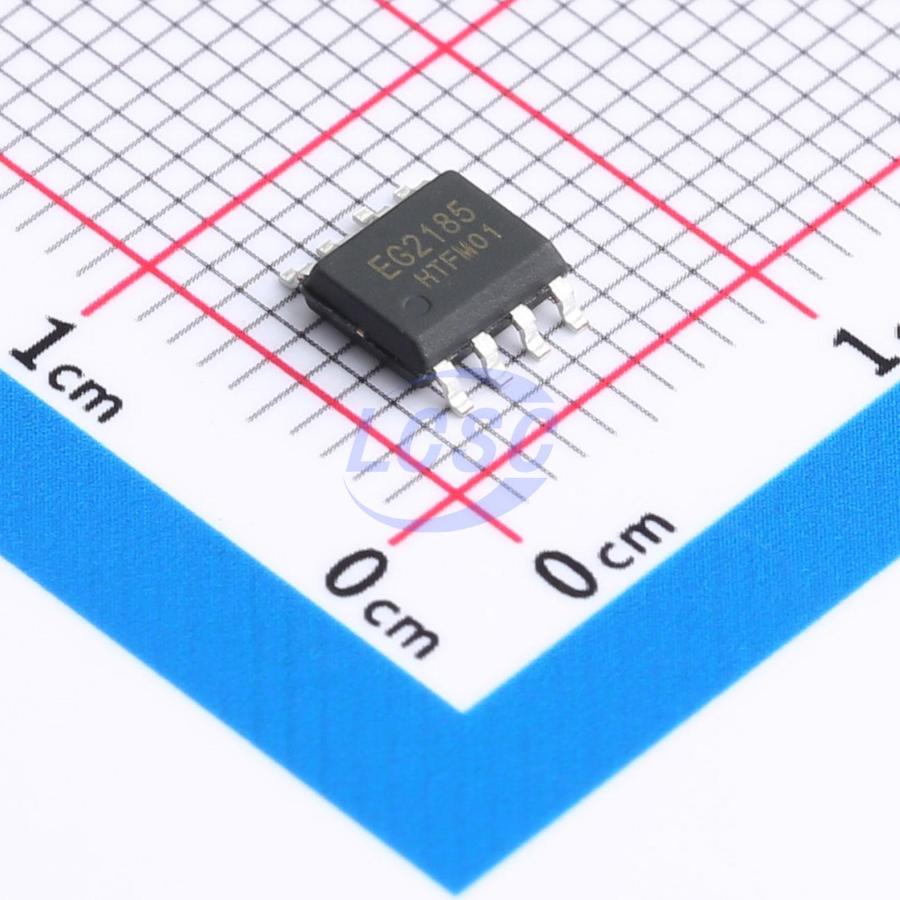

EG2185

EG2185 is a cost-effective gate driver IC dedicated to high-power MOSFETs and IGBTs. It integrates a logic signal input processing circuit, dead-time control circuit, lockout circuit, level-shift circuit, pulse filter circuit, and output driver circuit, designed specifically for drive circuits in brushless motor controllers. The EG2185 supports a high-side operating voltage up to 600V, a wide low-side VCC supply voltage range of 10V~20V, and quiescent current consumption below 200μA. The IC features a lockout function to prevent simultaneous conduction of output power transistors. The HIN input channel has a built-in 250K pull-down resistor, and LIN has a built-in 5V pull-up, ensuring both high-side and low-side power MOSFETs remain off when inputs are floating. Output current capability is IO+/- 4/4A. Available in SOP8 package.

Applications

• Mobile power bank high-voltage fast-charging SMPS
• Electric vehicle controller
• Variable frequency pump controller
• 600V buck SMPS brushless motor driver

Key features

• High-side floating bootstrap power supply design, withstand voltage up to 600V
• Compatible with 5V and 3.3V input voltage
• Maximum switching frequency up to 500KHz
• VCC and VB supply undervoltage lockout (UVLO) protection
• Low-side VCC voltage range: 10V - 20V
• Output current capability: 10+1 - 4A/4A
• Built-in dead-time control circuit
• Integrated lockout function, prevents simultaneous conduction of high-side and low-side outputs
• HIN input channel active-high, controls high-side HO output
• LIN input channel active-low, controls low-side LO output
• Minimal external components
• Package: SOP8, lead-free and halogen-free, RoHS compliant
