EG2226

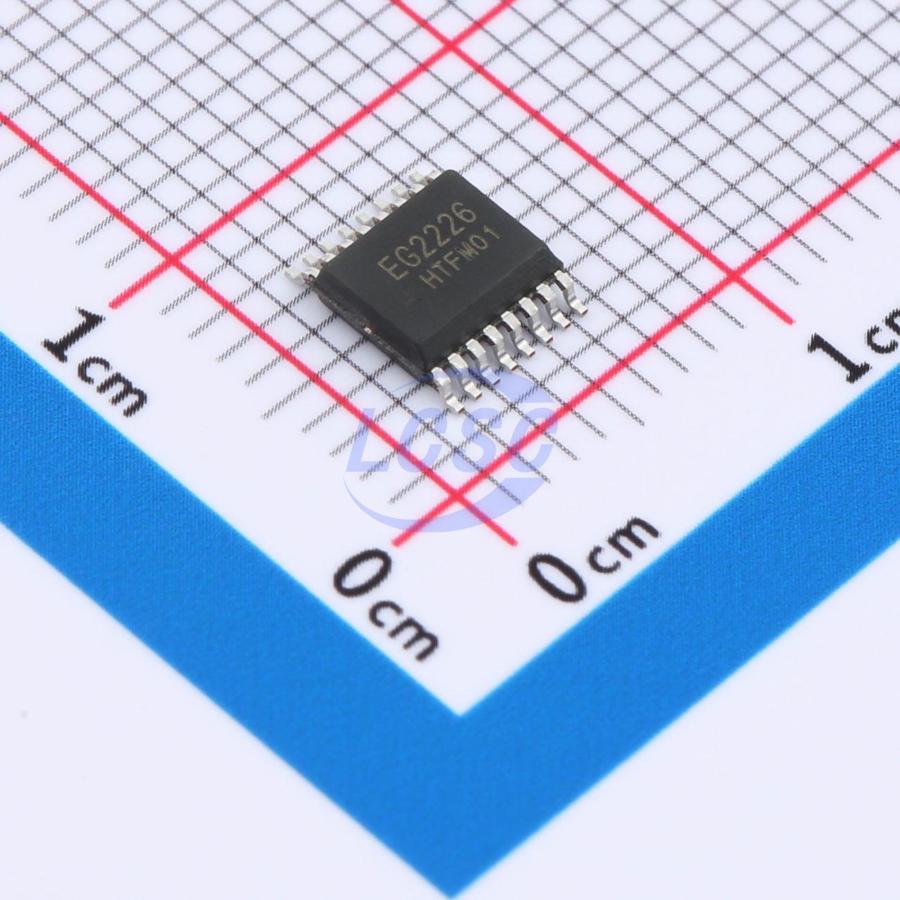

Full-Bridge Gate Driver IC MOSFET SSOP-16
Full-bridge driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2226
- Store part #
- C20416242
- Package / case
- SSOP-16
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,736 in stock
#C20416242
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.18 | ₹64.18 |
| 10+ | ₹50.18 | ₹501.80 |
| 30+ | ₹44.15 | ₹1,324.50 |
| 100+ | ₹36.83 | ₹3,683.00 |
| 500+ | ₹33.38 | ₹16,690.00 |
| 1,000+ | ₹33.17 | ₹33,170.00 |
1 × ₹64.18
₹64.18
excl. GST
₹75.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2226
₹64.18 for 1 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Low Level Delay Time
- 220ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 370uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Full bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1A
- Rise Time
- 350ns
- Fall Time
- 140ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
EG2226 is a cost-effective full-bridge gate driver IC with integrated logic signal input processing, UVLO, lockout, level shifting, pulse filtering, and output drive circuits. The EG2226 supports a high-side operating voltage up to 600V, a wide low-side VCC supply range of 10V~20V, and low quiescent current consumption. The IC features a lockout function to prevent simultaneous conduction of output power transistors. The HIN and LIN input channels include built-in 250K pull-down resistors to keep both high- and low-side power MOSFETs off when inputs are floating. Output current capability is I0+/-Δ 0.6/1.0A. Available in SSOP16 package.
Applications
- Inverter power supplies
- Electric vehicle controllers
- Variable frequency pump controllers
- Brushless motor drivers
- Switching power supplies
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- VCC and VB undervoltage lockout (UVLO) output
- Low-side VCC voltage range: 10V - 25V
- Output current capability I0+/- 0.6A/1.0A
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Minimal external components
- Package: SSOP16
- Lead-free, halogen-free, RoHS compliant
