EG MicroDatasheet (PDF)

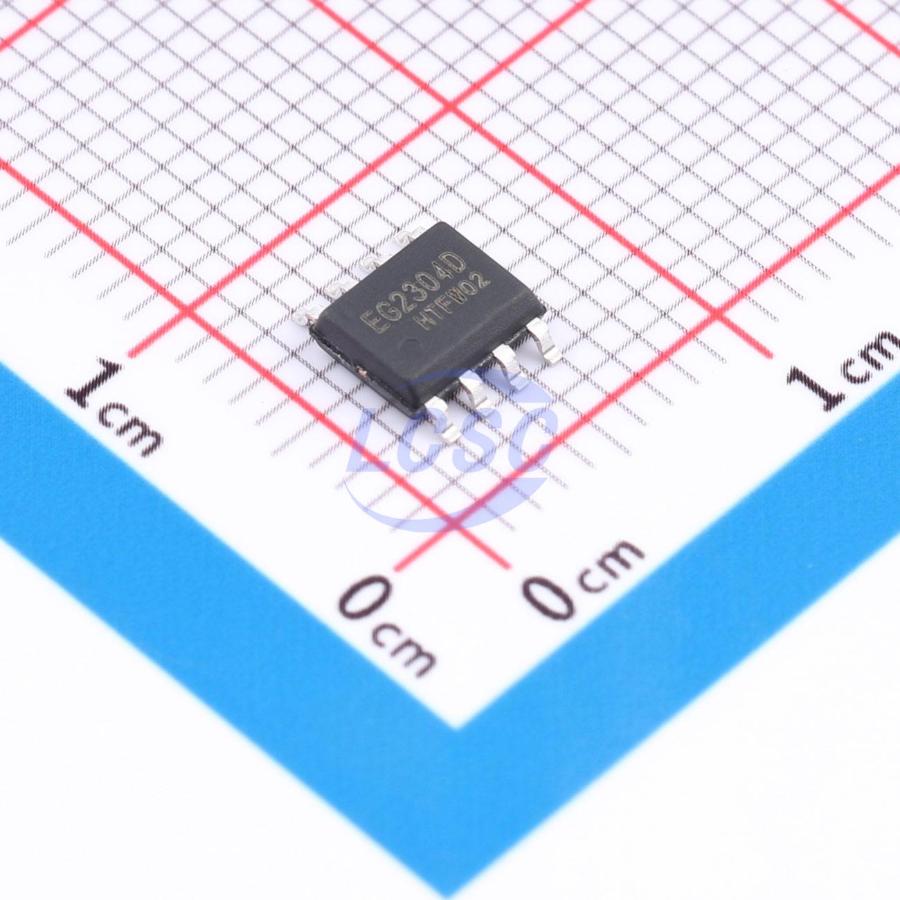

EG2304D
10V~25V 600mA 300mA SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2304D
- Store part #
- C49307961
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,960 in stock
#C49307961
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.24 | ₹176.20 |
| 50+ | ₹27.86 | ₹1,393.00 |
| 150+ | ₹24.70 | ₹3,705.00 |
| 500+ | ₹20.76 | ₹10,380.00 |
| 2,500+ | ₹19.00 | ₹47,500.00 |
| 4,000+ | ₹17.94 | ₹71,760.00 |
5 × ₹35.24
₹176.20
excl. GST
₹207.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2304D
₹176.20 for 5 + GST
Specifications
- Input Logic Level - Low
- 1V
- Low Level Delay Time
- 350ns
- High Level Delay Time
- 230ns
- Quiescent Current
- 150uA
- Input Logic Level - High
- 2.8V
- Voltage - Supply
- 10V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 60ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| EG2103L#C53368403EG Micro · SOP-8 | EG Micro | SOP-8 | 3,885 | ₹23.23 · 3,885 in stock | View | |
| EG2101D#C49450887EG Micro · SOP-8 | EG Micro | SOP-8 | 3,265 | ₹16.64 · 3,265 in stock | View | |
| EG2106L#C54900444EG Micro · SOP-8 | EG Micro | SOP-8 | 3,455 | ₹20.65 · 3,455 in stock | View | |
 | EG2108D#C49307957EG Micro · SOP-8 | EG Micro | SOP-8 | 3,710 | ₹37.72 · 3,710 in stock | View |
| EG2003D#C54795670EG Micro · SOP-8 | EG Micro | SOP-8 | 3,915 | ₹20.73 · 3,915 in stock | View | |
