EG3114

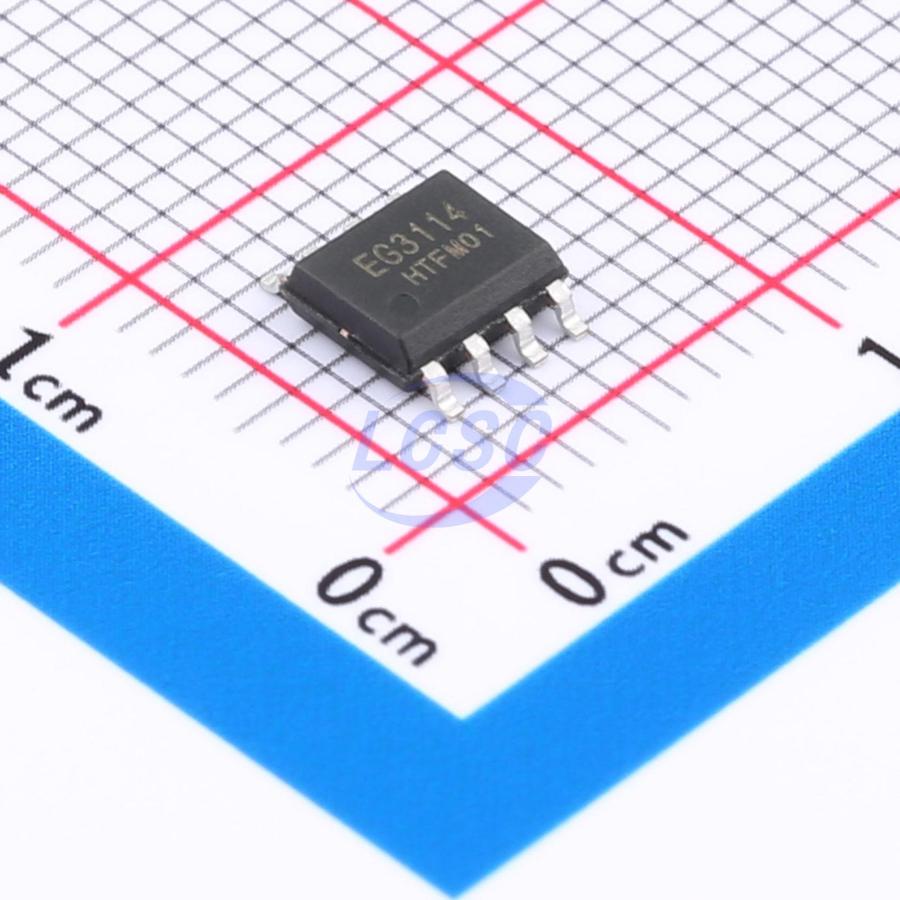

Low Side High Side Gate Driver IC MOSFET IGBT SOP-8
High-power MOSFET and IGBT gate driver chips
- Manufacturer
- EG Micro
- Manufacturer part #
- EG3114
- Store part #
- C20416244
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,498 in stock
#C20416244
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.80 | ₹69.80 |
| 10+ | ₹55.02 | ₹550.20 |
| 30+ | ₹48.50 | ₹1,455.00 |
| 100+ | ₹40.67 | ₹4,067.00 |
| 500+ | ₹37.19 | ₹18,595.00 |
| 1,000+ | ₹35.02 | ₹35,020.00 |
1 × ₹69.80
₹69.80
excl. GST
₹82.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG3114
₹69.80 for 1 + GST
Specifications
- Input Logic Level - Low
- -300mV~1.3V
- Low Level Delay Time
- 220ns
- High Level Delay Time
- 180ns
- Quiescent Current
- 170uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 120ns
- Fall Time
- 80ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
EG3114 is a cost-effective gate driver IC designed for high-power MOSFETs and IGBTs. It integrates a logic signal input processing circuit, level-shift circuit, pulse filter circuit, and output driver circuit, dedicated to drive circuits in brushless motor controllers. The EG3114 supports a high-side operating voltage up to 600V, with a wide low-side VCC supply voltage range of 10V~20V and a quiescent current of approximately 200μA. The HIN and LIN input channels feature built-in 250K pull-down resistors, which keep both the high-side and low-side power MOSFETs off when the inputs are left floating. Output current capability is 10+1-4/4A, housed in a SOP8 package.
Applications
- Mobile power bank high-voltage fast-charging SMPS
- Electric vehicle controller
- Variable frequency pump controller
- 600V buck SMPS brushless motor driver
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum frequency support up to 500KHz
- Low-side VCC voltage range 10V - 20V
- Output current capability 10+1-4A/4A
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Input signal interlocking
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
