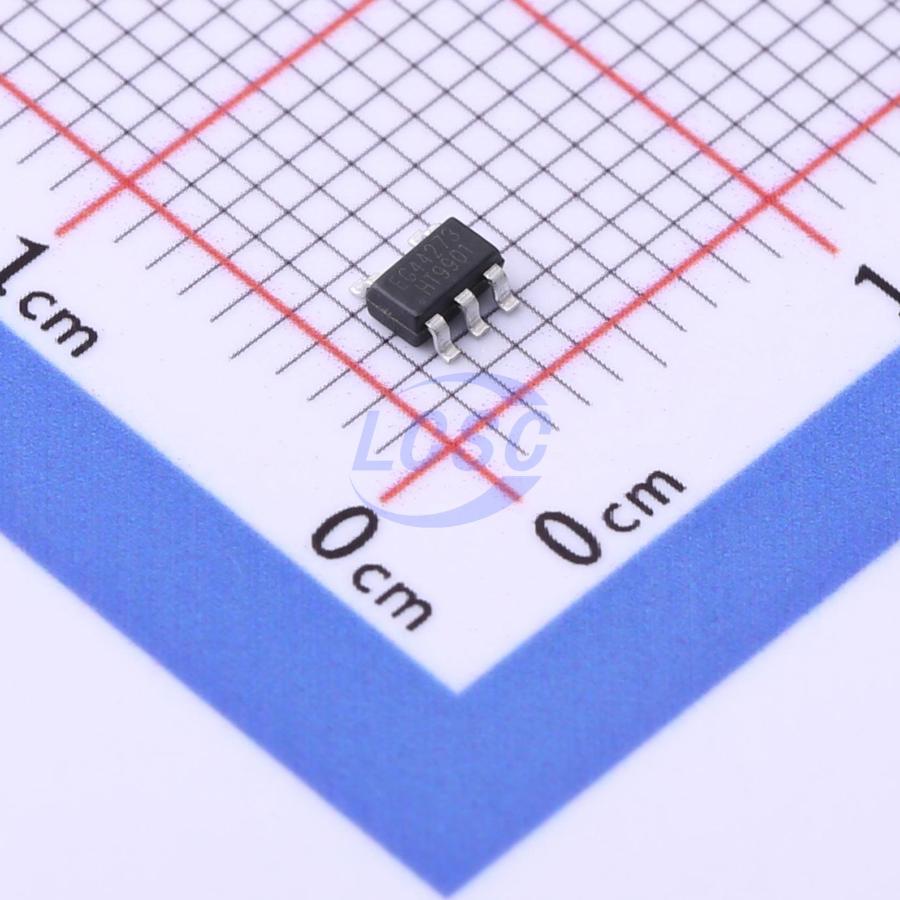

EG44273
Low Side Gate Driver IC MOSFET IGBT SOT-23-5
Low-side single-channel driver chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG44273
- Store part #
- C2987460
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,085 in stock
#C2987460
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.03 | ₹150.15 |
| 50+ | ₹23.76 | ₹1,188.00 |
| 150+ | ₹21.08 | ₹3,162.00 |
| 500+ | ₹17.71 | ₹8,855.00 |
| 3,000+ | ₹14.74 | ₹44,220.00 |
| 6,000+ | ₹13.85 | ₹83,100.00 |
5 × ₹30.03
₹150.15
excl. GST
₹177.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG44273
₹150.15 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 1uA
- Voltage - Supply
- 4V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
EG44273 is a single-channel high-speed low-side gate driver capable of effectively driving MOSFET and IGBT power switches. It delivers high peak source/sink current pulses for capacitive loads, while providing rail-to-rail drive capability and short propagation delay. Wide supply voltage range of 4V~20V, quiescent current less than 1uA. At VCC = 12V, it provides symmetric 2A peak sink/source drive capability; available in SOT23-5 package.
Applications
- Switch-mode power supply DC-DC converter digital power gate driver devices
- Solar, UPS transformer drive
Key features
- VCC voltage range: 4V - 20V
- Output current capability: 10 + 1 - 2A/2A
- Short input-to-output propagation delay
- Output held low when input pin is floating
- Minimal external components required
- Quiescent current less than 1uA, ideal for battery-powered applications
- Package: SOT23-5
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EG1416#C5346625EG Micro · SOT23-5 | EG Micro | SOT23-5 | 3,425 | ₹27.41 · 3,425 in stock | View |
 | EG27517#C2987449EG Micro · SOT-23-5 | EG Micro | SOT-23-5 | 5,685 | ₹31.95 · 5,685 in stock | View |
 | EG27519#C2987450EG Micro · SOT-23-5 | EG Micro | SOT-23-5 | 2,445 | ₹28.46 · 2,445 in stock | View |
