VISHAYDatasheet (PDF)

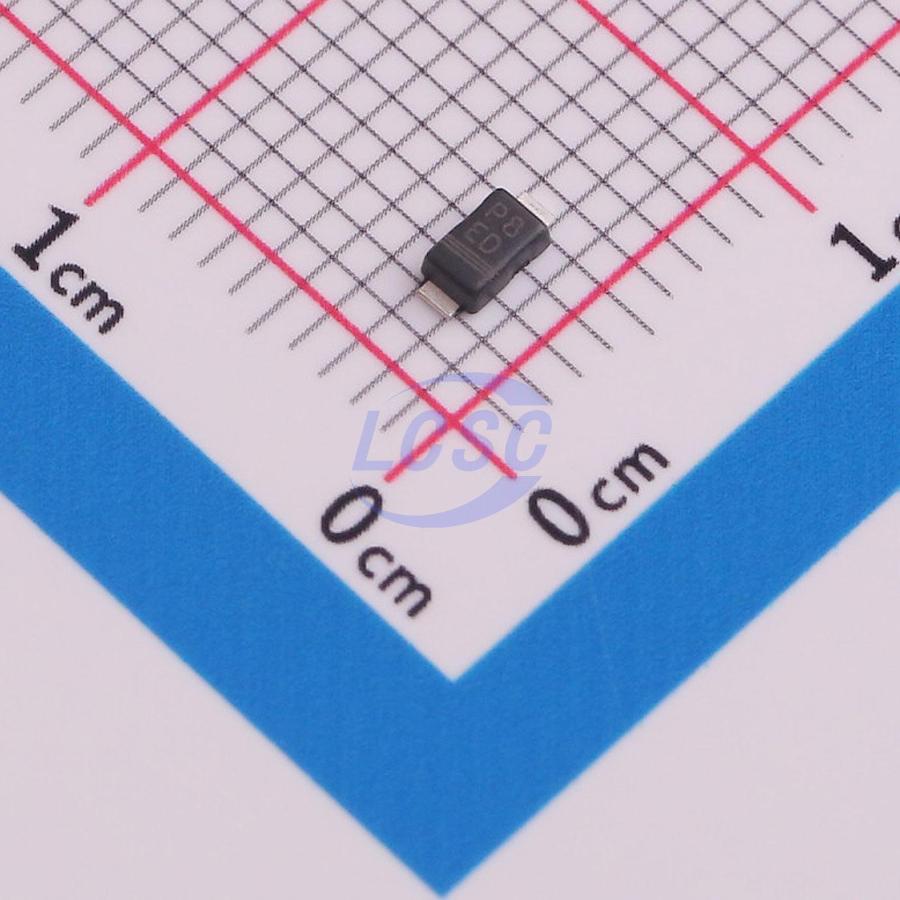

ES07D-GS08
Diode 200V 1.2A Surface Mount SMF
SMFROHS CompliantActive
DIODE STANDARD 200V 1.2A SMF
- Manufacturer
- VISHAY
- Manufacturer part #
- ES07D-GS08
- Store part #
- C145200
- Package / case
- SMF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,225 in stock
#C145200
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.49 | ₹62.45 |
| 50+ | ₹9.78 | ₹489.00 |
| 150+ | ₹8.41 | ₹1,261.50 |
| 500+ | ₹7.40 | ₹3,700.00 |
| 3,000+ | ₹6.59 | ₹19,770.00 |
| 6,000+ | ₹6.18 | ₹37,080.00 |
5 × ₹12.49
₹62.45
excl. GST
₹73.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ES07D-GS08
₹62.45 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 980mV@1A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1.2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Key features
- For surface mounted applications
- Low profile package
- Ideal for automated placement
- Glass passivated pallet chip junction RoHS
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- Meets JESD 201 class 2 whisker test
- Wave and reflow solderable
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS07D-GS08#C145211VISHAY · SMF | VISHAY | SMF | 245 | ₹22.83 · 245 in stock | View |
 | RS07J-GS18#C3032343VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 3,785 | ₹11.22 · 3,785 in stock | View |
 | S07M-M-08#C17617827VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 15 | ₹29.79 · 15 in stock | View |
 | S07M-GS08#C466985VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 72,180 | ₹7.46 · 72,180 in stock | View |
 | SE20FGHM3/I#C17348674VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 15 | ₹49.55 · 15 in stock | View |
