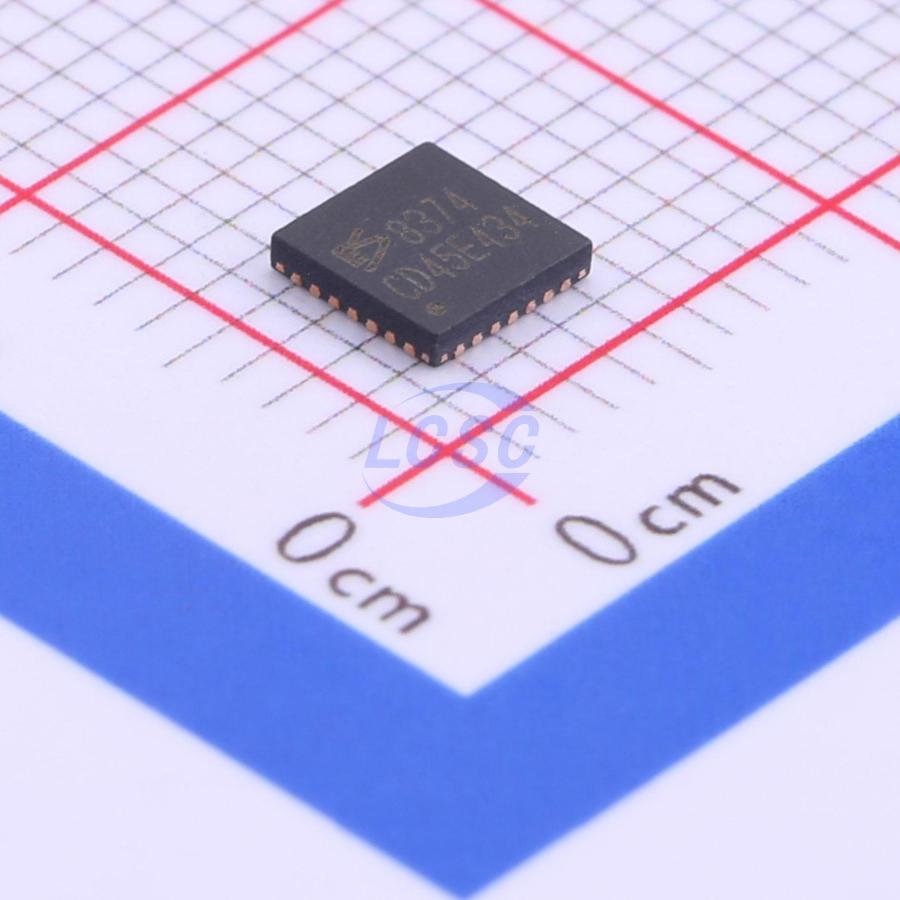

ES8374
I2S 3.3V~5V QFN-28-EP(4x4) ADCs/DACs - Special Purpose RoHS
QFN-28-EP(4x4)ROHS CompliantActive
Low Power Mono Audio CODEC
- Manufacturer
- Everest-semi(Everest Semiconductor)
- Manufacturer part #
- ES8374
- Store part #
- C365738
- Package / case
- QFN-28-EP(4x4)
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,307 in stock
#C365738
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.07 | ₹122.07 |
| 10+ | ₹99.74 | ₹997.40 |
| 30+ | ₹88.68 | ₹2,660.40 |
| 100+ | ₹77.62 | ₹7,762.00 |
| 500+ | ₹65.49 | ₹32,745.00 |
| 1,000+ | ₹62.01 | ₹62,010.00 |
1 × ₹122.07
₹122.07
excl. GST
₹144.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ES8374
₹122.07 for 1 + GST
Specifications
- Features
- Low noise front-end;Digital filtering;Power-down mode
- Operating Temperature
- -40℃~+85℃
- Interface
- I2S
- ChipType
- Audio Analog-to-Digital Converter
- Voltage - Supply
- 3.3V~5V
- Quiescent Current
- 50uA
- ADC architecture
- Sigma-Delta
- Resolution (Bits)
- 24;96000Hz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.067 g
Overview
Applications
- Car DV
- IP Camera
- DVR, NVR
- Surveillance
Key features
- High performance and low power multi-bit delta-sigma audio ADC and DAC
- I2S/PCM master or slave serial data port
- Two pairs of analog input with differential input option
- Mono analog output
- 256/384Fs, USB 12/24 MHz, fractional PLL for wide range of system clocks
- Standard audio clock output
- Sophisticated analog input and output routing, mixing and gain
- GPIO
- I²C interface
- 24-bit, 8 to 96 kHz sampling frequency
- 95 dB signal to noise ratio, -85 dB THD+N
- Low noise pre-amplifier
- Noise reduction filters
- Auto level control (ALC) and noise gate
- Support analog and digital microphone
- Microphone bias
- 24-bit, 8 to 96 kHz sampling frequency
- 95 dB signal to noise ratio, -85 dB THD+N
- 1.25W@8Ω/5V or 1.8W@4Ω/4.2V mono class D speaker driver
- Dynamic range compression
- Headphone and external mic detection
- Pop and click noise suppression
- 3.3V to 5V operation
- 32 mW playback; 42 mW playback and record
- Low standby current
