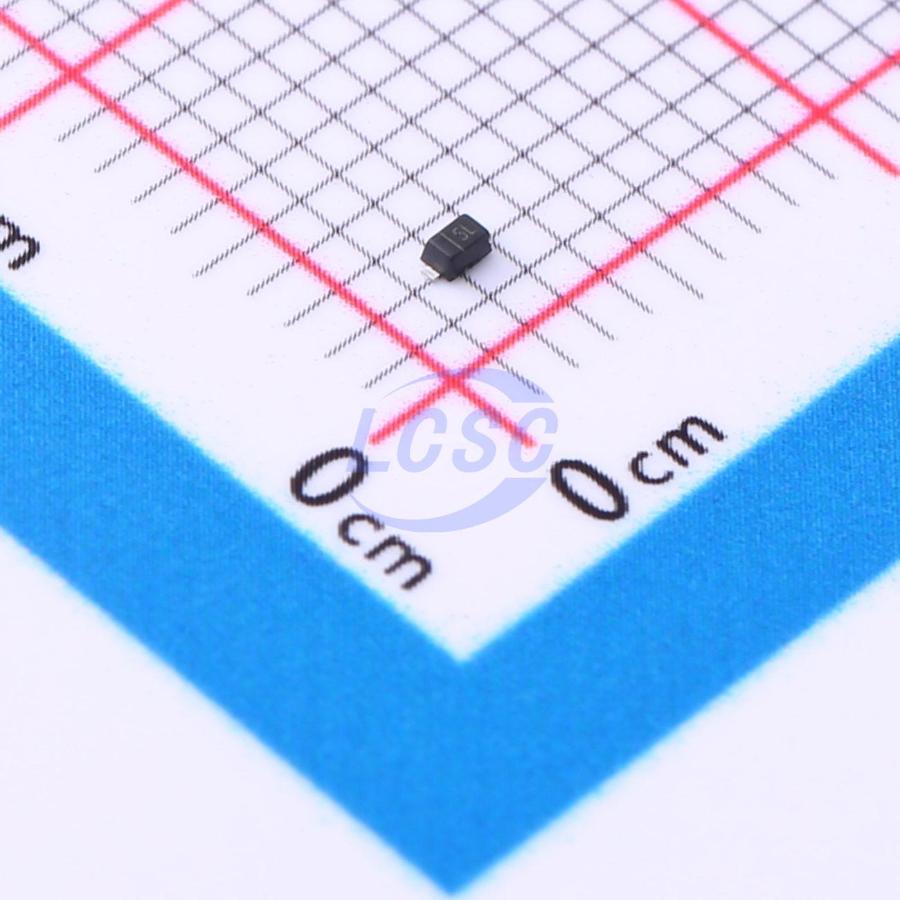

ESD5V0U05-523
14VC Clamp 4A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 14VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5V0U05-523
- Store part #
- C2858706
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C2858706
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.97 | ₹69.70 |
| 100+ | ₹5.50 | ₹550.00 |
| 300+ | ₹4.78 | ₹1,434.00 |
| 3,000+ | ₹4.23 | ₹12,690.00 |
| 6,000+ | ₹3.80 | ₹22,800.00 |
| 9,000+ | ₹3.57 | ₹32,130.00 |
10 × ₹6.97
₹69.70
excl. GST
₹82.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5V0U05-523
₹69.70 for 10 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays
Key features
- Ultra low capacitance: 0.5pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 4A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
