onsemi

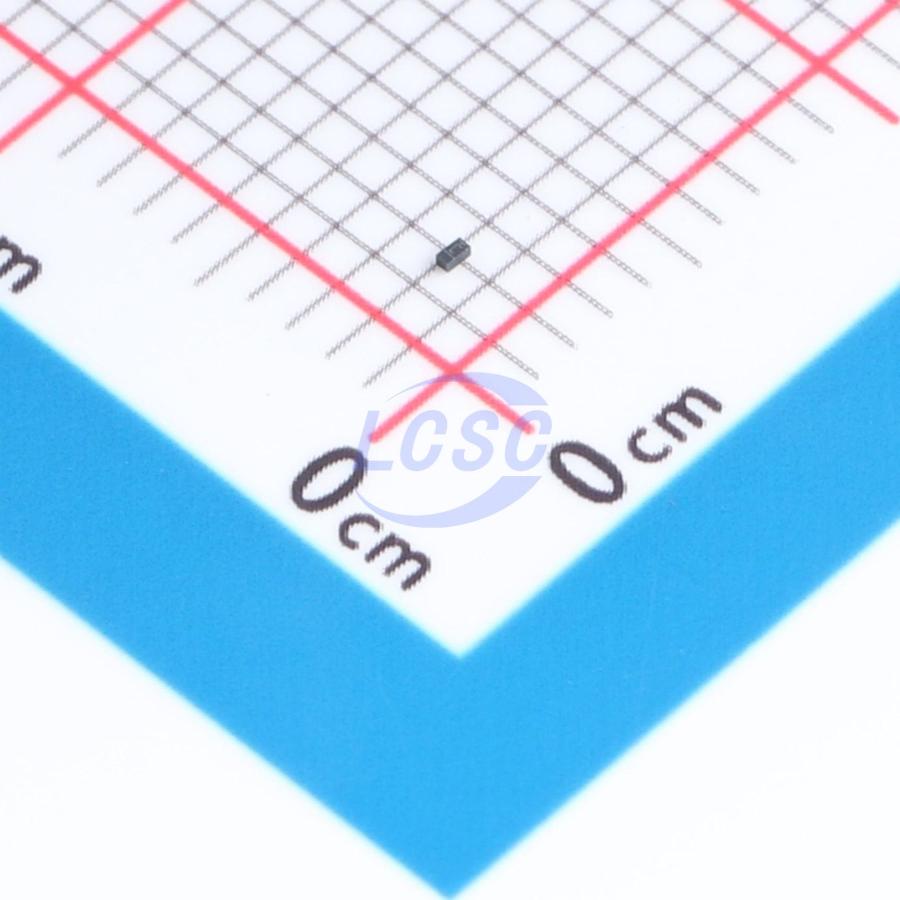

ESD8351MUT5G

11.2VC Clamp ESD DIODE 0201

0201ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: ESD8351MUT5G
Store part #: C463452
Package / case: 0201
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C463452

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹51.37	₹51.37
10+	₹50.51	₹505.10
30+	₹50.09	₹1,502.70
100+	₹49.44	₹4,944.00

Quantity (min 1)

1 × ₹51.37

₹51.37

excl. GST

₹60.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

ESD8351MUT5G

₹51.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 11.2V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 5A@8/20us
Voltage - Breakdown: 5.5V
Number of Channels: 1
type: ESD
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.015 g

Overview

The ESD8351 Series ESD protection diodes are designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines.

Applications

USB 2.0 eSATA

Key features

Low Capacitance (0.55 pF Max, I/O to GND)
Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4) ISO 10605
Low ESD Clamping Voltage
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
