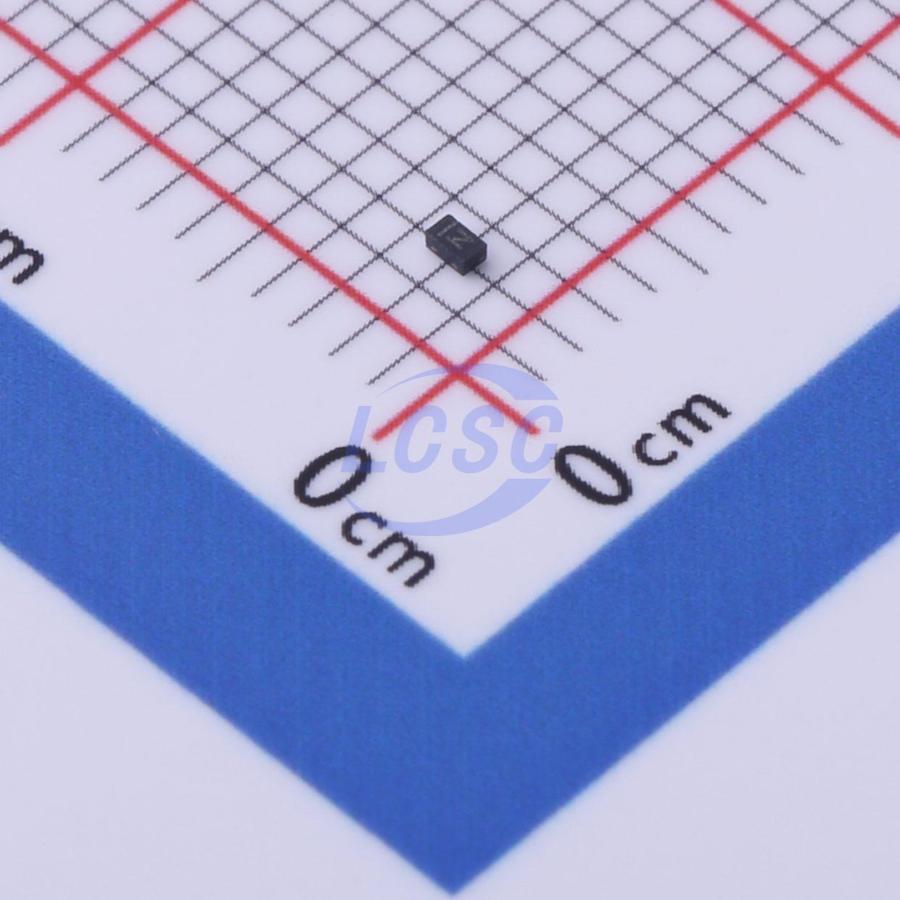

ESDALC6V1-1M2
6A@8/20us Ipp ESD DIODE SOD-882
SOD-882ROHS3 CompliantActive
ESD DIODE 3VWM SOD-882
- Manufacturer
- ST
- Manufacturer part #
- ESDALC6V1-1M2
- Store part #
- C2649894
- Package / case
- SOD-882
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C2649894
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.81 | ₹94.05 |
| 50+ | ₹15.55 | ₹777.50 |
| 150+ | ₹13.92 | ₹2,088.00 |
| 500+ | ₹12.69 | ₹6,345.00 |
| 2,500+ | ₹11.71 | ₹29,275.00 |
| 5,000+ | ₹11.22 | ₹56,100.00 |
5 × ₹18.81
₹94.05
excl. GST
₹110.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
ESDALC6V1-1M2
₹94.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The ESDALC6V1-1M2 is a unidirectional single line TVS diode designed to protect the data lines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required.
Applications
- Computers
- Printers
- Communication systems
- Cellular phone handsets and accessories
- Video equipment
Key features
- Single line low capacitance Transil diode
- Unidirectional ESD protection ESD protection > 30 kV (IEC 61000-4-2 contact discharge) Breakdown voltage VBR = 6.1 V min.
- Low diode capacitance (22 pF @ 0 V)
- Low leakage current (<100 nA @ 3 V)
- Very small PCB area (0.6 mm²) RoHS compliant
