STDatasheet (PDF)

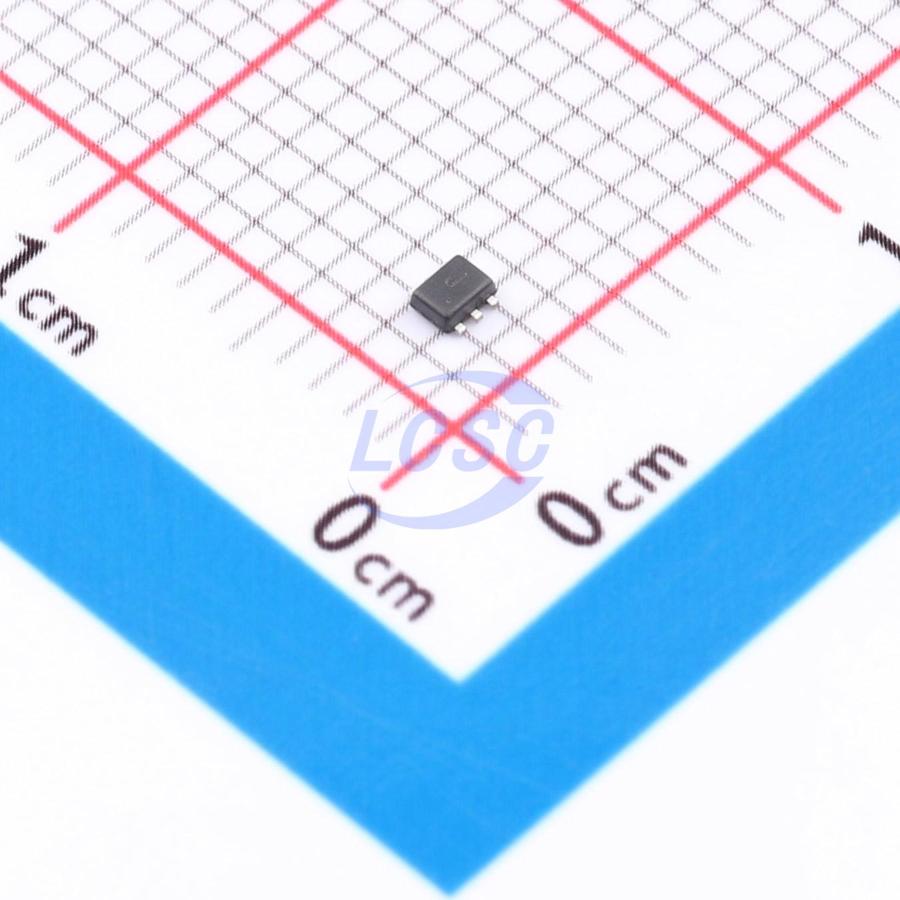

ESDALC6V1-5P6
14VC Clamp 2.5A@8/20us Ipp ESD DIODE SOT-666
SOT-666ROHS3 CompliantActive
ESD DIODE 5VWM 14VC SOT-666
- Manufacturer
- ST
- Manufacturer part #
- ESDALC6V1-5P6
- Store part #
- C2970268
- Package / case
- SOT-666
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,955 in stock
#C2970268
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.51 | ₹132.55 |
| 50+ | ₹21.45 | ₹1,072.50 |
| 150+ | ₹19.28 | ₹2,892.00 |
| 500+ | ₹16.56 | ₹8,280.00 |
| 3,000+ | ₹15.36 | ₹46,080.00 |
| 6,000+ | ₹14.63 | ₹87,780.00 |
5 × ₹26.51
₹132.55
excl. GST
₹156.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDALC6V1-5P6
₹132.55 for 5 + GST
Specifications
- Clamping Voltage
- 10V;14V
- Operating Temperature
- -40℃~+125℃@(Tj)
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 30W@8/20us
- Number of Channels
- 5
- Voltage - Breakdown
- 7.2V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.126 g
Overview
The ESDALC6V1-5P6 is a monolithic array designed to protect up to 5 lines against ESD transients. The device is ideal for high speed interface applications where both reduced printed circuit board space and power absorption capability are required.
Applications
- Computers
- Printers
- Communication systems
- Cellular phone handsets and accessories
- Video equipment
Key features
- Diode array topology
- Low capacitance (12 pF typical)
- Lead-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD5V0L5UV,115#C84255Nexperia · SOT-666-6 | Nexperia | SOT-666-6 | 1,080 | ₹43.22 · 1,080 in stock | View |
| PESD5V0L5UV,125#C552562Nexperia · SOT-666-6 | Nexperia | SOT-666-6 | On request | ₹33.23 · 0 in stock | View | |
