NexperiaDatasheet (PDF)

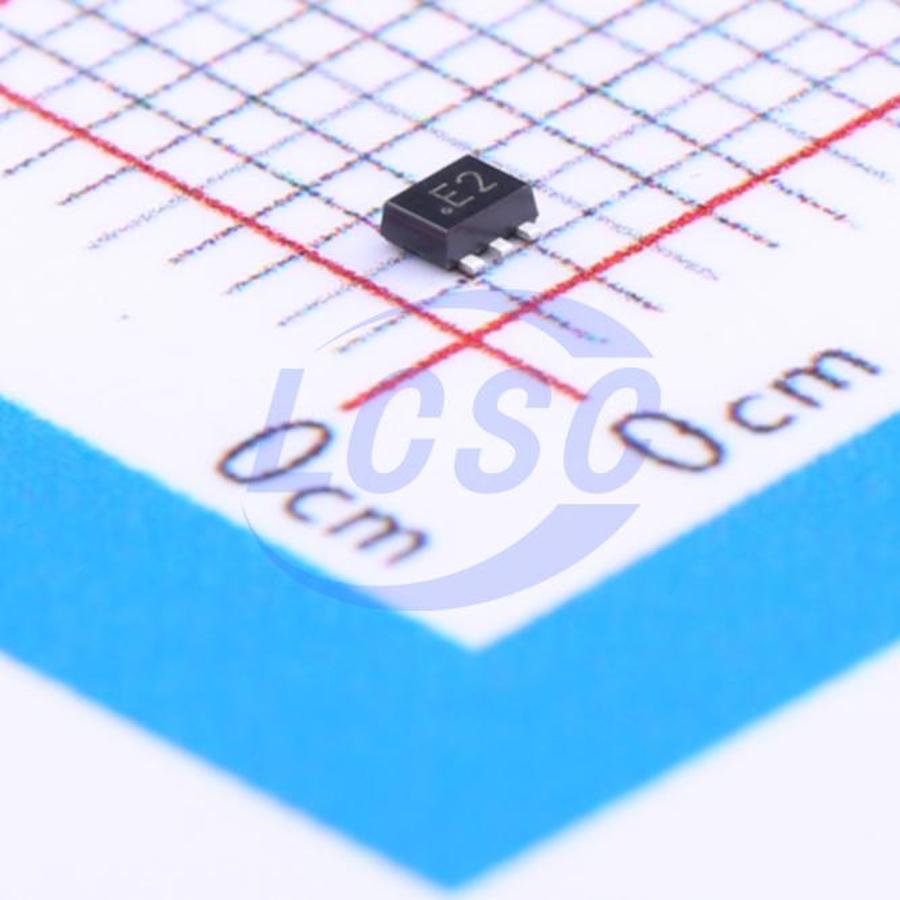

PESD5V0L5UV,115
12VC Clamp 2.5A Ipp ESD DIODE SOT-666-6
SOT-666-6ROHS3 CompliantActive
ESD DIODE 5VWM 12VC SOT-666-6
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0L5UV,115
- Store part #
- C84255
- Package / case
- SOT-666-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C84255
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.22 | ₹216.10 |
| 50+ | ₹33.75 | ₹1,687.50 |
| 150+ | ₹29.70 | ₹4,455.00 |
| 500+ | ₹24.63 | ₹12,315.00 |
| 2,500+ | ₹22.39 | ₹55,975.00 |
| 4,000+ | ₹21.04 | ₹84,160.00 |
5 × ₹43.22
₹216.10
excl. GST
₹255.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PESD5V0L5UV,115
₹216.10 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 2.5A
- Peak Pulse Power Dissipation (Ppp)
- 25W
- Voltage - Breakdown
- 6.4V
- Number of Channels
- 5
- type
- ESD
- Reverse Leakage Current (Ir)
- 5nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Low capacitance unidirectional fivefold ElectroStatic Discharge (ESD) protection diode arrays in small Surface-Mounted Device (SMD) plastic packages designed to protect up to five unidirectional signal lines from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Communication systems
- Portable electronics
- Subscriber Identity Module (SIM) card protection
Key features
- ESD protection for up to five lines
- Low diode capacitance
- Maximum peak pulse power: Ppp= 25W
- Low clamping voltage: VCL= 12V
- Ultra-low leakage current: IRM= 5nA
- ESD protection up to 20kV
- Compliant with IEC 61000-4-2; Level 4 (ESD)
- Compliant with IEC 61000-4-5 (Surge); IPP= 2.5 A
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | USBLC6-2P6#C49451919R+O · SOT-563 | R+O | SOT-563 | 9,035 | ₹15.43 · 9,035 in stock | View |
 | ESDALC6V1-5P6#C2970268ST · SOT-666 | ST | SOT-666 | 5,955 | ₹26.51 · 5,955 in stock | View |
 | ESDA6V8AV6#C5337176HXY MOSFET · SOT-563 | HXY MOSFET | SOT-563 | 2,305 | ₹12.93 · 2,305 in stock | View |
| PESD5V0L5UV,125#C552562Nexperia · SOT-666-6 | Nexperia | SOT-666-6 | On request | ₹33.23 · 0 in stock | View | |
