STDatasheet (PDF)

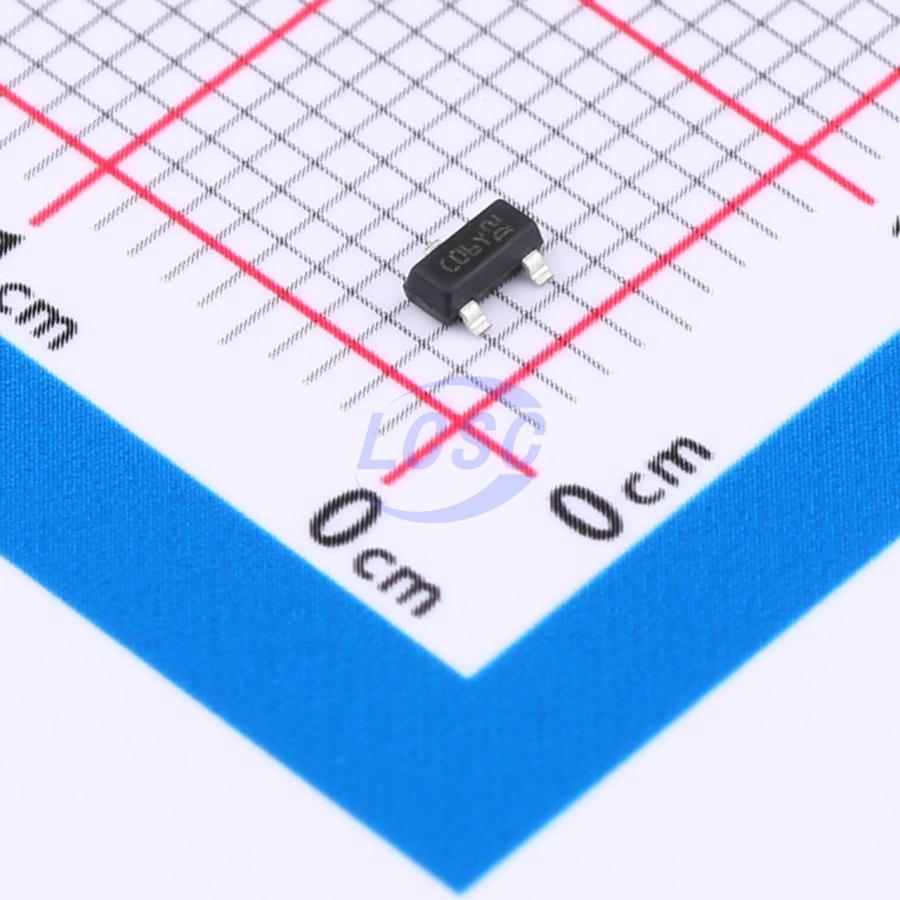

ESDAVLC6-2BLY
12VC 17VC Clamp 5.5A@8/20us Ipp TVS DIODE SOT-23-3
SOT-23-3ROHS3 CompliantActive
TVS DIODE 5VWM 12VC 17VC SOT-23-3
- Manufacturer
- ST
- Manufacturer part #
- ESDAVLC6-2BLY
- Store part #
- C1977179
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C1977179
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.21 | ₹136.05 |
| 50+ | ₹21.60 | ₹1,080.00 |
| 150+ | ₹19.20 | ₹2,880.00 |
| 500+ | ₹16.21 | ₹8,105.00 |
| 3,000+ | ₹14.87 | ₹44,610.00 |
| 6,000+ | ₹14.06 | ₹84,360.00 |
5 × ₹27.21
₹136.05
excl. GST
₹160.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDAVLC6-2BLY
₹136.05 for 5 + GST
Specifications
- Clamping Voltage
- 17V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 10V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The ESDAVLC6-2BLY is a dual-line Transil specifically designed for the protection of the automotive buses lines against electrostatic discharge (ESD). Thanks to its low capacitance, this product is compliant with all key interfaces in automotive applications.
Applications
- Automotive interfaces
Key features
- AEC-Q101 qualified
- Dual-line ESD and EOS protection
- Bidirectional device
- Max. pulse power: 140 W (8/20 μs)
- Low clamping factor VCL/VBR
- Low leakage current
- ECOPACK Q₂ compliant
- Complies with the standard ISO 10605-C=150 pF, R=330 Ω ±13 kV (air discharge) ±13 kV (contact discharge)
- Complies with the standard ISO 10605-C=330 pF, R=330 Ω ±10 kV (air discharge) ±10 kV (contact discharge)
- Complies with the standard ISO 10605-C=330 pF, R=2 kΩ ±30 kV (air discharge) ±30 kV (contact discharge)
- Complies with the standard ISO 7637-3 Fast transient pulse 3a: VS=-150 V Fast transient pulse 3b: VS=+150 V Slow transient pulse 2a: Vs=-85 V Slow transient pulse 2a: VS=+85 V
