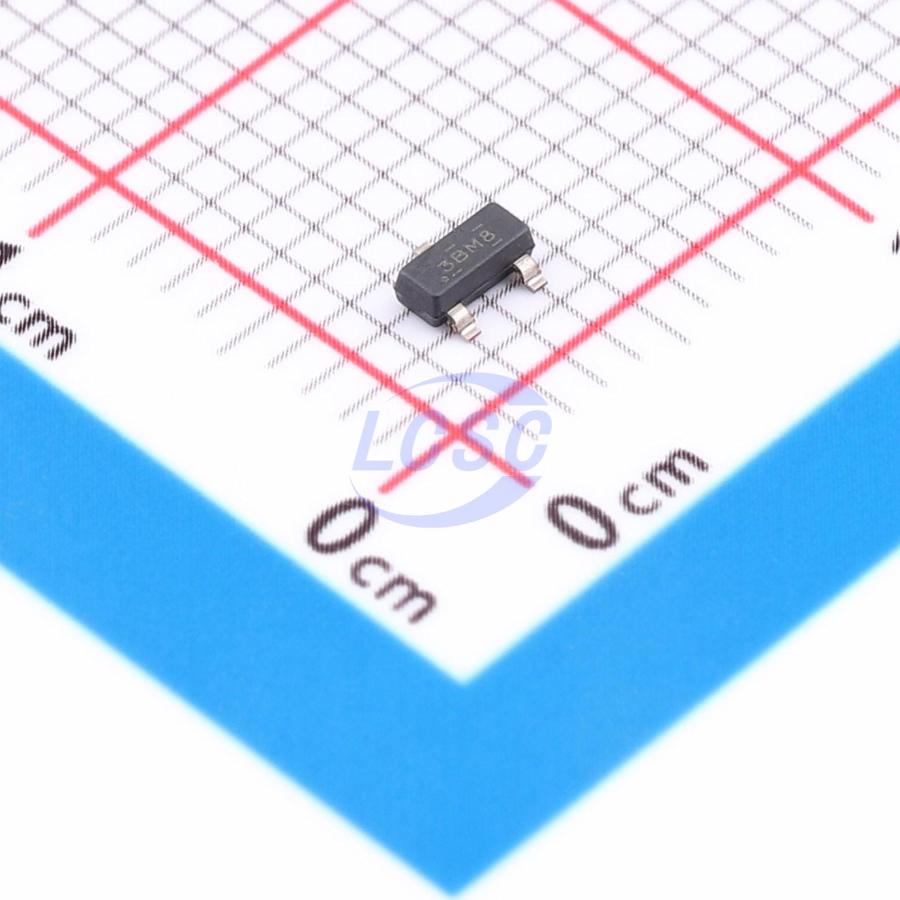

ESDS452DBZRQ1 TI

ESDS452DBZRQ1

11.5VC Clamp 18A@8/20us Ipp TVS DIODE SOT-23

SOT-23ROHS3 CompliantActive

TVS DIODE 5.5VWM 11.5VC SOT-23

Manufacturer: TI
Manufacturer part #: ESDS452DBZRQ1
Store part #: C36965687
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,820 in stock

#C36965687

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹32.28	₹161.40
50+	₹25.55	₹1,277.50
150+	₹22.27	₹3,340.50
500+	₹19.33	₹9,665.00
3,000+	₹18.52	₹55,560.00
6,000+	₹18.05	₹1,08,300.00

Quantity (min 5, multiples of 5)

5 × ₹32.28

₹161.40

excl. GST

₹190.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESDS452DBZRQ1

₹161.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 11.5V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 18A@8/20us
Peak Pulse Power Dissipation (Ppp): 172W@8/20us
Voltage - Breakdown: 8V
Number of Channels: 2
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	ESGSOT05CLT1G#C42420772ElecSuper · SOT-23	ElecSuper	SOT-23	9,600	₹2.50 · 9,600 in stock	View
	TPSL05T1G#C587138TECH PUBLIC · SOT-23	TECH PUBLIC	SOT-23	250	₹7.89 · 250 in stock	View
	MMBZ9V1ALT1G-ES#C19170881ElecSuper · SOT-23	ElecSuper	SOT-23	On request	₹2.69 · 0 in stock	View
