TECH PUBLICDatasheet (PDF)

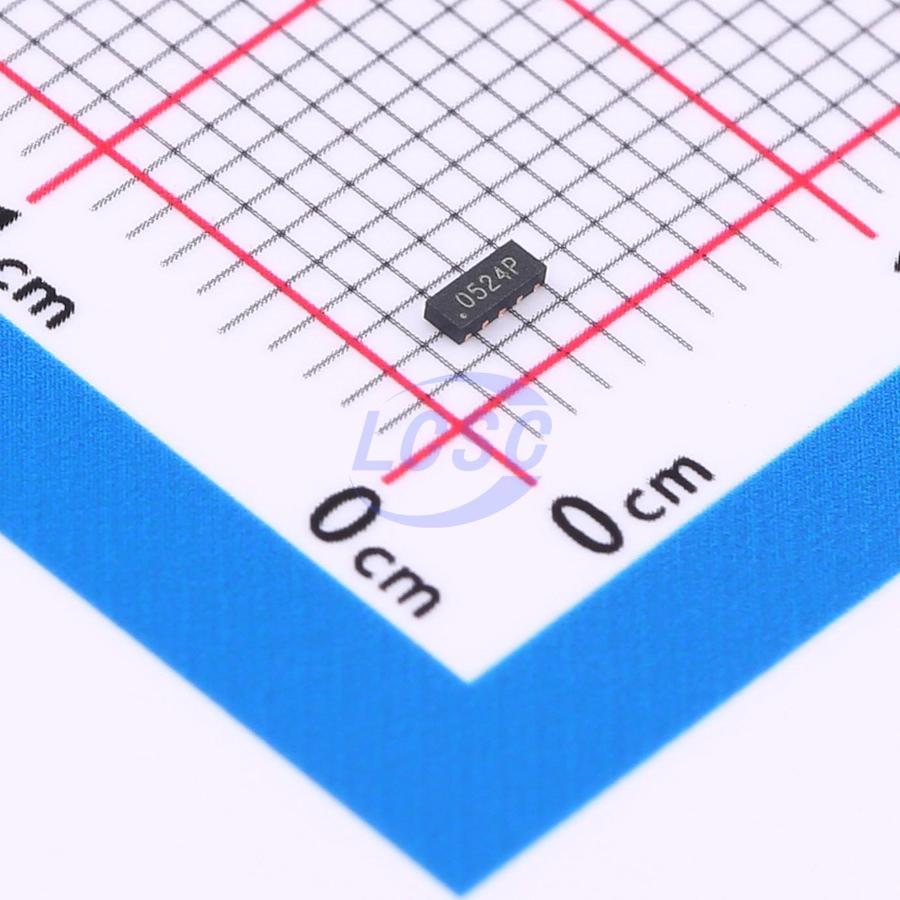

ESDTU5V0AG4B-TP
16VC Clamp 4A@8/20us Ipp TVS DIODE DFN2510-10
DFN2510-10RoHSActive
TVS DIODE 5VWM 16VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDTU5V0AG4B-TP
- Store part #
- C46472774
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C46472774
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.74 | ₹57.40 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹4.02 | ₹1,206.00 |
| 3,000+ | ₹3.59 | ₹10,770.00 |
| 6,000+ | ₹3.24 | ₹19,440.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹5.74
₹57.40
excl. GST
₹67.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDTU5V0AG4B-TP
₹57.40 for 10 + GST
Specifications
- Clamping Voltage
- 9V;16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 9.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCI Express
- Serial ATA
Key features
- Ultra low capacitance: 0.3 pF typical (/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning): 4 A(8/20μs)
- ROHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AZ1345-04F-P#C3021115TECH PUBLIC · DFN2510-10 | TECH PUBLIC | DFN2510-10 | 2,720 | ₹7.95 · 2,720 in stock | View |
 | TPESD05R4UD#C2835426TECH PUBLIC · DFN2510-10 | TECH PUBLIC | DFN2510-10 | 1,760 | ₹14.20 · 1,760 in stock | View |
