HXY MOSFETDatasheet (PDF)

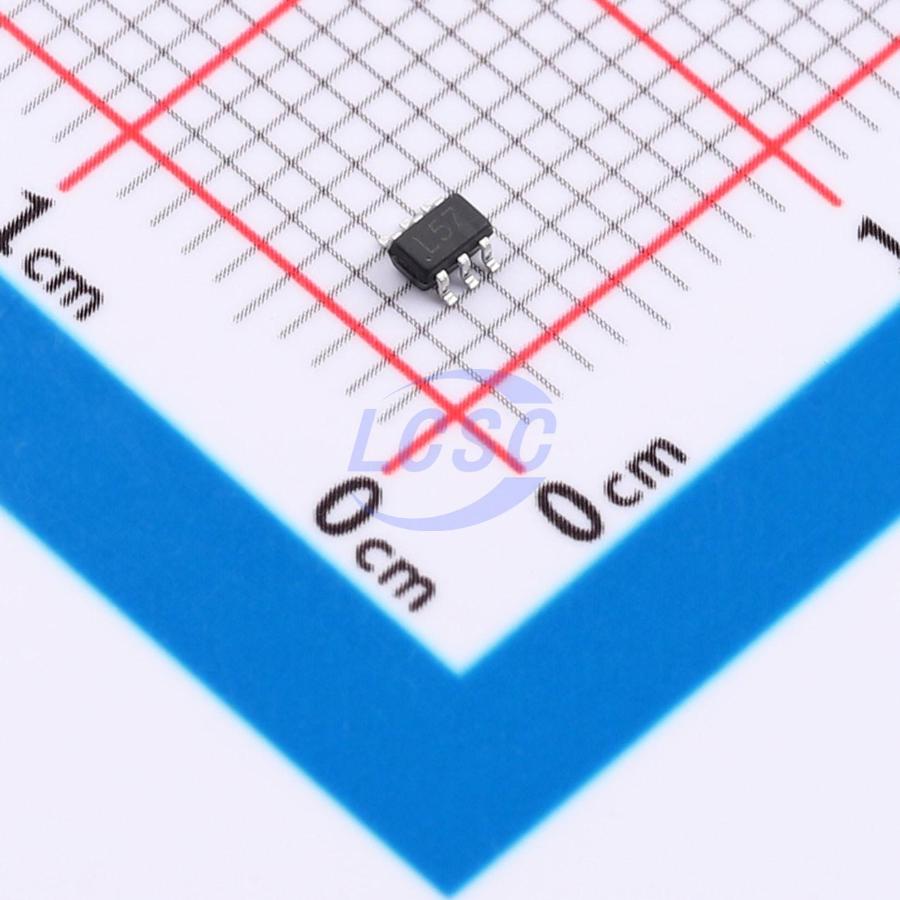

ET3157-HXY
2 Circuit IC SWITCH 2:1 7Ω SC-70-6
SC-70-6RoHSActive
One-out-of-two analog switch circuit
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ET3157-HXY
- Store part #
- C20616363
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,120 in stock
#C20616363
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.99 | ₹599.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 3,000+ | ₹4.55 | ₹13,650.00 |
| 6,000+ | ₹4.11 | ₹24,660.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ET3157-HXY
₹74.40 for 10 + GST
Specifications
- Features
- Fault protection;Glitch-free switching
- Operating Temperature
- -55℃~+125℃
- Ron
- 7Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 800ps
- Con
- 15.5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
ET3157 is a CMOS-based analog switch featuring low power consumption, low propagation delay, and low output impedance. The voltage output range for both analog and digital signals extends from VCC to GND. The Select input incorporates overvoltage protection, allowing input voltages to exceed VCC up to 7V without damaging the pin.
Applications
- Mobile phones
- Portable devices
- Battery-powered equipment
- Computer peripherals
- Analog IC design
- Audio and video signal routing
Key features
- Low power consumption
- High transmission speed
- Standard CMOS logic level switching
- High bandwidth, high linearity
- Suitable for NTSC/PAL video, audio, SPDIF, and HDTV switching applications
- Suitable for clock switching and data selection switching
- Low output impedance
- Break-before-make protection against short circuits
- Operating temperature range: -40°C ~ +85°C
- Package: SO-70-6 (SOT-363)
