MSKSEMI

ET3157-MS

3Ω 1.65V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers

SC-70-6RoHSActive

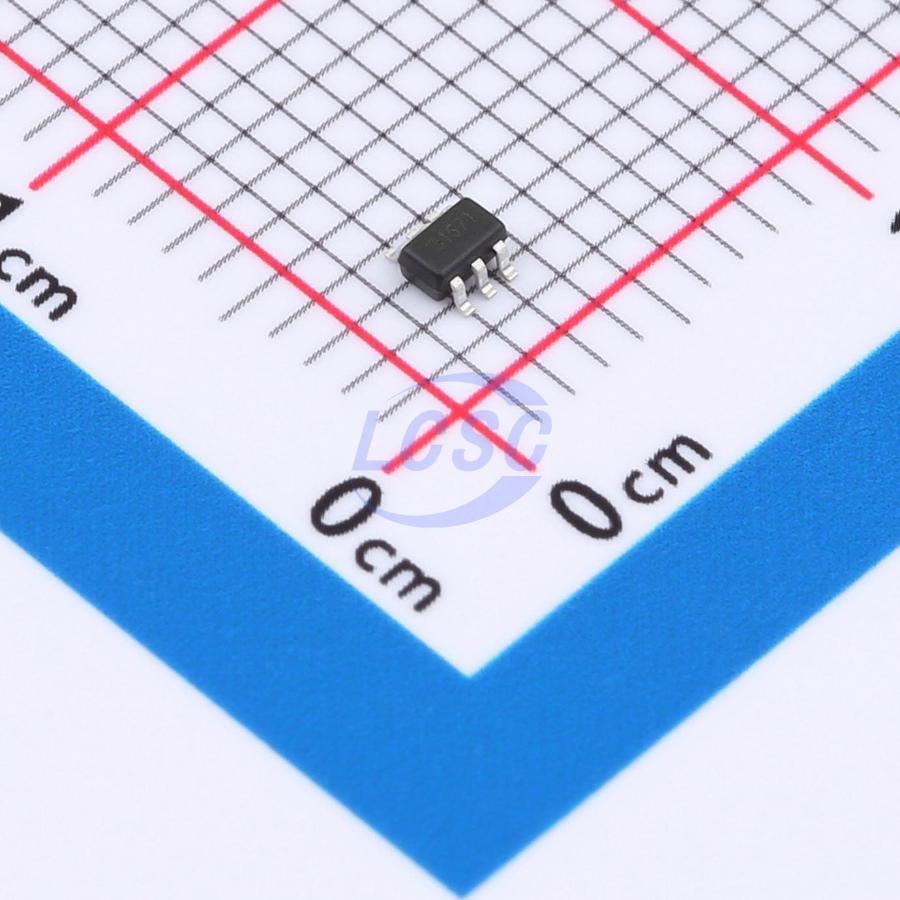

ET3157-MS High-Speed, Low-Power CMOS Analog Switch

Manufacturer: MSKSEMI
Manufacturer part #: ET3157-MS
Store part #: C30602481
Package / case: SC-70-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,960 in stock

#C30602481

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.27	₹92.70
100+	₹7.24	₹724.00
300+	₹6.23	₹1,869.00
1,000+	₹5.46	₹5,460.00
5,000+	₹5.07	₹25,350.00
10,000+	₹4.76	₹47,600.00

Quantity (min 10, multiples of 10)

10 × ₹9.27

₹92.70

excl. GST

₹109.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ET3157-MS

₹92.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Fault protection;Glitch-free switching
Operating Temperature: -55℃~+125℃
Ron: 3Ω
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 300ps
Con: 15.5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

The ET3157-MS is an advanced CMOS analog switch fabricated with silicon gate CMOS technology. It achieves very low propagation delay while maintaining CMOS low power dissipation. Analog and digital voltages that may vary across the full power−supply range (from VCC to GND). The Select pin has over voltage protection that allows voltages above VCC, up to 7.0 V to be present on the pin without damage or disruption of operation of the part, regardless of the operating voltage.

Key features

Low power dissipation High speed
Standard CMOS logic levels
High bandwidth, improved linearity
Switches Standard NTSC/PAL Video, Audio, SPDIF and HDTV be used for Clock Switching, Data Mux’ing, etc.
Low RDSON
Break Before Make Circuitry, Prevents Inadvertent Shorts
Operating temperature - -55°C~+125°C
package : SC70-6
