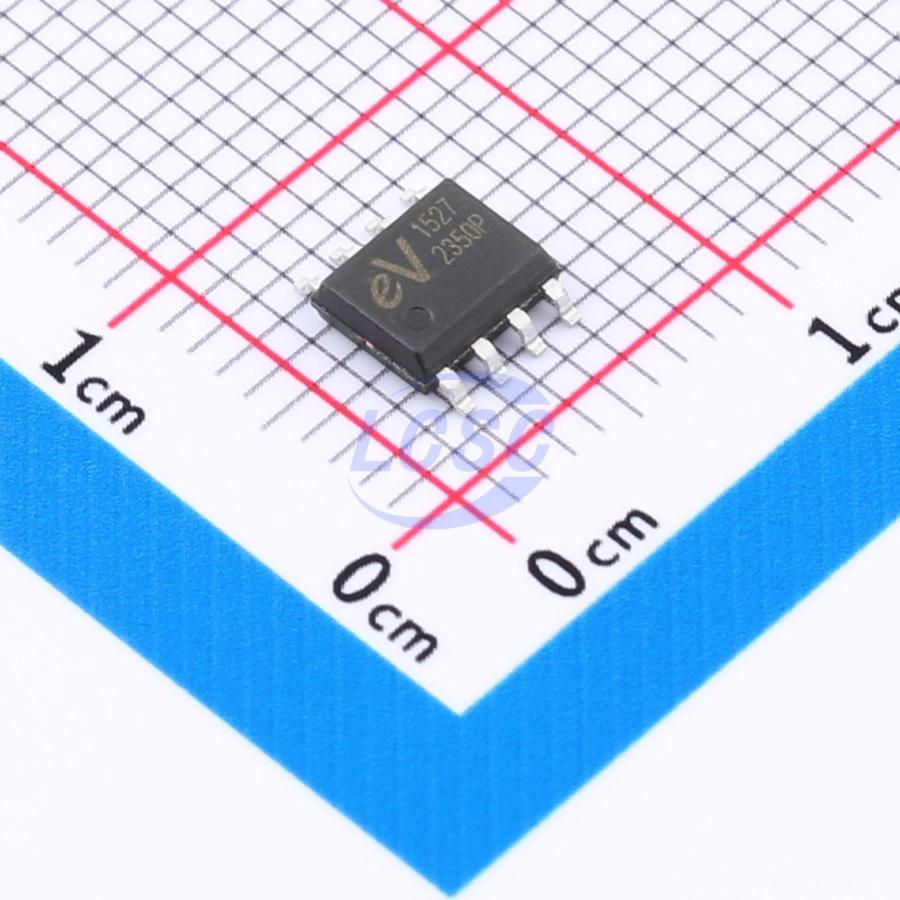

Vollgo

eV1527

3V~13V 1uA SOP-8 Signal Switches, Multiplexers, Decoders RoHS

SOP-8ROHS CompliantActive

Learning code encoding IC with pre - burnable internal code

Manufacturer: Vollgo
Manufacturer part #: eV1527
Store part #: C20539409
Package / case: SOP-8
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

21,900 in stock

#C20539409

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹13.57	₹67.85
50+	₹10.45	₹522.50
150+	₹8.90	₹1,335.00
500+	₹7.74	₹3,870.00
2,500+	₹6.91	₹17,275.00
4,000+	₹6.43	₹25,720.00

Quantity (min 5, multiples of 5)

5 × ₹13.57

₹67.85

excl. GST

₹80.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

eV1527

₹67.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Decoder
Voltage - Supply: 3V~13V
Operating Temperature: -20℃~+70℃
Quiescent Current: 1uA
Current - Output High(IOH): 5mA
Current - Output Low(IOL): 3mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.177 g

Overview

eV1527 is a learning code encoder IC fabricated with CMOS technology, featuring pre-programmable fixed codes decoded by software. The fixed code consists of 20 bits, supporting 1,048,576 (2²⁰) code combinations, significantly reducing the probability of code duplication in use.

Key features

Low quiescent current √(1.0μA)
Operating voltage VCC = 3.0 - 13V
Four key inputs, combinable up to 15 keys
Built-in oscillator circuit, only one external resistor required (recommended value 330K)
Compact 8-pin SMD package
Extremely convenient for production, no PCB encoding required
Package type: SOP8
