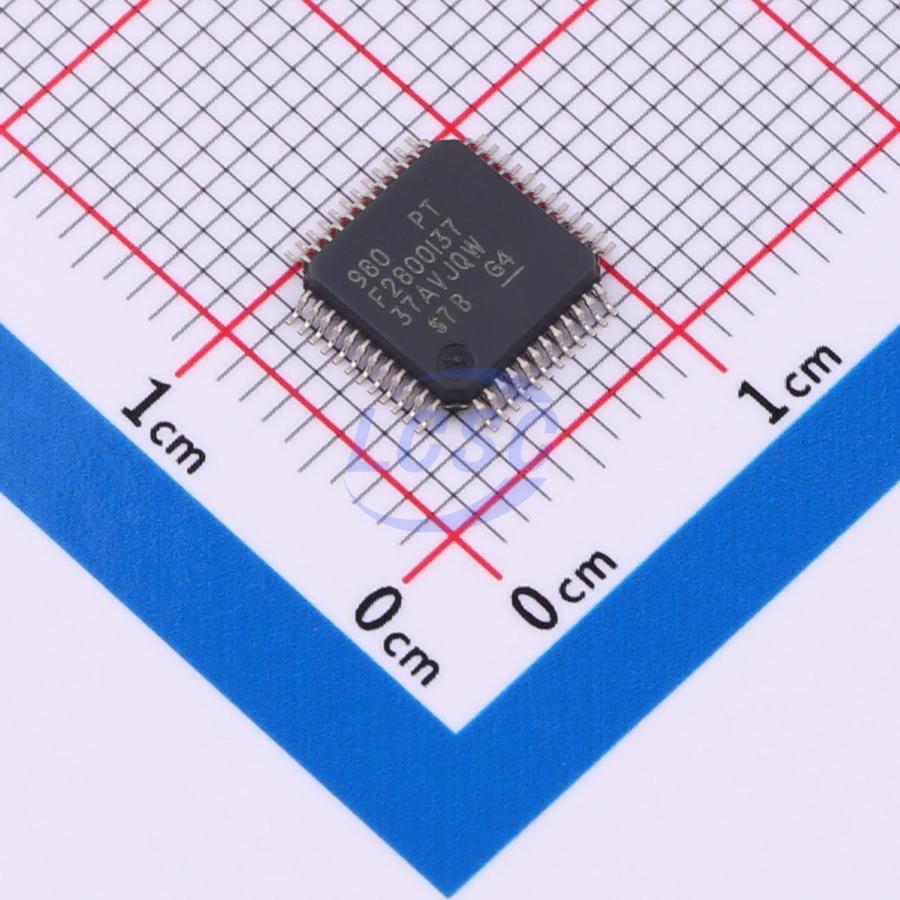

F2800137PTR

The TMS320F280013x (F280013x) is a member of the C2000 real-time microcontroller family of scalable, ultra-low latency devices designed for efficiency in power electronics. The real-time control subsystem is based on TI’s 32-bit C28X DSP core, which provides 120 MHz of signalprocessing performance for floating- or fixed-point code running from either on-chip flash or SRAM. The C28X CPU is further boosted by the Trigonometric Math Unit (TMU), speeding up common algorithms key to real-time control systems. The F280013x supports up to 256KB (128KW) of flash memory. Up to 36KB (18KW) of on-chip SRAM is also available to supplement the flash memory. High-performance analog blocks are integrated into the F280013x real-time microcontroller (MCU) and are closely coupled with the processing and PWM units to provide optimal real-time signal chain performance. Fourteen PWM channels enable control of various power stages from a 3-phase inverter to power-factor correction and other advanced multilevel power topologies. Interfacing is supported through various industry-standard communication ports (such as SPI, SCI, I2C, and CAN) and offers multiple pin-muxing options for optimal signal placement.

Applications

• Air conditioner outdoor unit
• Washer & dryer
• Robotic lawn mower
• Merchant telecom rectifiers
• Appliances pumps & fans
• Appliances: compressor
• Cordless handheld garden tool
• Cordless power tool
• Lawn mower
• Mains powered tools
• Cooker hood
• Dishwasher
• Refrigerator & freezer
• Air conditioner indoor unit
• Vacuum robot
• Air purifier & humidifier
• Cordless vacuum cleaner
• Mixer, blender & food processor
• Residential & living fan
• Building automation: Automated door & gate, HVAC motor control
• Factory automation & control: Actuator, Automated sorting equipment
• Mobile robot motor controller
• Textile machine
• Motor drives: AC drive control module, AC drive power stage module, Linear motor power stage, Drone propeller ESC, Servo drive control module, Servo drive power stage module, AC - input BLDC motor drive, DC - input BLDC motor drive, Closed loop stepper, Open loop stepper
• Industrial power: Industrial AC - DC
• Portable power station
• UPS: Single - phase line interactive UPS, Single - phase online UPS
• Telecom & server power: Merchant DC/DC, Merchant network & server PSU, Merchant telecom rectifiers
• Grid infrastructure: Micro inverter, Rapid shutdown, Solar arc protection, Solar charge controller, Solar power optimizer

Key features

• Real-time processing 120-MHz C28x 32-bit DSP CPU
• Floating Point Unit (FPU) for more precise mathematical calculations
• Trigonometric Math Unit (TMU) speeds up algorithms key to real-time control systems
• On-chip memory: 256KB (128KW) of single bank flash (ECC - protected), 36KB (18KW) of RAM (ECC/Parity - protected)
• Security: JTAGLOCK, Zero - pin boot, Dual - zone security
• Clock and system control: Two internal 10 - MHz oscillators, External resistor support for improved internal oscillator performance (ExtR), Crystal oscillator or external clock input, Windowed watchdog timer module, Missing clock detection circuitry, Dual - clock Comparator (DCC)
• 3.3 - V I/O design: Internal VREG generation, Brownout reset (BOR) circuit
• System peripherals: 38 individually programmable multiplexed General - Purpose Input/Output (GPIO) pins (11 shared with Analog), 10 digital inputs on analog pins, Enhanced Peripheral Interrupt Expansion (ePIE), Multiple low - power mode (LPM) support, Unique Identification (UID) number
• Communications peripherals: Two Inter - integrated Circuit (I2C) interfaces, One Controller Area Network (CAN/DCAN) bus port, One Serial Peripheral Interface (SPI) port, Three UART - compatible Serial Communication Interface (SCI)
• Two 4 - MSPS, 12 - bit Analog - to - Digital Converters (ADCs), Up to 21 external channels (11 shared with GPIO), Four integrated Post - Processing Blocks (PPB) per ADC, One windowed comparator (CMPSS) with 12 - bit reference
• Digital - to - Analog Converters (DACs): Digital glitch filters, COMPDACOUT (11 - bit)
• Three windowed comparators (CMPSS_LITE) with 9.5 - bit effective reference DACs: Digital glitch filters
• Enhanced control peripherals: 14 ePWM channels with two channels that have high - resolution capability (150 - ps resolution), Integrated dead - band support, Integrated hardware trip zones (TZs), Two Enhanced Capture (eCAP) modules, One Enhanced Quadrature Encoder Pulse (eQEP) module with support for CW/CCW operation modes, Embedded Pattern Generator (EPG)
• CMAC Keys (128 - bits) for SW AES
• Package options: 64 - pin Low - profile Quad Flatpack (LQFP) [PM suffix], 48 - pin LQFP [PT suffix], 48 - pin Very Thin Quad Flatpack No Lead (VQFN) [RGZ suffix], 32 - pin VQFN [RHB suffix]
• Temperature options: Ambient (TA): - 40℃ to 125℃
