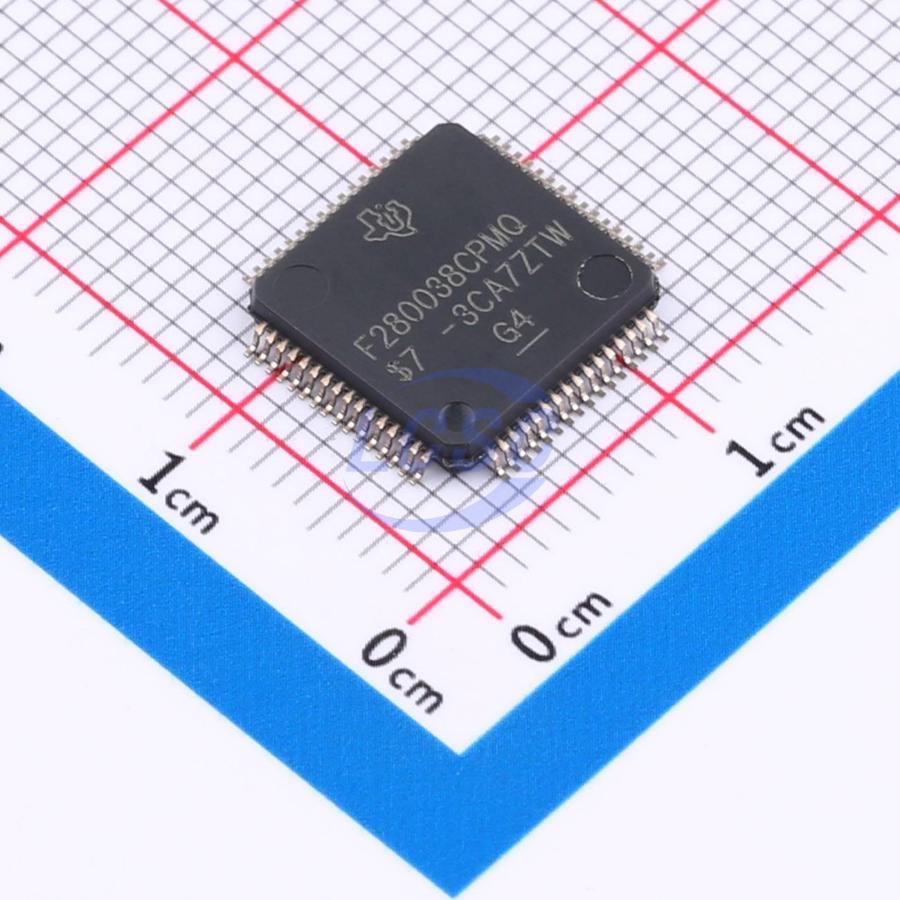

F280038CPMRQ1

The TMS320F28003x (F28003x) is a member of the C2000 real-time microcontroller family of scalable, ultralow latency devices designed for efficiency in p

Applications

• Appliances
• Air conditioner outdoor unit
• Building automation
• Door operator drive control
• Industrial machine & machine tools
• Automated sorting equipment
• Textile machine
• AC inverter & VF drives
• AC drive control module
• AC drive position feedback
• AC drive power stage module
• Linear motor transport systems
• Linear motor power stage
• Single & multi axis servo drives
• Servo drive position feedback
• Servo drive power stage module
• Speed controlled BLDC drives
• AC-input BLDC motor drive
• DC-input BLDC motor drive
• Factory automation
• Robot servo drive
• Mobile robot motor control
• Position sensor
• UPS
• Three phase UPS
• Single phase online UPS
• Merchant DC/DC
• Merchant network & server PSU
• Merchant telecom rectifiers
• Hybrids, electric & powertrain systems
• DC/DC converter
• Inverter & motor control
• On-board (OBC) & wireless charger
• Virtual engine sound system (VESS)
• Engine fan
• eTurbo/charger
• Pump
• Electric power steering (EPS)
• Infotainment and cluster
• Head-up display
• Automotive head unit
• Automotive external amplifier
• Body electronics & lighting
• Automotive HVAC compressor module
• DC/AC inverter
• Headlight
• ADAS
• Mechanically scanning LIDAR
• HEV/EV battery-management system (BMS)
• 100-V battery pack-passive balancing
• 12- & 24-V battery pack-passive balancing
• 400-V battery pack-passive balancing
• 48-V battery pack-passive balancing
• EV charging infrastructure
• AC charging (pile) station
• DC charging (pile) station
• EV charging station power module
• Wireless EV charging station
• Renewable energy storage
• Energy storage power conversion system (PCS)
• Central inverter
• Micro inverter
• Solar power optimizer
• Solar arc protection
• Rapid shutdown
• String inverter

Key features

• TMS320C28x 32-bit DSP core at 120 MHz
• IEEE 754 Floating-Point Unit (FPU)
• Support for Fast Integer Division (FINTDIV)
• Trigonometric Math Unit (TMU)
• Support for Nonlinear Proportional Integral Derivative (NLPID) control
• CRC Engine and Instructions (VCRC)
• Ten hardware breakpoints (with ERAD)
• Programmable Control Law Accelerator (CLA)
• 120 MHz IEEE 754 single-precision floating-point instructions
• Executes code independently of main CPU
• On-chip memory
• 384KB (192KW) of flash (ECC-protected) across three independent banks
• 69KB (34.5KW) of RAM (ECC-protected)
• Dual-zone security
• Secure Boot and JTAG Lock
• Clock and system control
• Two internal 10-MHz oscillators
• Crystal oscillator or external clock input
• Windowed watchdog timer module
• Missing clock detection circuitry
• Dual-clock Comparator (DCC)
• 3.3-V I/O design
• Internal VREG generation allows for singlesupply design
• Brownout reset (BOR) circuit
• System peripherals
• 6-channel Direct Memory Access (DMA) controller
• 55 individually programmable multiplexed General-Purpose Input/Output (GPIO) pins
• 23 digital inputs on analog pins
• 2 digital inputs/outputs on analog pins (AGPIO)
• Enhanced Peripheral Interrupt Expansion (ePIE)
• Multiple low-power mode (LPM) support
• Embedded Real-time Analysis and Diagnostic (ERAD)
• Unique Identification (UID) number
• Communications peripherals
• One Power-Management Bus (PMBus) interface
• Two Inter-integrated Circuit (I2C) interfaces
• One Controller Area Network (CAN/DCAN) bus port
• One Controller Area Network with Flexible Data-Rate (CAN FD/MCAN) bus port
• Two Serial Peripheral Interface (SPI) ports
• Two UART-compatible Serial Communication Interface (SCI)
• Two UART-compatible Local Interconnect Network (LIN) interfaces
• Fast Serial Interface (FSI) with one transmitter and one receiver (up to 200Mbps)
• Analog system
• Three 4-MSPS, 12-bit Analog-to-Digital Converters (ADCs)
• Up to 23 external channels (includes the two gpdac outputs)
• Four integrated Post-Processing Blocks (PPB) per ADC
• Four windowed comparators (CMPSS) with 12-bit reference
• Digital-to-Analog Converters (DACs)
• Digital glitch filters
• Two 12-bit buffered DAC outputs
• Enhanced control peripherals
• 16 ePWM channels with eight channels that have high-resolution capability (150-ps resolution)
• Integrated dead-band support
• Integrated hardware trip zones (TZs)
• Three Enhanced Capture (eCAP) modules
• High-resolution Capture (HRCAP) available on one of the three eCAP modules
• Two Enhanced Quadrature Encoder Pulse (eQEP) modules with support for CW/CCW operation modes
• Eight Sigma-Delta Filter Module (SDFM) input channels (two parallel filters per channel)
• Standard SDFM data filtering
• Comparator filter for fast action for overvalue or undervalue condition
• Embedded Pattern Generator (EPG)
• Configurable Logic Block (CLB)
• 4 tiles
• Augments existing peripheral capability
• Supports position manager solutions
• Host Interface Controller (HIC)
• Access to internal memory from an external host
• Background CRC (BGCRC)
• One cycle CRC computation on 32 bits of data
• Advanced Encryption Standard (AES) accelerator
• Live Firmware Update (LFU)
• Fast context switching from old to new firmware
• Flash bank erase time improvements
• Diagnostic features
• Memory Power On Self Test (MPOST)
• Hardware Built-in Self Test (HWBIST)
• Functional Safety-Compliant targeted
• Developed for functional safety applications
• Documentation available to aid ISO 26262 and IEC 61508 system design
• Systematic capability up to ASIL D and SIL 3 targeted
• Hardware capability up to ASIL B and SIL 2 targeted
• Safety-related certification
• ISO 26262 certification up to ASIL B and SIL 2 by TÜV SÜD planned
• Package options:
• 100-pin Low-profile Quad Flatpack (LQFP) [PZ suffix]
• 80-pin Low-profile Quad Flatpack (LQFP) [PN suffix]
• 64-pin (LQFP) [PM suffix]
• 48-pin (LQFP) [PT suffix]
• Temperature options:
• Free-air (TA): -40℃ to 125℃
• Junction (TJ): -40℃ to 150℃
