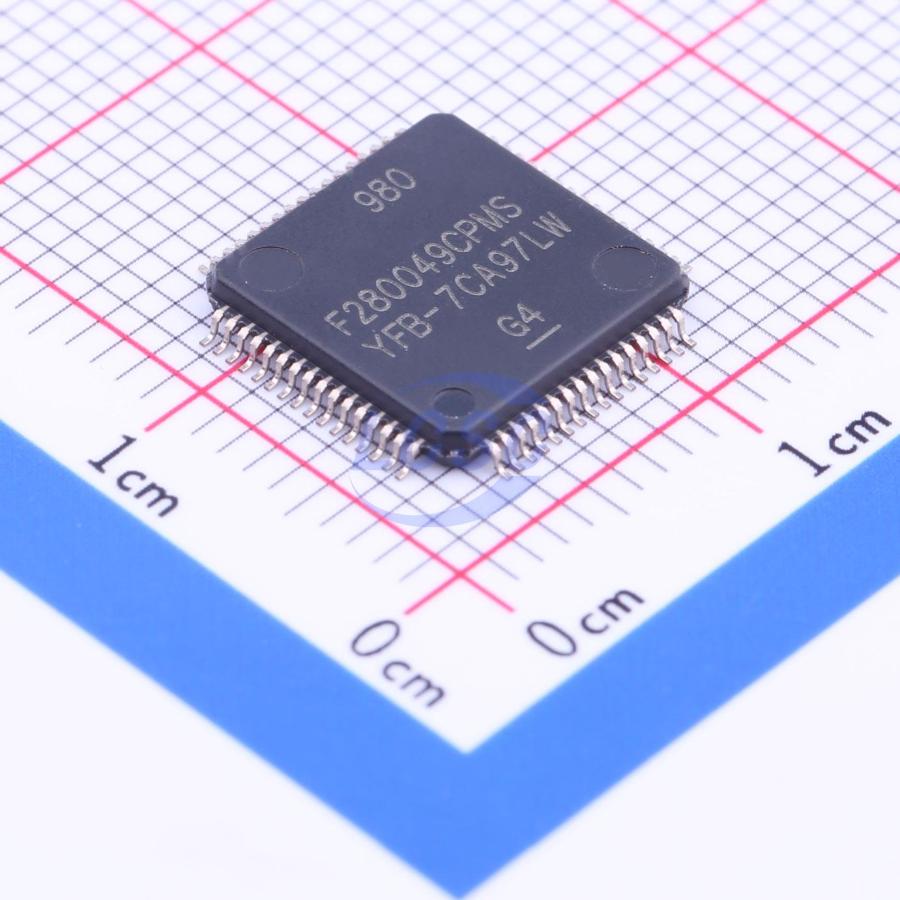

F280049CPMS

Piccolo TMS320F28004x (F28004x) is a powerful 32-bit floating-point microcontroller unit (MCU) that allows designers to integrate critical control peripherals, differential analog, and non-volatile memory on a single device. Real-time control subsystem is based on TI's 32-bit C28x CPU, which provides 100MHz signal processing performance. The performance of the C28x CPU is further enhanced by the new TMU extended instruction set and VCU-I extended instruction set. The TMU extended instruction set can quickly execute algorithms containing trigonometric operations common in transformation and torque loop calculations, and the VCU-I extended instruction set can reduce the latency of complex mathematical operations common in coding applications. CLA allows a large number of common tasks to be offloaded from the C28x CPU. CLA is an independent 32-bit floating-point math accelerator that executes in parallel with the CPU. In addition, CLA has its own dedicated storage resources, which can directly access the main peripherals required in typical control systems. ANSI C subset support is standard, as are key features such as hardware breakpoints and hardware task switching. F28004x supports up to 256KB (128KW) of flash memory, which is divided into two 128KB (64KW) banks to support parallel programming and execution. In addition, up to 100KB (50KW) of on-chip SRAM is provided in 4KB (2KW) and 16KB (8KW) blocks for efficient system partitioning. Flash ECC, SRAM ECC/parity, and dual-region security are also supported. High-performance analog blocks are integrated on the F28004x MCU to further support system integration. Three independent 12-bit ADCs can accurately and efficiently manage multiple analog signals, ultimately improving system throughput. Seven PGAs on the analog front end can achieve on-chip voltage regulation before conversion. Seven analog comparator modules can continuously monitor the input voltage level for trip conditions. TMS 320C2000 devices include industry-leading control peripherals (with frequency-independent ePWM/HRPWM and eCAP), allowing for first-class control of the system. The built-in 4-channel SDFM allows seamless integration of oversampling Σ-Δ modulators across isolation layers. Connectivity is supported through various industry-standard communication ports (such as SPI, SCI, I2C, LIN, and CAN), and multiple multiplexing is provided to achieve optimal signal placement in various applications. A fully compliant PMBus is new to the C2000 platform. In addition, FSI leads the industry in achieving high-speed and reliable communication to complement the rich set of peripherals embedded in the device. The specially implemented device model TMS320F28004xC allows access to a configurable logic block (CLB) for additional connectivity features and also allows access to a secure ROM that contains libraries for supporting InstaSPIN-FOC. For more information, see the device comparison. The embedded real-time analysis and diagnostic (ERAD) module enhances the device's debugging and system analysis capabilities by providing additional hardware breakpoints and counters for analysis.

Applications

• Appliances
• Building Automation
• EV/HEV Powertrain
• Factory Automation
• Grid Infrastructure
• Industrial Transportation
• Medical, Health & Fitness
• Motor Drivers
• Power Delivery
• Telecom Infrastructure
• Test and Measurement

Key features

• TMS320C28x 32-bit CPU
• 100MHz
• IEEE-754 single-precision floating-point unit (FPU)
• Trigonometric math unit (TMU)
• Improved from 3x cycles to 4x cycles for common trigonometric functions and software libraries
• 13-cycle Park transform
• Viterbi/complex math unit (VCU-I)
• Ten hardware breakpoints
• Programmable control law accelerator (CLA)
• 100MHz
• IEEE 754 single-precision floating-point instructions
• Executes code independently of the main CPU
• On-chip memory
• 256KB (128KW) of flash on two independent banks (protected by ECC)
• 100KB (50KW) RAM (ECC protection or parity protection)
• Supports dual-zone security developed by third parties
• Unique identification number
• Clock and system control
• Two internal zero-pin 10MHz oscillators
• On-chip crystal oscillator and external clock input
• Windowed watchdog timer module
• Missing clock detection circuit
• 1.2V core, 3.3V I/O design
• Internal VREG that can generate 1.2V voltage or DC/DC allows for single-power supply design
• Brownout reset (BOR) circuit
• System peripherals
• 6-channel direct memory access (DMA) controller
• 40 independent programmable multiplexed general-purpose input/output (GPIO) pins
• 21 digital inputs on analog pins
• Enhanced peripheral interrupt expansion (ePIE) module
• Supports multiple low-power modes (LPM) with external wake-up function
• Embedded real-time analysis and diagnostics (ERAD)
• Communication peripherals
• One power management bus (PMBus) interface
• One internal integrated circuit (I2C) interface (pins can be bootstrapped)
• Two controller area network (CAN) bus ports (pins can be bootstrapped)
• Two serial peripheral interface (SPI) ports (pins can be bootstrapped)
• Two serial communication interfaces (SCI) (pins can be bootstrapped)
• One local interconnect network (LIN)
• One fast serial interface (FSI) with transmitter and receiver
• Analog system
• Three 3.45MSPS 12-bit analog-to-digital converters (ADC)
• Up to 21 external channels
• Each ADC has four integrated post-processing blocks (PPBs)
• Seven window comparators with 12-bit reference digital-to-analog converters (DAC)
• Digital interference filter
• Two 12-bit buffered DAC outputs
• Seven programmable gain amplifiers (PGA)
• Programmable gain settings: 3, 6, 12, 24
• Programmable output filtering
• Enhanced control peripherals
• 16 ePWM channels with high-resolution function (150ps resolution)
• Integrated dead-time support with high resolution
• Integrated hardware trip zone (TZ)
• Seven enhanced capture (eCAP) modules
• High-resolution capture (HRCAP) provided on two modules
• Two enhanced quadrature encoder pulse (eQEP) modules supporting CW/CCW operation modes
• Four Σ-Δ filter module (SDFM) input channels (two parallel filters per channel)
• Standard SDFM data filtering
• Comparator filter for fast operation in over- or under-estimation situations
• Configurable logic block (CLB)
• Enhances existing peripheral functions
• Supports position manager solutions
• InstaSPIN-FOC
• Sensorless field-oriented control (FOC) and FAST software encoder
• Library in on-chip ROM memory
• Package options
• 100-pin thin quad flat package (LQFP) [suffix PZ]
• 64-pin LQFP [suffix PM]
• 56-pin very thin quad flat no-lead package (VQFN) [suffix RSH]
• Temperature options
• S: -40℃ to 125℃ junction temperature
• Q: -40℃ to 125℃ natural ventilation temperature (for automotive applications)
