VBsemi ElecDatasheet (PDF)

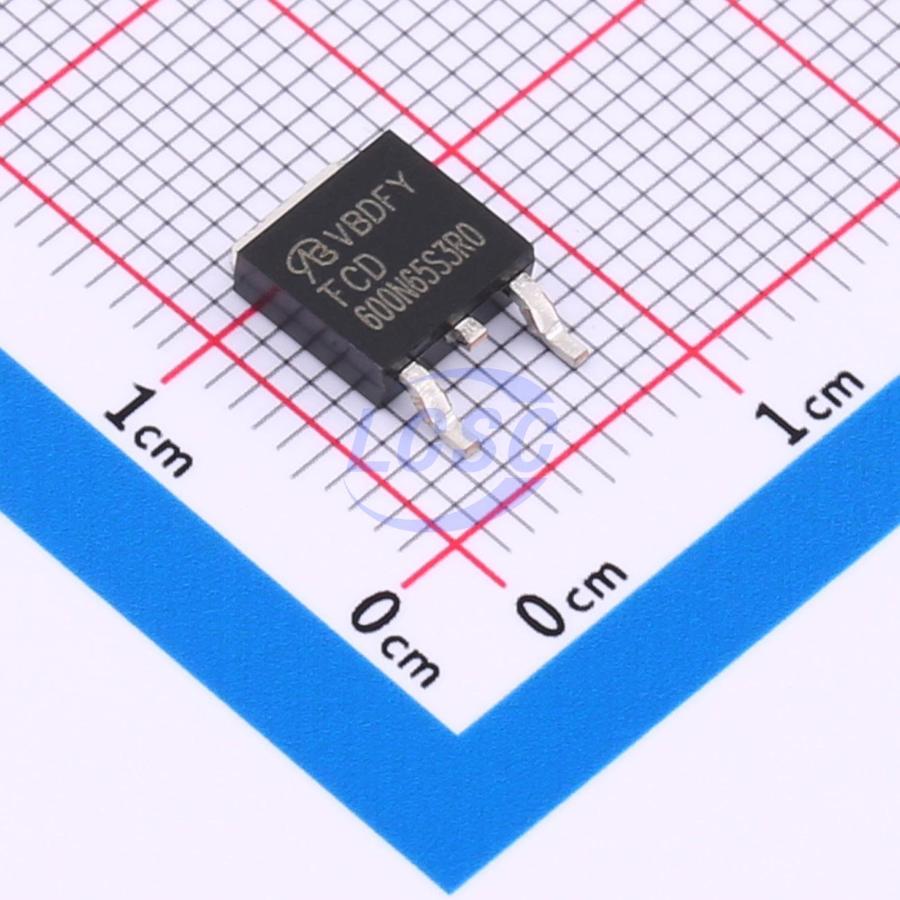

FCD600N65S3R0-VB
N-Channel 700V 8A 180W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 700V 8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FCD600N65S3R0-VB
- Store part #
- C22357298
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357298
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.82 | ₹154.82 |
| 10+ | ₹127.93 | ₹1,279.30 |
| 30+ | ₹113.22 | ₹3,396.60 |
| 100+ | ₹96.63 | ₹9,663.00 |
| 500+ | ₹89.28 | ₹44,640.00 |
| 1,000+ | ₹85.92 | ₹85,920.00 |
1 × ₹154.82
₹154.82
excl. GST
₹182.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FCD600N65S3R0-VB
₹154.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 51pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 2.3nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 51pF
- RDS(on)
- 560mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 205nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.86 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (PV inverters)
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
