VBsemi ElecDatasheet (PDF)

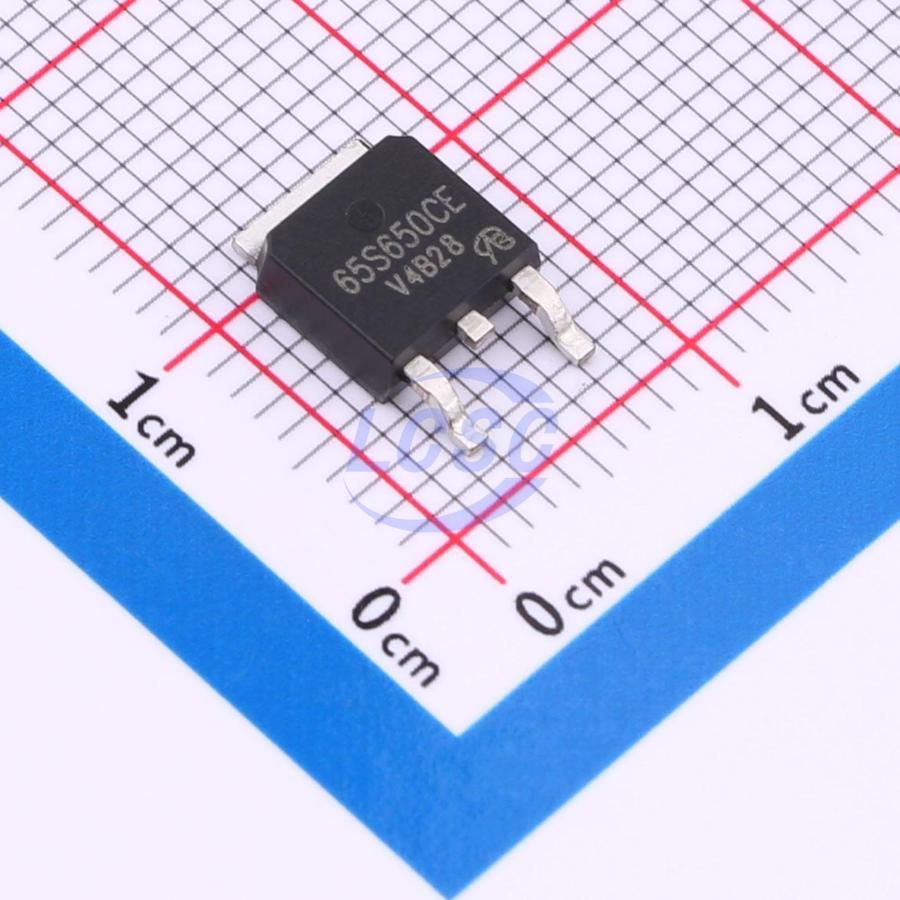

IPD65R650CE-VB
N-Channel 650V 8A 180W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 650V 8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPD65R650CE-VB
- Store part #
- C22357266
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357266
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.00 | ₹142.00 |
| 10+ | ₹117.43 | ₹1,174.30 |
| 30+ | ₹103.99 | ₹3,119.70 |
| 100+ | ₹88.65 | ₹8,865.00 |
| 500+ | ₹81.92 | ₹40,960.00 |
| 1,000+ | ₹78.98 | ₹78,980.00 |
1 × ₹142.00
₹142.00
excl. GST
₹167.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD65R650CE-VB
₹142.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 51pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 2.3nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 51pF
- RDS(on)
- 560mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 205nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.88 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (PV inverters)
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD8N65M5-VB#C22357267VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹142.00 · 3 in stock | View |
 | VBE165R08S#C22357388VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹142.00 · 5 in stock | View |
 | SiHD6N65E-VB#C22357297VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹131.92 · 5 in stock | View |
 | FCD600N65S3R0-VB#C22357298VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹154.82 · 5 in stock | View |
 | TK9P65W-VB#C22357268VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹142.00 · 5 in stock | View |
