onsemiDatasheet (PDF)

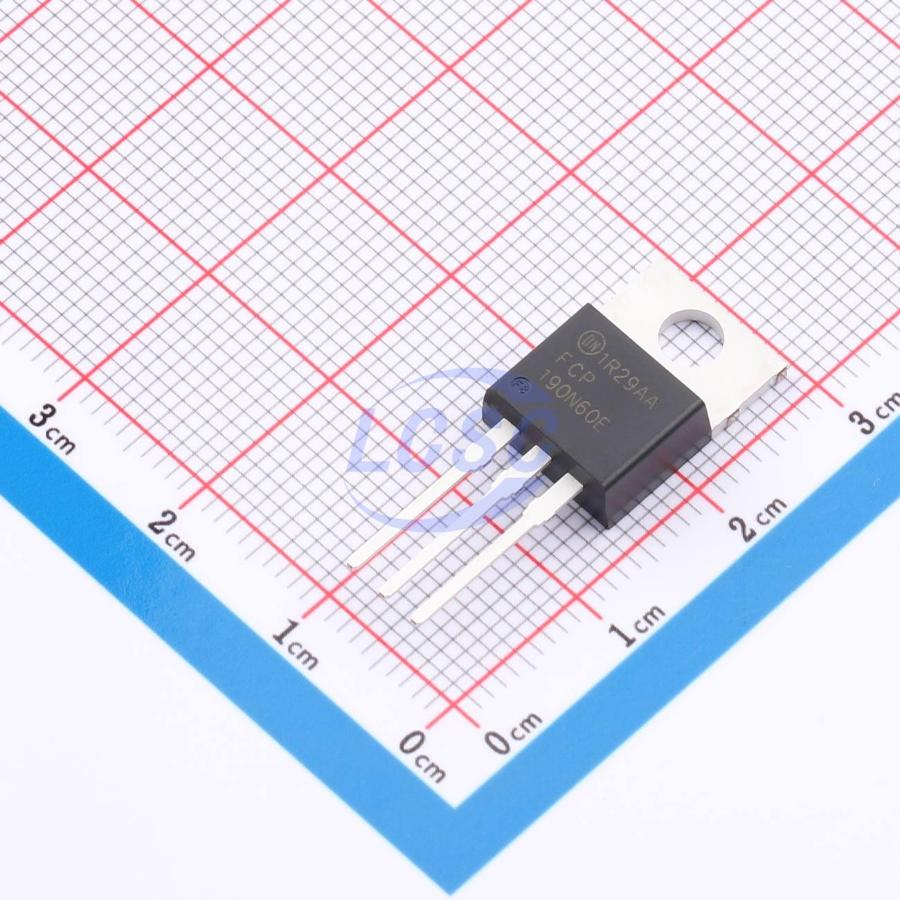

FCP190N60E
208W 600V 20.6A 190mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs
TO-220-3RoHSActive
- Manufacturer
- onsemi
- Manufacturer part #
- FCP190N60E
- Store part #
- C179567
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C179567
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹891.78 | ₹891.78 |
| 10+ | ₹876.74 | ₹8,767.40 |
| 30+ | ₹866.86 | ₹26,005.80 |
| 100+ | ₹856.96 | ₹85,696.00 |
1 × ₹891.78
₹891.78
excl. GST
₹1,052.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per tube
FCP190N60E
₹891.78 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.396nF
- Ciss-Input Capacitance
- 3.175nF
- Pd - Power Dissipation
- 208W
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20.6A
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 800 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.43 g
Overview
Applications
- LCD / LED / PDP TV lighting
- Solar inverters
- AC-DC power supplies
Key features
- 650 V @ TJ = 150°C
- Typical RDS(on) = 160 mΩ
- Ultra-low gate charge (typical Qg = 63 nC)
- Low effective output capacitance (typical Coss(eff.) = 178 pF)
- 100% avalanche tested
- Integrated gate resistor
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP20N60C3#C672089Infineon · TO-220 | Infineon | TO-220 | 658 | ₹274.55 · 658 in stock | View |
 | SPP20N65C3#C539314Infineon · TO-220 | Infineon | TO-220 | 10 | ₹1,264.62 · 10 in stock | View |
 | SPP20N60C3-VB#C7568837VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 46 | ₹440.61 · 46 in stock | View |
 | FCP165N60E#C898513onsemi · TO-220 | onsemi | TO-220 | 417 | ₹172.02 · 417 in stock | View |
 | SP25HF65TQ#C49257236Siliup · TO-220-3L | Siliup | TO-220-3L | 176 | ₹173.96 · 176 in stock | View |
