MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

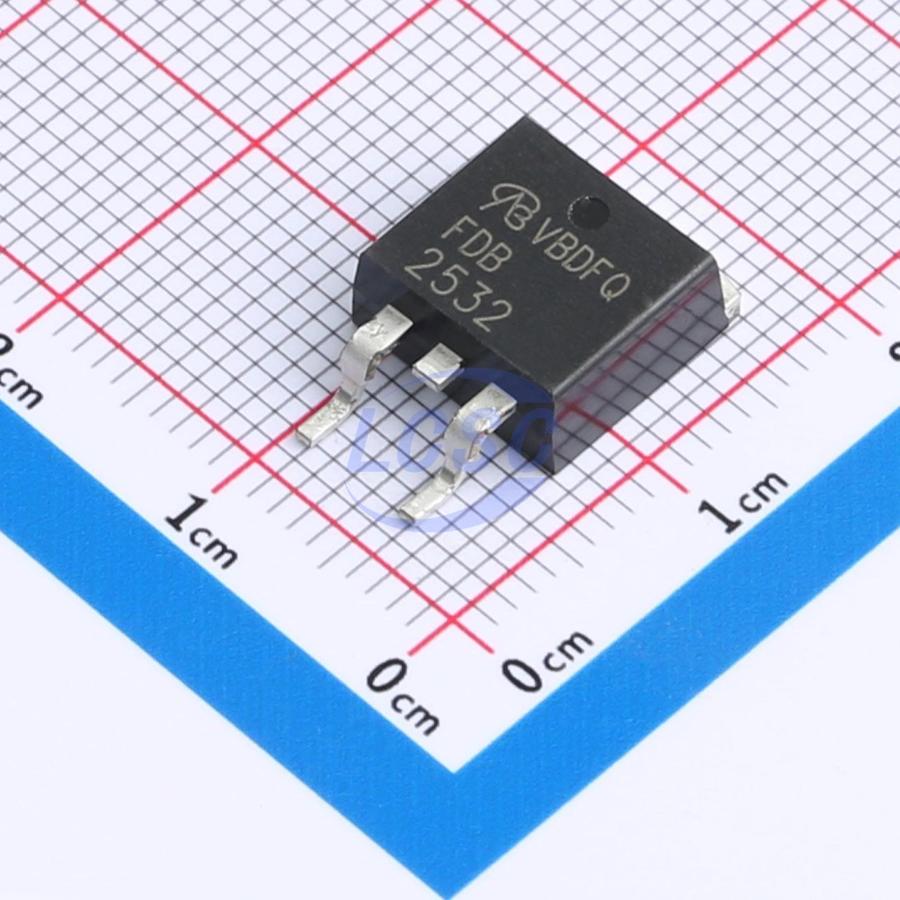

FDB2532-VB
N-Channel 150V 80A 378W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET N-CH 150V 80A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDB2532-VB
- Store part #
- C7569087
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C7569087
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.34 | ₹250.34 |
| 10+ | ₹211.87 | ₹2,118.70 |
| 30+ | ₹187.75 | ₹5,632.50 |
| 100+ | ₹163.19 | ₹16,319.00 |
| 500+ | ₹151.89 | ₹75,945.00 |
| 1,000+ | ₹147.12 | ₹1,47,120.00 |
1 × ₹250.34
₹250.34
excl. GST
₹295.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FDB2532-VB
₹250.34 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 535pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 4.5nF
- Pd - Power Dissipation
- 378W
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 15mΩ@10V;17mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.3 g
Overview
Applications
- Power:
- Uninterruptible power supplies
- AC/DC switch mode power supplies
- Lighting
- Synchronous rectification
- DC/DC converters
- Motor drive switching
- DC/AC inverters
- Solar micro-inverters
- Class D audio amplifiers
- Battery management
Key features
- Thunder Power MOSFET
- Maximum junction temperature 175 °C
- 100% Rg and UIS tested
- Material classification: RoHS compliant, halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB200N15N3G-VB#C20755359VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 15 | ₹332.60 · 15 in stock | View |
 | SQM85N15-19-GE3-VB#C19711287VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 4 | ₹295.41 · 4 in stock | View |
 | FDB082N15A-VB#C47993931VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹340.04 · 10 in stock | View |
 | IRFS4115PBF-VB#C7494543VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹290.36 · 50 in stock | View |
 | IRFS4321PBF-VB#C7569027VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 8 | ₹332.60 · 8 in stock | View |
