VBsemi ElecDatasheet (PDF)

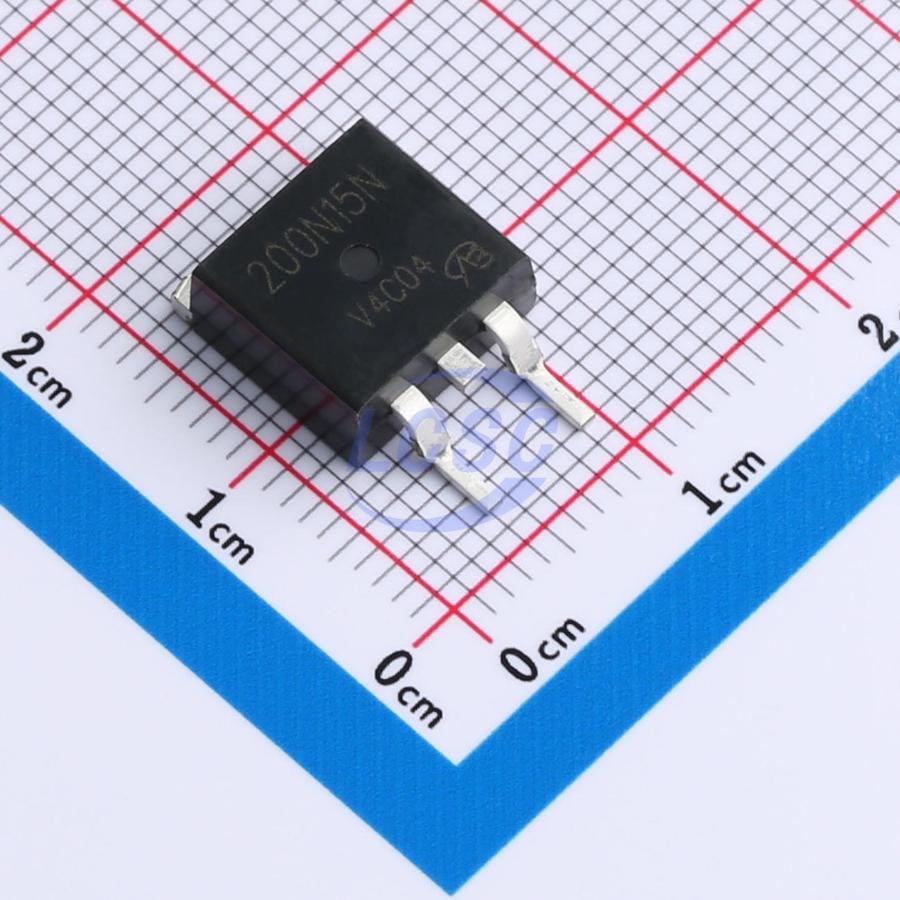

IPB200N15N3G-VB
N-Channel 150V 75A 375W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 150V 75A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPB200N15N3G-VB
- Store part #
- C20755359
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C20755359
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹332.60 | ₹332.60 |
| 10+ | ₹294.50 | ₹2,945.00 |
| 50+ | ₹220.01 | ₹11,000.50 |
| 100+ | ₹195.47 | ₹19,547.00 |
| 500+ | ₹184.49 | ₹92,245.00 |
| 1,000+ | ₹179.76 | ₹1,79,760.00 |
1 × ₹332.60
₹332.60
excl. GST
₹392.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPB200N15N3G-VB
₹332.60 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 535pF
- Current - Continuous Drain(Id)
- 75A
- Ciss-Input Capacitance
- 3.8nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 18mΩ@10V;21mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.9 g
Overview
Applications
- Power Supplies:
- Uninterruptible Power Supplies
- AC/DC Switching Power Supplies
- Lighting
- Synchronous Rectification
- DC/DC Converters
- Motor Drive Switches
- DC/AC Inverters
- Solar Micro-Inverters
- Class D Audio Amplifiers
- Battery Management
Key features
- Lightning power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- Material classification: RoHS compliant, halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDB2532-VB#C7569087VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 48 | ₹250.34 · 48 in stock | View |
 | AOB254L-VB#C879060VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 152 | ₹249.88 · 152 in stock | View |
 | SQM85N15-19-GE3-VB#C19711287VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 4 | ₹295.41 · 4 in stock | View |
 | FDB082N15A-VB#C47993931VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹340.04 · 10 in stock | View |
 | IRFS4115PBF-VB#C7494543VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹290.36 · 50 in stock | View |
