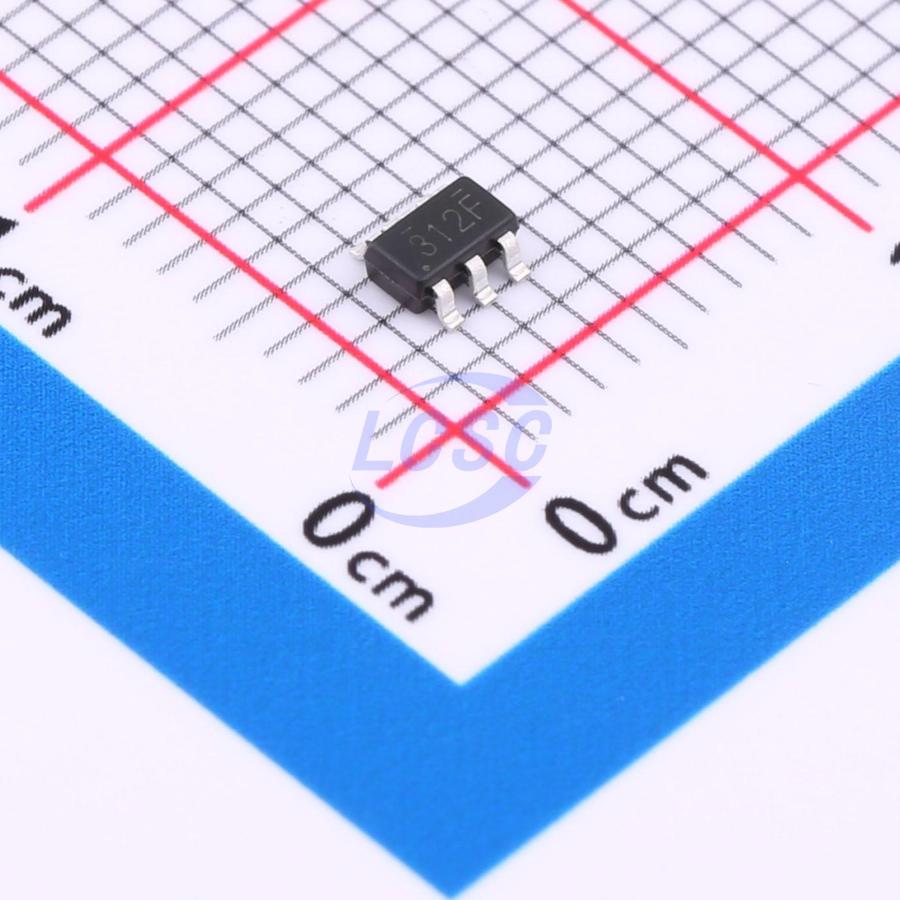

FDC6312P
P-Channel 20V 3A 1.1W Surface Mount SOT-23-6L
SOT-23-6LRoHSActive
MOSFET P-CH ARR 20V 3A SOT-23-6L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDC6312P
- Store part #
- C7472916
- Package / case
- SOT-23-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,590 in stock
#C7472916
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.27 | ₹86.35 |
| 50+ | ₹13.83 | ₹691.50 |
| 150+ | ₹12.11 | ₹1,816.50 |
| 500+ | ₹10.82 | ₹5,410.00 |
| 3,000+ | ₹9.79 | ₹29,370.00 |
| 6,000+ | ₹9.27 | ₹55,620.00 |
5 × ₹17.27
₹86.35
excl. GST
₹101.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC6312P
₹86.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 3A
- Ciss-Input Capacitance
- 300pF
- Pd - Power Dissipation
- 1.1W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 85mΩ@4.5V;120mΩ@2.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Applications
- PWM applications
- Power management
Key features
- VDS = -20V, ID = -3A
- RDS(ON) = 120mΩ (typ.) at VGS = -2.5V
- RDS(ON) = 85mΩ (typ.) at VGS = -4.5V
- High power and current handling capability
- RoHS compliant
- Surface mount package
