TECH PUBLICDatasheet (PDF)

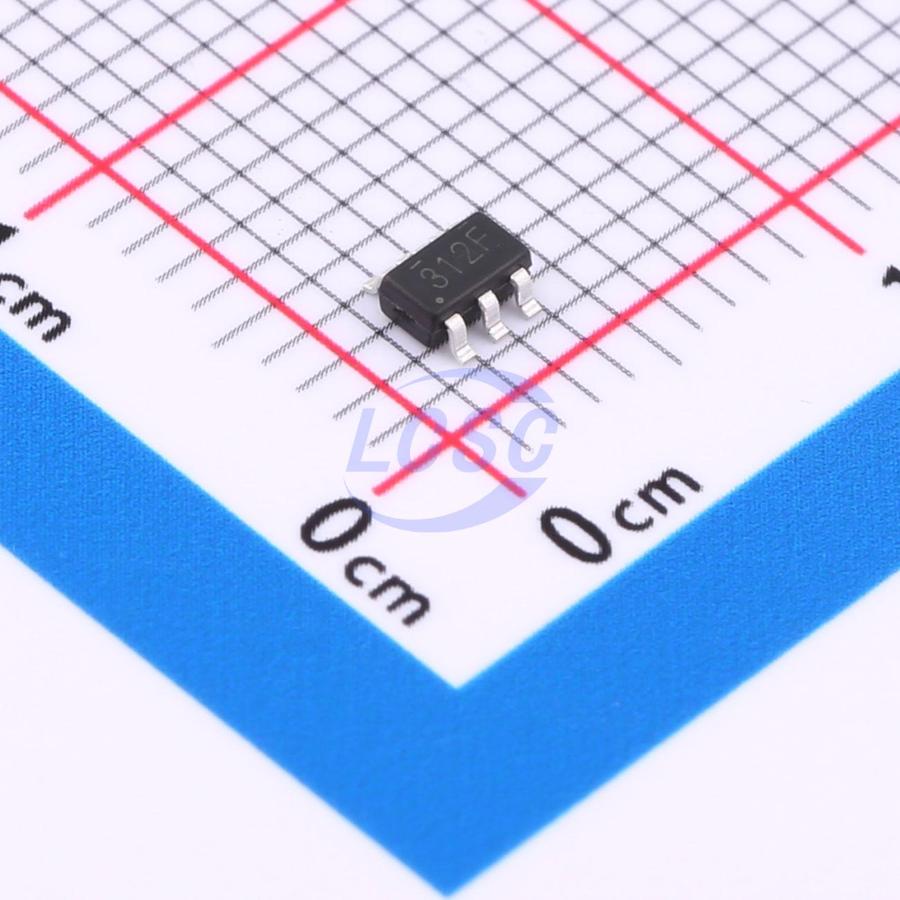

FDC6318P
P-Channel 20V 3A 1.1W Surface Mount SOT-23-6
SOT-23-6RoHSActive
MOSFET P-CH ARR 20V 3A SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDC6318P
- Store part #
- C7472919
- Package / case
- SOT-23-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,590 in stock
#C7472919
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.41 | ₹82.05 |
| 50+ | ₹12.97 | ₹648.50 |
| 150+ | ₹11.25 | ₹1,687.50 |
| 500+ | ₹9.96 | ₹4,980.00 |
| 3,000+ | ₹8.93 | ₹26,790.00 |
| 6,000+ | ₹8.41 | ₹50,460.00 |
5 × ₹16.41
₹82.05
excl. GST
₹96.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC6318P
₹82.05 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 3A
- Ciss-Input Capacitance
- 300pF
- Pd - Power Dissipation
- 1.1W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 85mΩ@4.5V;120mΩ@2.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Applications
- PWM applications
- Power management
Key features
- Drain-to-Source Voltage (VDS) = -20V, Drain Current (ID) = -3A
- RDS(ON) = 120mΩ (typ.) at VGS = -2.5V
- RDS(ON) = 85mΩ (typ.) at VGS = -4.5V
- High power and current handling capability
- Lead-free compliant
- SMT package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDC6312P#C7472916TECH PUBLIC · SOT-23-6L | TECH PUBLIC | SOT-23-6L | 2,590 | ₹17.27 · 2,590 in stock | View |
 | TPM20PB3S6#C7472920TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,875 | ₹11.84 · 2,875 in stock | View |
 | TPM20PB3S6-1#C7472921TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,945 | ₹12.04 · 2,945 in stock | View |
 | FDC6308P#C7472915TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,000 | ₹18.99 · 3,000 in stock | View |
 | FDC6310P#C7472917TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,640 | ₹16.14 · 2,640 in stock | View |
