onsemiDatasheet (PDF)

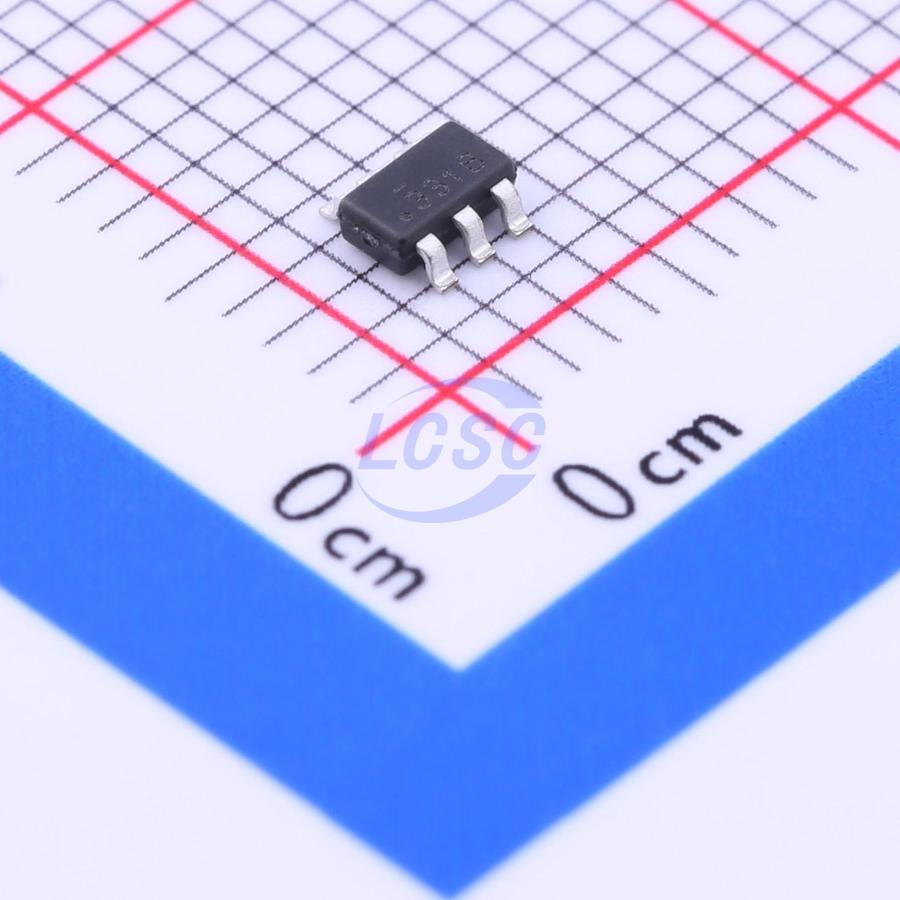

FDC6331L
1 2.8A Active High Load Switch SuperSOT-6 Power Distribution Switches, Load Drivers RoHS
SuperSOT-6ROHS3 CompliantActive
Integrated Load Switch
- Manufacturer
- onsemi
- Manufacturer part #
- FDC6331L
- Store part #
- C11137
- Package / case
- SuperSOT-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,530 in stock
#C11137
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.97 | ₹189.85 |
| 50+ | ₹30.10 | ₹1,505.00 |
| 150+ | ₹26.71 | ₹4,006.50 |
| 500+ | ₹20.51 | ₹10,255.00 |
| 3,000+ | ₹18.63 | ₹55,890.00 |
| 6,000+ | ₹17.50 | ₹1,05,000.00 |
5 × ₹37.97
₹189.85
excl. GST
₹224.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC6331L
₹189.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- number of channels
- 1
- Maximum Continuous Current
- 2.8A
- Control Input Logic
- Active High
- RDS(on)
- 34mΩ
- Operating Voltage
- 2.5V~8V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
This device is particularly suited for compact power management in portable electronic equipment where 2.5V to 8V input and 2.8A output current capability are needed. This load switch integrates a small N-Channel power MOSFET (Q1) that drives a large P-Channel power MOSFET (Q2) in one tiny SuperSOT-6 package.
Applications
- Load switch
- Power management
Key features
- –2.8 A, -8V
- RDS(ON)=55 mΩ @ VSS=-4.5 V
- RDS(ON)=70 mΩ @ VSS=-2.5 V
- RDS(ON)=100 mΩ @ VSS=-1.8 V
- Control MOSFET (Q1) includes Zener protection for ESD ruggedness (>6KV Human body model)
- High performance trench technology for extremely low RDS(ON)
