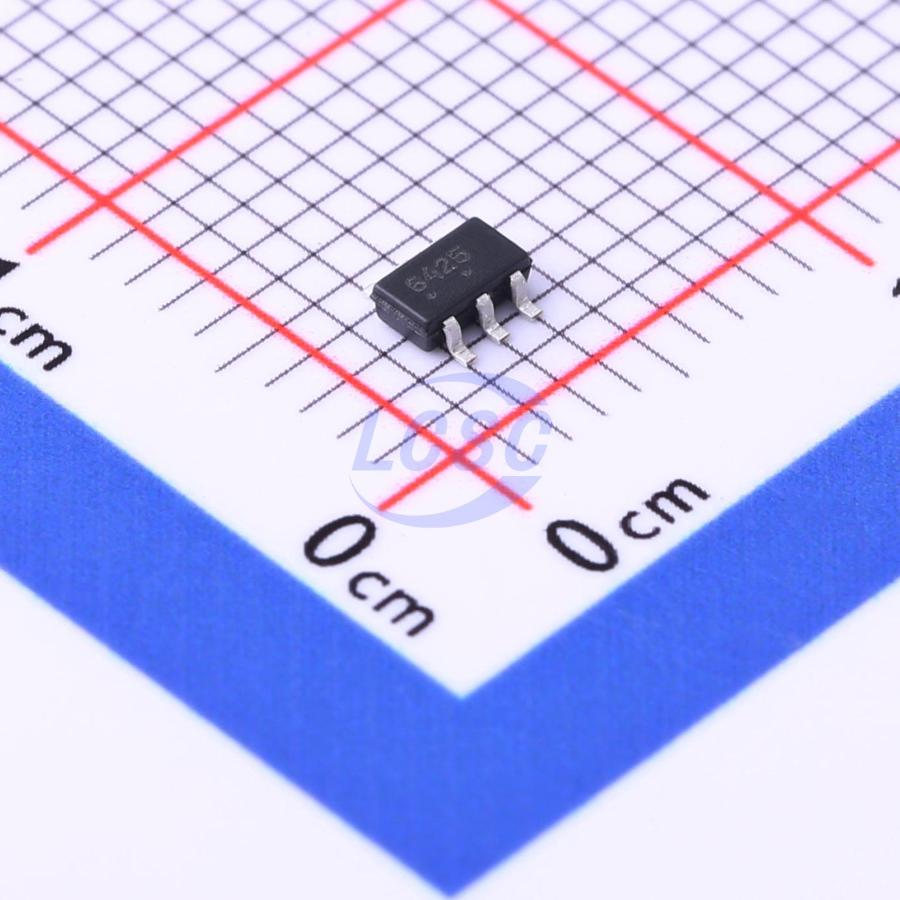

FDC642P
P-Channel 20V 4A 1.6W Surface Mount SSOT-6
SSOT-6ROHS3 CompliantActive
MOSFET P-CH 20V 4A SSOT-6
- Manufacturer
- onsemi
- Manufacturer part #
- FDC642P
- Store part #
- C890875
- Package / case
- SSOT-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C890875
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.44 | ₹63.44 |
| 10+ | ₹49.03 | ₹490.30 |
| 30+ | ₹43.01 | ₹1,290.30 |
| 100+ | ₹35.27 | ₹3,527.00 |
| 500+ | ₹31.83 | ₹15,915.00 |
| 1,000+ | ₹29.90 | ₹29,900.00 |
1 × ₹63.44
₹63.44
excl. GST
₹74.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC642P
₹63.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 110pF
- Ciss-Input Capacitance
- 925pF
- Pd - Power Dissipation
- 1.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 65mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
This P-Channel 2.5V specified MOSFET is produced using ON Semicondcutor's advanced PowerTrench? process that has been especially tailored to minimize on-state resistance and yet maintain low gate charge for superior switching performance. These devices have been designed to offer exceptional power dissipation in a very small footprint for applications where the larger packages are impractical.
Applications
- Load switch
- Battery protection
- Power management
Key features
- Max rDS(on) = 65 mΩ at VGS = -4.5 V, ID = -4.0 A
- Max rDS(on) = 100 mΩ at VGS = -2.5 V, ID = -3.2 A
- Fast switching speed
- Low gate charge (11 nC typical)
- High performance trench technology for extremely low rDS(on)
- SuperSOTTM - 6 package: small footprint (72% smaller than standard SO - 8); low profile (1 mm thick)
- Termination lead - free and RoHS Compliant
